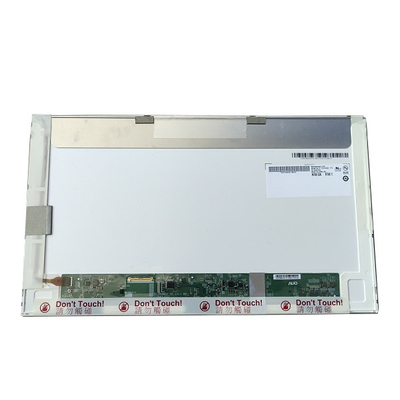

AUO 15.6 Inch Laptop LCD Panel B156HW01 V6 1920*1080 FHD 141PPI 262K 60% NTSC
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HW01 V6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156HW01 V6 | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080, FHD, 141PPI | Active Area(mm): | 344.16(W)×193.59(H) Mm |
| Brightness (cd/m²): | 220 Cd/m2 (Typ.) | Viewing Angle: | 70/70/60/60 (Typ.) (CR≥10) |
| Display Colors: | 262K , 60% NTSC | Used For: | Laptop |
| High Light: | 262K 15.6 inch laptop lcd panel,LVDS 15.6 inch laptop lcd panel,B156HW01 V6 LCD Laptop Screen |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HW01 V6 1920*1080 141PPI
LTI550HN16 Product details :
| AUO LCD Screen B156HW01 V6 | |
| Panel Brand | AUO |
| Panel Model | B156HW01 V6 |
| screen size | 15.6inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 1920(RGB)×1080 [FHD] 141PPI |
| Pixel configuration | RGB vertical bars |
| Display size | 344.16 X 193.59(mm) |
| Brightness (cd/m²) | 220 cd/m2 (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| responding speed | 8(Typ.)(g to g) ms |
| display mode | AHVA, Normally Black, Transmissive |
| Number of colors | 262K , 60% NTSC |
| Response Time | 8 (Typ.)(Tr+Td) |
| Backlight type | WLED , 15K hours, with LED driver |
| refresh rate | 60Hz |
| screen weight | 470g (Max.) |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| signal system | LVDS (2 ch, 6-bit) |
| Supply voltage | 3.3v (Typ.) |
| maximum rating | Operating Temp.: 0 ~ 50°c; Storage Temp.: -20 ~ 60°c |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HW01 V6 1920*1080 141PPI | |
Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
Dispatch
1. Goods will be sent only after payment has been received.
2. DHL UPS Fedex or SME Consultative Committee is available for transportation.
3. For special items, airmail from P.O. Box, China / P.O. Box, Hong Kong is exempt. When you choose the shipping method, please ask our seller to change the total load of special products.
4. Delivery time:
DHL, UPS, FedEx, EMS express usually takes 3-10 working days, China Post Office / HK express usually takes 7-35 days, AliExpress Standard Shipping usually takes 90 Within 90 days ,depending on the country of delivery. In rare cases, the customs clearance office will extend the delivery time, please be patient.
5. Any accident, delay or other problem is the responsibility of the transport department.
6. Import duties or expenses are the responsibility of the buyer.
7. Please check your address carefully when processing the command.
8. If you find any mistakes, Please contact our customer service immediately.
LTI550HN16 TIPS:
1. It's necessary and important to shoot a video when you unpack the package, and it will be a valid evidence when you receive damaged lcds.
2.Please test it before your installation. (Remember!!!)
3.If you are not good at replacing the LCD, please do it by a professional person or repair shop.
4.LCD is Fragile and easily broken or work unproperly by installation mistakes.
5.We test 3 times before shippment,If you can't provide the video,we couldn't believe it is.We are not responsible for any installation mistakes.
6.If item is defective after geting porducts, you can still send it back to us. We will send you a new one after receiving the defective item.
But you have to make sure the screen on good condition of sure face.
Guarantee:
Quality assurance is always. If you are disappointed in goods, they will tell us to deliver the goods within 7 days. These items must be returned in the original country of return / change. You have transportation on you We understand your possible disappointment, please contact us before beginning any conflict or abandoning any neutral / negative recovery. Let's build on each buyer's foundation, and we will strive to solve any problem in a good business way. You satisfaction will always be our first priority.
Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
LTI550HN16 FAQ:
Q: How can I trace my order of B156HW01 V6 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of B156HW01 V6 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of B156HW01 V6 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods B156HW01 V6 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
