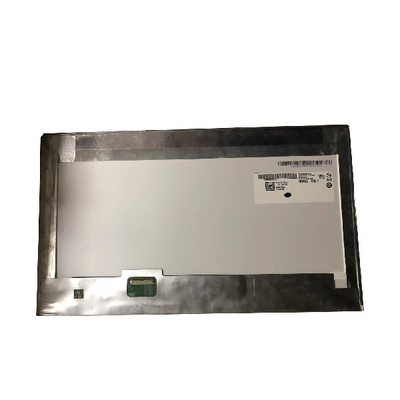

AUO B156HW02 V3 15.6 Inch LCD Panel 1920*1080 40pins TN Normally White Transmissive
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HW02 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156HW02 V3 | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080, FHD, 141PPI | Active Area(mm): | 344.16(W)×193.59(H) Mm |
| Outline(mm): | 359.3(W)×209.5(H)×5.7(D) Mm | Viewing Angle: | 70/70/60/60 (Typ.) (CR≥10) |
| Display Colors: | 262K , 60% NTSC | Used For: | Laptop |
| High Light: | 15.6 inch lcd panel 1920*1080,40pins 15.6 inch LCD panel,B156HW02 V3 LCD Laptop Screen |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HW02 V3 1920*1080 40pins
LTI550HN16 Product details :
| AUO LCD SCREEN B156HW02 V3 | |
| Panel Brand | AUO |
| Panel Model | B156HW02 V3 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB vertical bars |
| Display Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | 347.16(W)×196.59(H) mm |
| Outline Size | 359.3(W)×209.5(H)×5.7(D) mm |
| Surface | Specular (Haze 0%), Hard coating (3H), Reflectivity 5.0% (Max.) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td); ms |
| Display Colors | 262K , 60% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Designed For | Laptop |
| Frequency | 60Hz |
| Touch Screen | Without |
| Signal Interface | LVDS (2 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HW02 V3 1920*1080 40pins | |
