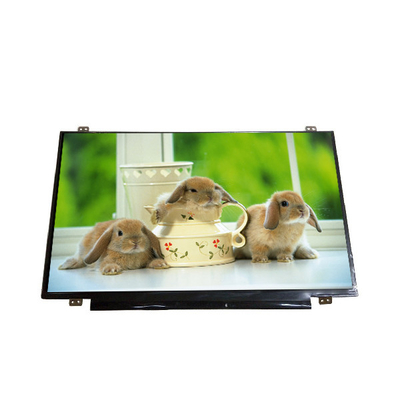

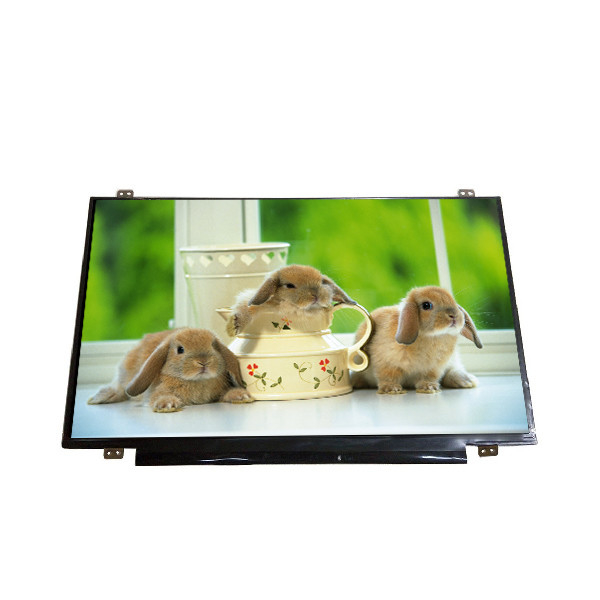

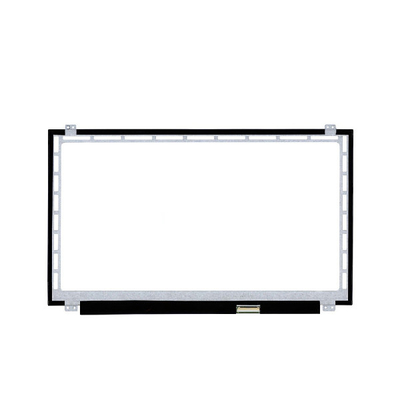

AUO B156XW04 V0 15.6 Inch Laptop LCD Panel 1366*768 100PPI Matte
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156XW03 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156XW04 V0 | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1366(RGB)×768, WXGA, 100PPI | Active Area(mm): | 344.232 × 193.536 Mm (H×V) |
| Outline(mm): | 359.5 × 223.8 × 3.8 Mm (H×V×D) | Viewing Angle: | 45/45/15/35 (Min.)(CR≥10 |
| Display Colors: | 262K , 45% NTSC | Used For: | Laptop |
| High Light: | Matte 15.6 inch laptop lcd panel,15.6 inch laptop lcd panel 100PPI,AUO 15.6 inch laptop screen 40 pin |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156XW04 V0 1366*768 100PPI
LTI550HN16 Product details :
| AUO LCD SCREEN B156XW04 V0 | |
| Panel Brand | AUO |
| Panel Model | B156XW04 V0 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 100PPI |
| Pixel Format | RGB vertical bars |
| Display Area | 344.232 × 193.536 mm (H×V) |
| Bezel Opening | 346.23 × 195.54 mm (H×V) |
| Outline Size | 359.5 × 223.8 × 3.8 mm (H×V×D) |
| Surface | Matte, Hard coating (3H) |
| Brightness | 200 cd/m² (Typ. |
| Contrast Ratio | 500:1 (Typ.) (Transmission) |
| Viewing Angle | 45/45/15/35 (Min.)(CR≥10 |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 12K hours, with LED driver |
| Frequency | 60Hz |
| Form Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Designed For | Laptop |
| Touch Screen | Without |
| Signal Interface | 40 pins LVDS (1 ch, 6-bit) , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156XW04 V0 1366*768 100PPI | |
Attention:
Before placing an order for purchase, the buyer must confirm the screen model needs.
If you are not sure about the model of the screen, please contact us at the first time.
We will distinguish and prevent you from buying the wrong screen.
If the buyer's mistake let screen make the screen unusable, all the freight incurred shall be borne by the buyer.
LTI550HN16 Berfore you order :
Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model number and photos of your original screen;
Usually the led panel we send will be a compatible model number, it might not exactly the same as model of your original screen .But we can make sure it will fit for the model 100%. All the item will be tested before shipment,
Your satisfaction is our goal!
About Shipping:
We will test them strictly before shipping.
We will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
LTI550HN16 TIPS:
1. It's necessary and important to shoot a video when you unpack the package, and it will be a valid evidence when you receive damaged lcds.
2.Please test it before your installation. (Remember!!!)
3.If you are not good at replacing the LCD, please do it by a professional person or repair shop.
4.LCD is Fragile and easily broken or work unproperly by installation mistakes.
5.We test 3 times before shippment,If you can't provide the video,we couldn't believe it is.We are not responsible for any installation mistakes.
6.If item is defective after geting porducts, you can still send it back to us. We will send you a new one after receiving the defective item.
But you have to make sure the screen on good condition of sure face.
Feedback:
Feedback is very important to us.We strive for 100% customer satisfaction.
If you are not satisfied with my product, please contact me.
Negative feedback won’t make a pleasant transaction,let’s figure out a solution together to make a good seller and a happy buyer.
Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
LTI550HN16 FAQ:
Q: How can I trace my order of B156XW04 V0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of B156XW04 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of B156XW04 V0 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of B156XW04 V0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
LTI550HN16 Shipping and Package :
