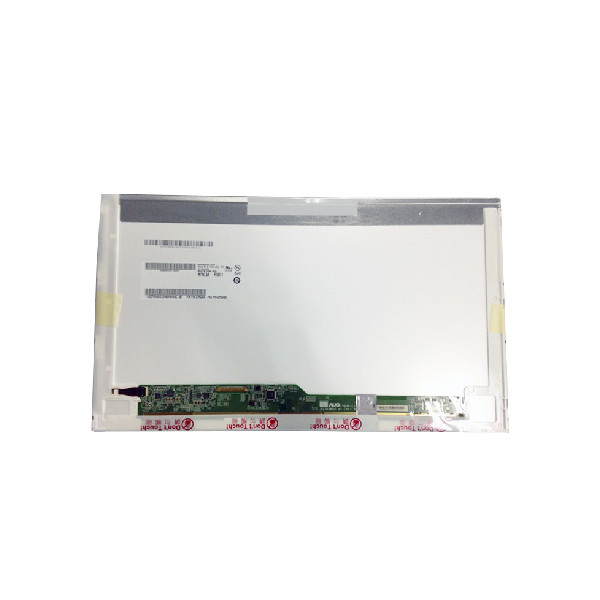

AUO B156XW02 V3 15.6 Inch 40 Pin Laptop Screen 1366*768 WXGA 100PPI Antiglare
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156XW02 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156XW02 V3 | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1366(RGB)×768, WXGA, 100PPI | Active Area(mm): | 344.232 × 193.536 Mm (H×V) |
| Outline(mm): | 359.3 × 209.5 × 5.5 Mm (H×V×D) | Viewing Angle: | 45/45/15/35 (Min.)(CR≥10 |
| Display Colors: | 262K , 60% NTSC | Used For: | Laptop |
| High Light: | WXGA 15.6 inch 40 pin laptop screen,Antiglare 15.6 inch 40 pin laptop screen,B156XW02 V3 LCD Laptop Screen |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156XW02 V3 1366*768 100PPI
LTI550HN16 Product details :
| AUO LCD SCREEN B156XW02 V3 | |
| Panel Brand | AUO |
| Panel Model | B156XW02 V3 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 100PPI |
| Pixel Format | RGB vertical bars |
| Display Area | 344.232 × 193.536 mm (H×V) |
| Bezel Opening | 347.95 × 196.94 mm (H×V) |
| Outline Size | 359.3 × 209.5 × 5.5 mm (H×V×D) |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 200 cd/m² (Typ. |
| Contrast Ratio | 400:1 (Typ.) (Transmission) |
| View Direction | 6 o'clock |
| Viewing Angle | 45/45/15/35 (Min.)(CR≥10 |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 6/2 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 60% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Frequency | 60Hz |
| Touch Screen | Without |
| Designed For | Laptop |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156XW02 V3 1366*768 100PPI | |
LTI550HN16 Advantages about us:
1. The LCD screens you buy are all 100% original authentic.
2. Our goods inventory is very sufficient and shipped within 48 hours.
3. Our packaging is professionally customized and very safe! Each package will have a fragile label
4. Product grade provides A grade (perfect)
5. We provide professional after-sales service, serve customers 24 hours a day, and provide a 90-day warranty (calculated from the time the goods arrive at the destination)
LTI550HN16 Berfore you order :
Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model number and photos of your original screen;
Usually the led panel we send will be a compatible model number, it might not exactly the same as model of your original screen .But we can make sure it will fit for the model 100%. All the item will be tested before shipment,
Your satisfaction is our goal!
About Shipping:
We will test them strictly before shipping.
We will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
LTI550HN16 TIPS:
1. It's necessary and important to shoot a video when you unpack the package, and it will be a valid evidence when you receive damaged lcds.
2.Please test it before your installation. (Remember!!!)
3.If you are not good at replacing the LCD, please do it by a professional person or repair shop.
4.LCD is Fragile and easily broken or work unproperly by installation mistakes.
5.We test 3 times before shippment,If you can't provide the video,we couldn't believe it is.We are not responsible for any installation mistakes.
6.If item is defective after geting porducts, you can still send it back to us. We will send you a new one after receiving the defective item.
But you have to make sure the screen on good condition of sure face.
LTI550HN16 FAQ:
Q: If I place order now,when will you ship the goods of B156XW02 V3 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of B156XW02 V3 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of B156XW02 V3 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of B156XW02 V3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
LTI550HN16 Shipping and Package :
