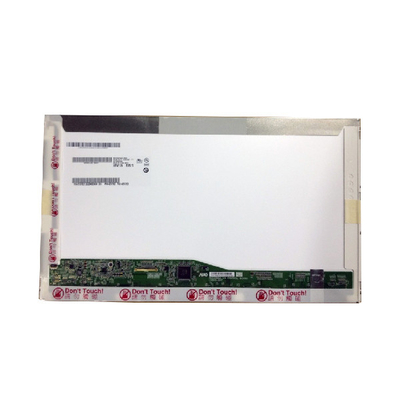

AUO B156RW01 V1 15.6 Inch LCD Panel HW1A 1920*1080 FHD 141PPI
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156RW01 V1 HW1A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156RW01 V1 HW1A | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Display Area: | 344.16(W)×193.59(H) Mm |
| Outline Dim.: | 359.3(W)×209.5(H)×5.7(D) Mm | Viewing Angle: | 70/70/60/60 (Typ.) (CR≥10) |
| Number Of Colors: | 262K , 60% NTSC | Designed For: | Laptop |
| High Light: | FHD 15.6 inch LCD panel,B156RW01 V1 15.6 inch LCD panel |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156RW01 V1 HW1A 1920*1080 141PPI
B156RW01 V1 HW1A Product details :
| AUO LCD SCREEN B156RW01 V1 HW1A | |
| Panel Brand | AUO |
| Panel Model | B156RW01 V1 HW1A |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16 × 193.59 mm (H×V) |
| Bezel Opening | 347.2 × 196.5 mm (H×V) |
| Outline Size | 359.3 × 209.5 × 5.7mm (H×V×D |
| Surface | Matte, Hard coating (3H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 2/6 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 60% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Designed For | Laptop |
| Signal Interface | LVDS (2 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156RW01 V1 HW1A 1920*1080 141PPI | |
