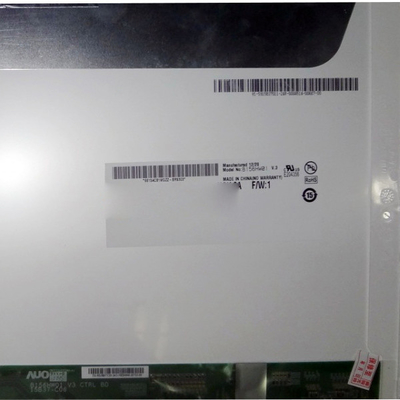

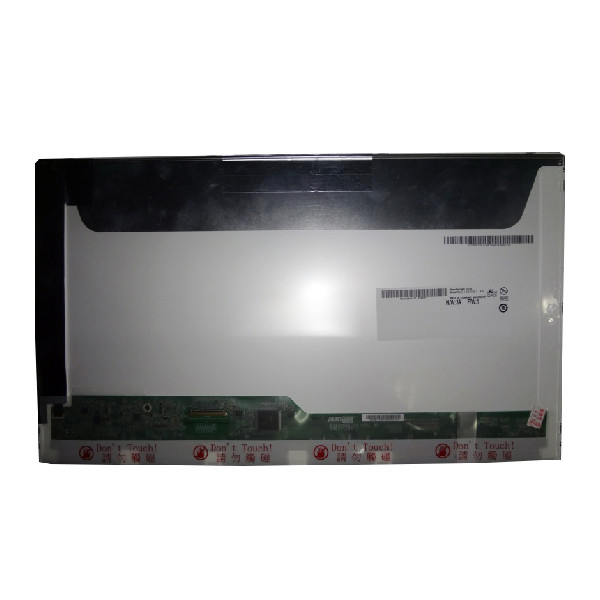

AUO B156HW01 V3 15.6 Inch LCD Panel 1920*1080 40 Pins LCD Laptop Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HW01 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156HW01 V3 | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Display Area: | 344.16(W)×193.59(H) Mm |
| Outline Dim.: | 359.3(W)×209.5(H)×5.7(D) Mm | Viewing Angle: | 70/70/60/60 (Typ.) (CR≥10) |
| Number Of Colors: | 262K , 60% NTSC | Designed For: | Laptop |
| High Light: | 15.6 inch LCD panel 1920*1080,40 pins 15.6 inch LCD panel,B156HW01 V3 LCD Laptop Screen |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HW01 V3 1920*1080 40 pins
B156HW01 V3 Product details :
| AUO LCD SCREEN B156HW01 V3 | |
| Panel Brand | AUO |
| Panel Model | B156HW01 V3 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | 347.16(W)×196.59(H) mm |
| Outline Size | 359.3(W)×209.5(H)×5.7(D) mm |
| Surface | Antiglare |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 2/6 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 60% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Used for | Laptop |
| Frequency | 60Hz |
| Touch Screen | Without |
| Signal Interface | LVDS (2 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HW01 V3 1920*1080 40 pins | |
B156HW01 V3 About item and shipping price:
1. For products that are rarely sold or never sold, the item price may not be accurate, please contact me for the correct quote.
2. For remote countries or islands, prices may be inaccurate, high or low, please contact me for the correct quote.
B156HW01 V3 Guarantee And Return:
1. We offer guarantee for all our products.
2. Buyers will bear the shipping cost of returning defective or non-defective items.
3. Returned items must be in good condition like the one we send, not damaged.
4. Returned items are subject to approval by us, must be in the original box as shipped.
5. Damaged items received must be reported within 2 days.
6. All non-seller error returns,shipping and handling charges are non-refundable.
B156HW01 V3 Import Taxes or Duties:
1.-Import duties, taxes and other charges happened in your side are not included in the price of the item. These fees are afforded by buyer.
2.- Please check with you country's Customs office to determine what these additional costs will be before purchase.
3.-Please confirmed detailed information about delivery invoice. For example, how much price we should write on the waybill invoice, or how to describe the item, etc..
B156HW01 V3 FAQ:
Q: Can I pay my order of B156HW01 V3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of B156HW01 V3 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of B156HW01 V3 ?
A: Of course!sample order is welcome !
B156HW01 V3 Shipping and Package :
