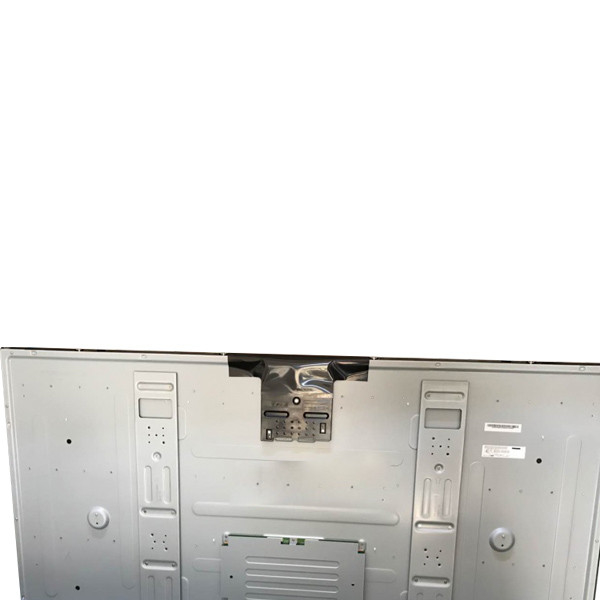

55.0 inch ips lcd display P550HVN06.0 AUO Lcd Panel Replace
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | P550HVN06.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | P550HVN06.0 | Diagonal Size: | 55 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 [FHD] 40PPI | Active Area: | 1209.6(H)×680.4(V) Mm |
| Outline Dim.: | 1242.2(H)×713(V)×56.8(D) Mm | Bezel Area: | 1215.6(H)×686.4(V) Mm |
| Weight: | 20.0Kgs (Typ.) | Designed For: | Digital Signage / Outdoor High Brightness |
| High Light: | digital signage lcd display,advertising monitors lcd,lcd menu board |
||
Product Description
55.0 inch ips lcd display P550HVN06.0 AUO Lcd Panel Replace
P550HVN06.0 Product details :
| AUO LCD SCREEN P550HVN06.0 | |
| Panel Brand | AUO |
| Panel Model | P550HVN06.0 |
| Panel Size | 55" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 40PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 1209.6(W)×680.4(H) mm |
| Bezel Opening | 1215.6(W)×686.4(H) mm |
| Outline Size | 1242.2(W)×713(H) ×56.8(D) mm |
| Surface | Reflection 1.45% (Max.) |
| Brightness | 2500 cd/m² (Typ.) |
| Contrast Ratio | 4000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Response Time | 8 (Typ.)(G to G) |
| Display Colors | 1.07B 72% NTSC |
| Lamp Type | WLED , 60K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 20.0Kgs (Typ.) |
| Signal Interface | LVDS (2 ch, 10-bit) , 51 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 55.0 inch ips lcd display P550HVN06.0 AUO Lcd Panel Replace | |
P550HVN06.0 Hello friend!
We have a very deep professional level and operational ability for screen touch and tablet accessories. Please confirm the model when purchasing or consult us before purchasing. The products are shipped after many tests and meet the standards. Please rest assured to buy.
When placing an order, please fill in the delivery address and phone number in detail, so that the logistics can be shipped quickly and delivered, and you can receive the goods faster.
It is recommended that you choose a tracking logistics method, which can facilitate you to check the logistics trajectory and receive the goods more safely and quickly.
It is recommended to ask professionals to install it after receiving the goods. We use advanced special instruments or motherboards to test accessories or components, and also use professional testing software for testing.
P550HVN06.0 Advantages about us:
1. The LCD screens you buy are all 100% original authentic.
2. Our goods inventory is very sufficient and shipped within 48 hours.
3. Our packaging is professionally customized and very safe! Each package will have a fragile label
4. Product grade provides A grade (perfect)
5. We provide professional after-sales service, serve customers 24 hours a day, and provide a 90-day warranty (calculated from the time the goods arrive at the destination)
P550HVN06.0 Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
P550HVN06.0 Shipping and Package :
P550HVN06.0 Shipping:
1.WORLDWIDE SHIPPING.(Except some countries and APO/FPO)
2. we only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3.SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
4.If you have not received your shipment within 30 days from payment, please contact us. we will trad the shipment and get bad to you as soon as possible with a reply.Our goal is customer satisfaction!
5. Due to stock status and time differences, we will choose to ship your item from our firs available warehouse for fast delivery.
P550HVN06.0 FAQ:
Q: How to order AUO P550HVN06.0 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: When will ship my order of P550HVN06.0 ?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test 55.0 inch lcd panel P550HVN06.0 before shipping ?
A: Don't Worry , Our AUO lcd P550HVN06.0 HW0A was tested ok before shipping.
Q: Can you declared low value for my order lcd pane P550HVN06.0 ?
A: Yes we can , but you need to leave message to us before shipping .
