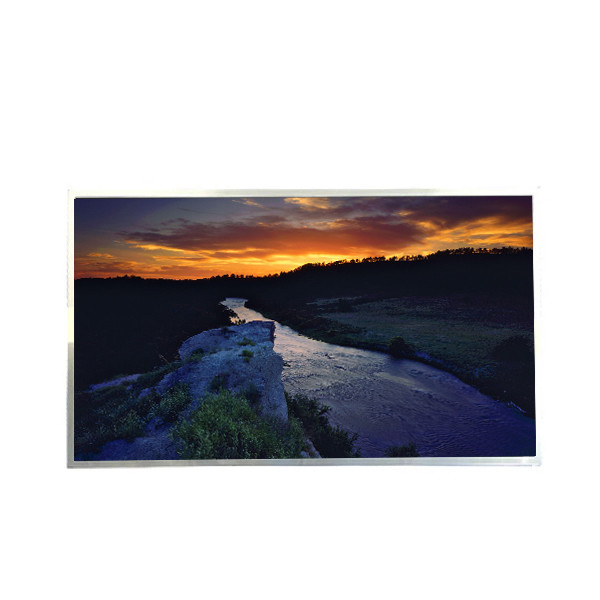

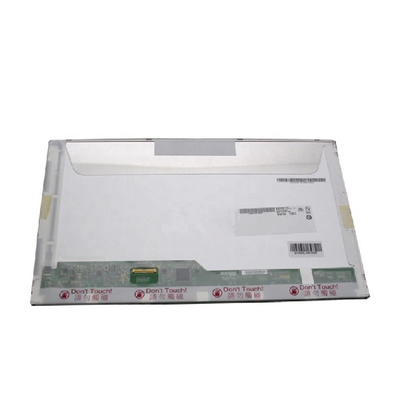

AUO B156HW01 V2 15.6 Inch Laptop LCD Panel 1920*1080 141PPI
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HW01 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156HW01 V2 | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Display Area: | 344.16(W)×193.59(H) Mm |
| Outline Dim.: | 359.3(W)×209.5(H)×5.7(D) Mm | Viewing Angle: | 70/70/60/60 (Typ.) (CR≥10) |
| Number Of Colors: | 262K , 60% NTSC | Designed For: | Laptop |
| Highlight: | B156HW01 V2 laptop LCD panel,Glare 15.6 inch laptop LCD panel,15.6 inch 40 pin laptop screen |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HW01 V2 1920*1080 141PPI
B156HW01 V2 Product details :
| AUO LCD SCREEN B156HW01 V2 | |
| Panel Brand | AUO |
| Panel Model | B156HW01 V2 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | 347.16(W)×196.59(H) mm |
| Outline Size | 359.3(W)×209.5(H)×5.7(D) mm |
| Surface | Glare (Haze 0%) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 2/6 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Display Colors | 262K , 60% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Used for | Laptop |
| Frequency | 60Hz |
| Touch Screen | Without |
| Signal Interface | LVDS (2 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HW01 V2 1920*1080 141PPI | |
B156HW01 V2 About shipping method:
Due to the continuous impact of the COVID-19 epidemic, the logistics time limit is unstable. Some channels may be suspended at any time or some channels warehouses have a large backlog of goods. We would like to choose which logistics is more stable, fast and safe at certain times for buyer.
Such as buyer choose DHL, we may ship by the same level express like TNT, Fedex or UPS.If you need specified logistics, please tell us in advance.
B156HW01 V2 Warning:
*Installation guide not included, We are not responsible for any damage caused by installation of this accessory, please be sure you know how to install it before bid,Thank you for your kind understanding!
*We just can guarantee the one you received that will be compatible with your tablet,
*Please DO NOT buy if you do not accept an A+ grade compatible touch screen digitizer with different flex cable numbers as our title/description/photo states is out of supply in the market, thank you!
1. Each screen is tested before shipping & 100% working;Repair/Replacing old, broken, cracked,damaged faulty touch screen.
2. After receiving the goods, do not tear the film, do not stick the glue on the back, test the machine first, remove the old screen, insert the new screen, and check whether the sensitivity is normal. Please be sure to try the machine first. Make sure the quality is ok. Install again.it is easy to burn the motherboard and touch screen, we are not responsible.
3.before connection test the power must be disconnected ,Otherwise it will burn the motherboard and touch screen easily.If it doesn't work, we won't be responsible.
B156HW01 V2 About item and shipping price:
1. For products that are rarely sold or never sold, the item price may not be accurate, please contact me for the correct quote.
2. For remote countries or islands, prices may be inaccurate, high or low, please contact me for the correct quote.
B156HW01 V2 Guarantee And Return:
1. We offer guarantee for all our products.
2. Buyers will bear the shipping cost of returning defective or non-defective items.
3. Returned items must be in good condition like the one we send, not damaged.
4. Returned items are subject to approval by us, must be in the original box as shipped.
5. Damaged items received must be reported within 2 days.
6. All non-seller error returns,shipping and handling charges are non-refundable.
B156HW01 V2 Import Taxes or Duties:
1.-Import duties, taxes and other charges happened in your side are not included in the price of the item. These fees are afforded by buyer.
2.- Please check with you country's Customs office to determine what these additional costs will be before purchase.
3.-Please confirmed detailed information about delivery invoice. For example, how much price we should write on the waybill invoice, or how to describe the item, etc..
B156HW01 V2 FAQ:
Q: How long will I receive my goods B156HW01 V2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of B156HW01 V2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of B156HW01 V2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of B156HW01 V2 ?
A: Of course!sample order is welcome !
