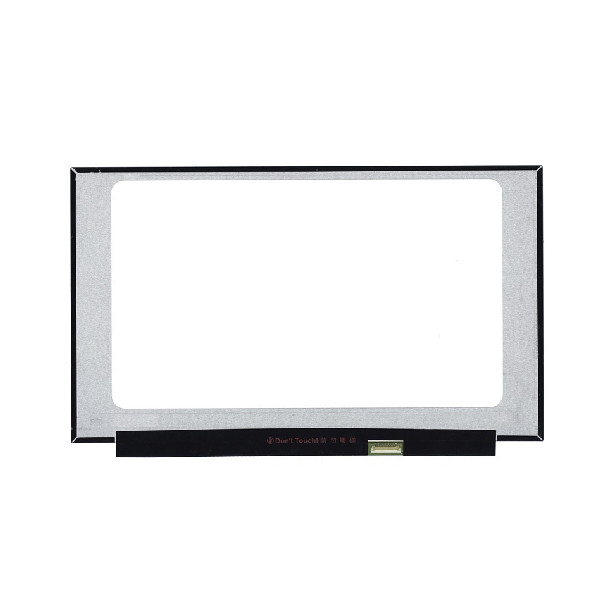

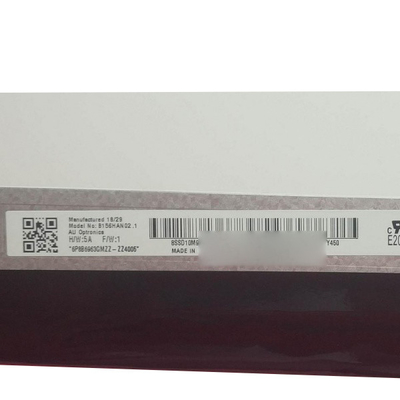

AUO B156HAN02.1 HW5A 15.6 Inch LCD Panel 1920*1080 30 Pins RGB Vertical Stripe
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HAN02.1 HW5A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156HAN02.1 HW5A | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Display Area: | 344.16(W)×193.59(H) Mm |
| Outline Dim.: | 350.66(W)×223.6(H) ×3.2(D) Mm | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Number Of Colors: | 262K | Designed For: | Laptop |
| High Light: | 30 pins 15.6 inch LCD panel,1920*1080 15.6 inch LCD panel,B156HAN02.1 HW5A LCD Laptop Screen |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN02.1 HW5A 1920*1080 30 pins
B156HAN02.1 HW5A Product details :
| AUO LCD Screen B156HAN02.1 HW5A | |
| Panel Brand | AUO |
| Panel Model | B156HAN02.1 HW5A |
| Diagonal Size | 15.6inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Configuration | RGB Vertical Stripe |
| Display size | 344.16(W)×193.59(H) mm |
| Outline Dim. | 350.66(W)×223.6(H) ×3.2(D) mm |
| Treatment | Antiglare |
| Brightness (cd/m²) | 250 (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| View Direction | Symmetry |
| Response Time | 25(Typ.)(Tr+Td) ms |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Number of colors | 262K |
| Backlight type | WLED , 15K hours, with LED driver |
| Frame Rate | 60Hz |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , 30 pins , terminal |
| Supply voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN02.1 HW5A 1920*1080 30 pins | |
B156HAN02.1 HW5A Warning:
*Installation guide not included, We are not responsible for any damage caused by installation of this accessory, please be sure you know how to install it before bid,Thank you for your kind understanding!
*We just can guarantee the one you received that will be compatible with your tablet,
*Please DO NOT buy if you do not accept an A+ grade compatible touch screen digitizer with different flex cable numbers as our title/description/photo states is out of supply in the market, thank you!
1. Each screen is tested before shipping & 100% working;Repair/Replacing old, broken, cracked,damaged faulty touch screen.
2. After receiving the goods, do not tear the film, do not stick the glue on the back, test the machine first, remove the old screen, insert the new screen, and check whether the sensitivity is normal. Please be sure to try the machine first. Make sure the quality is ok. Install again.it is easy to burn the motherboard and touch screen, we are not responsible.
3.before connection test the power must be disconnected ,Otherwise it will burn the motherboard and touch screen easily.If it doesn't work, we won't be responsible.
B156HAN02.1 HW5A About Shipping:
We will test them strictly before shipping.
we will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
B156HAN02.1 HW5A Guarantee And Return:
1. We offer guarantee for all our products.
2. Buyers will bear the shipping cost of returning defective or non-defective items.
3. Returned items must be in good condition like the one we send, not damaged.
4. Returned items are subject to approval by us, must be in the original box as shipped.
5. Damaged items received must be reported within 2 days.
6. All non-seller error returns,shipping and handling charges are non-refundable.
B156HAN02.1 HW5A Import Taxes or Duties:
1.-Import duties, taxes and other charges happened in your side are not included in the price of the item. These fees are afforded by buyer.
2.- Please check with you country's Customs office to determine what these additional costs will be before purchase.
3.-Please confirmed detailed information about delivery invoice. For example, how much price we should write on the waybill invoice, or how to describe the item, etc..
B156HAN02.1 HW5A FAQ:
Q: Can I pay my order of B156HAN02.1 HW5A via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of B156HAN02.1 HW5A ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of B156HAN02.1 HW5A ?
A: Of course!sample order is welcome !
Q: How can I trace my order of B156HAN02.1 HW5A ?
A: we will give you tracking number then you can trace your order from website.
B156HAN02.1 HW5A Shipping and Package :
