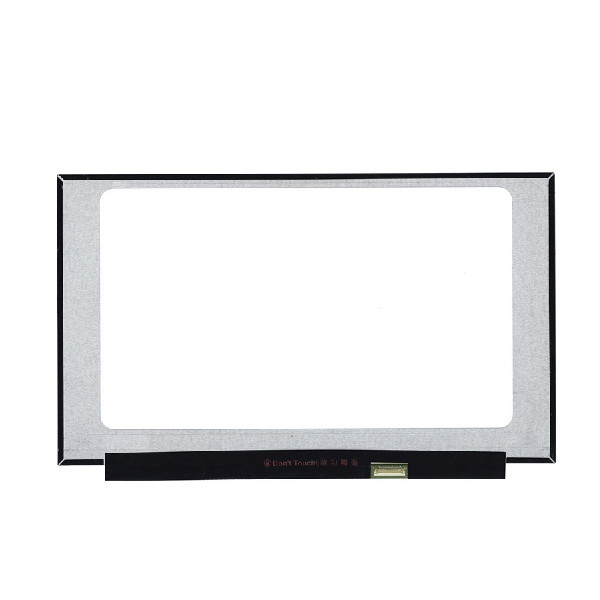

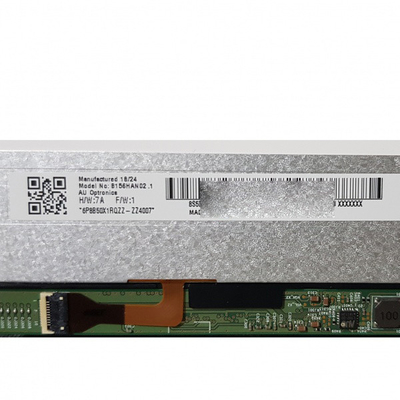

AUO B156HAN02.1 HW7A 15.6 Inch Laptop LCD Panel 1920*1080 30pins 3.3V
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HAN02.1 HW7A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156HAN02.1 HW7A | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 FHD 141PPI | Display Area: | 344.16(H)×193.59(V) Mm |
| Outline Size: | 350.66 × 223.6 × 3.2 Mm (H×V×D) | Display Brightness: | 250 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.) (CR≥10) | Application: | Laptop |
| High Light: | 15.6 inch laptop LCD panel 3.3V,15.6 inch laptop LCD panel 30pins,B156HAN02.1 HW7A laptop LCD panel |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN02.1 HW7A 1920*1080 30pins
B156HAN02.1 HW7A Product details :
| AUO LCD SCREEN B156HAN02.1 HW7A | |
| Panel Brand | AUO |
| Panel Model | B156HAN02.1 HW7A |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(H)×193.59(V) mm |
| Outline Size | 350.66 × 216.15 × 3.2 mm (H×V×D) |
| Surface | Antiglare |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) [Transmission] |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 46% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal Interface | 30 pins eDP (2 Lanes) , eDP1.2 , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN02.1 HW7A 1920*1080 30pins | |
B156HAN02.1 HW7A About transportation
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
B156HAN02.1 HW7A Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
B156HAN02.1 HW7A Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
B156HAN02.1 HW7A Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
B156HAN02.1 HW7A Pay:
1: We accept Alipay, PayPal,
2: All major credit cards are accepted through secure payment processes-sor ESCROW
3: Make sure you read the entire description and agree to the Transaction before buying.
B156HAN02.1 HW7A Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
B156HAN02.1 HW7A FAQ:
Q: How do you ship my goods B156HAN02.1 HW7A ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: If I order B156HAN02.1 HW7A now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for B156HAN02.1 HW7A ?
A: Of course!sample order is welcome !
B156HAN02.1 HW7A Shipping and Package :
