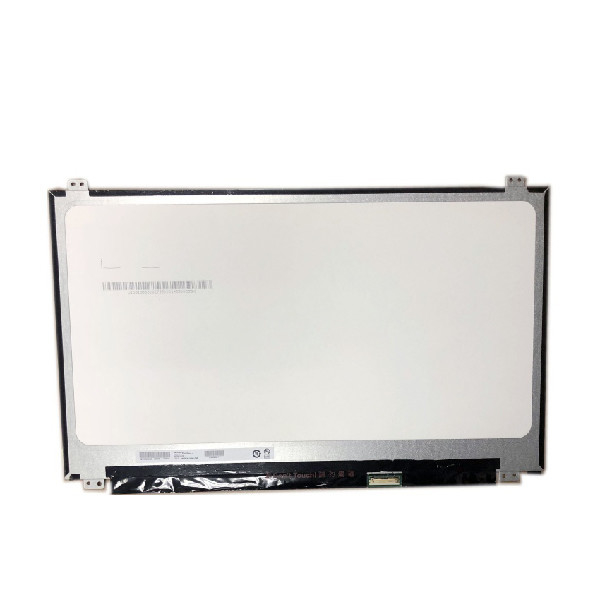

AUO B156HAN02.1 HW3A 15.6 Inch Laptop LCD Panel 1920*1080 250 Cd/M2 EDP1.2
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HAN02.1 HW3A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156HAN02.1 HW3A | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080 FHD 141PPI | Display Area: | 344.16(H)×193.59(V) Mm |
| Outline Size: | 350.66 × 223.6 × 3.2 Mm (H×V×D) | Display Brightness: | 250 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.) (CR≥10) | Application: | Laptop |
| High Light: | 15.6 inch laptop LCD panel 250 Cd/M2,EDP1.2 15.6 inch laptop LCD panel,B156HAN02.1 HW3A laptop LCD panel |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN02.1 HW3A 1920*1080
B156HAN02.1 Product details :
| AUO LCD SCREEN B156HAN02.1 HW3A | |
| Panel Brand | AUO |
| Panel Model | B156HAN02.1 HW3A |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(H)×193.59(V) mm |
| Outline Size | 350.66 × 223.6 × 3.2 mm (H×V×D) |
| Surface | Antiglare |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) [Transmission] |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 46% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Frequency | 60Hz |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Touch Screen | Without |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , 30 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN02.1 HW3A 1920*1080 | |
B156HAN02.1 NOTE:
Before you ordered , in case of any mistake & trouble in our business , please mail us as below information for double confirming to win this deal together.
•1-->LCD model name in your hand now ,such as : LP140WH1-TLA1
•2-->Your laptop name ,such as : DV3000 ……
•3-->Send above information to our mail and we will response you within 24 hours for quick and right deal ,thanks !
B156HAN02.1 Our advantages:
1. The LCD screens you purchase are 100% original.
2. Our goods are in stock and shipped within 24 hours.
3. The customer installs independently and provides the installation tutorial instructions.
4. Our packaging is professionally customized and very safe! Each package will have a fragile label.
5. Product grades are available A+ (perfect) and A- (defective/imperfect) to meet various customer needs.
6. We provide professional after-sales service, 24 hours a day for customer service, and provide a 90-day warranty (calculated from the time the goods arrive at the destination).
B156HAN02.1 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
B156HAN02.1 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
B156HAN02.1 Pay:
1: We accept Alipay, PayPal,
2: All major credit cards are accepted through secure payment processes-sor ESCROW
3: Make sure you read the entire description and agree to the Transaction before buying.
B156HAN02.1 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
B156HAN02.1 FAQ:
Q: How do you ship my goods B156HAN02.1 HW3A ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of AUO B156HAN02.1 HW3A ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel glass AUO B156HAN02.1 HW3A at a very low value ?
A: Yes , we can . pls inform us before shipping .
