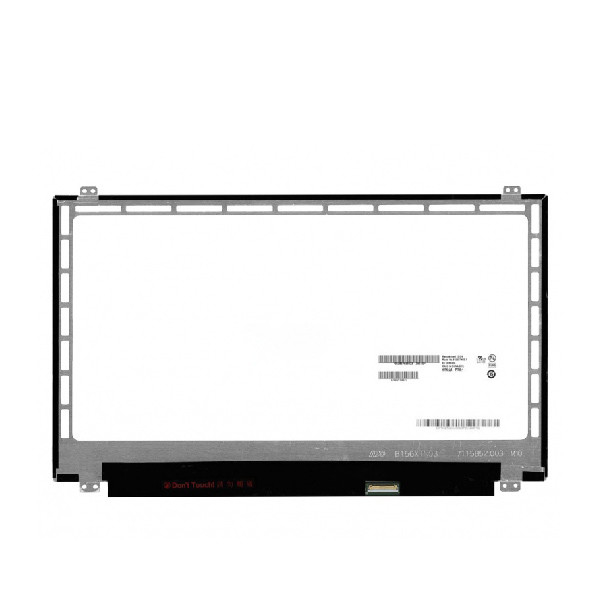

AUO B156XTN03.1 15.6 Inch Laptop LCD Panel 1366*768 100PPI Slim 30 Pins EDP
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156XTN03.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156XTN03.1 | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 WXGA 100PPI | Display Area: | 344.232 × 193.536 Mm (H×V) |
| Outline Size: | 359.3 × 223.8 × 3.2mm (H×V×D) | Display Brightness: | 220 Cd/m² (Typ.) |
| Viewing Angle: | 45/45/15/35 (Typ.) (CR≥10) | Application: | Laptop |
| High Light: | WXGA 15.6 inch laptop LCD panel,Slim 15.6 inch laptop LCD panel,B156XTN03.1 laptop LCD panel |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156XTN03.1 1366*768 100PPI
B156XTN03.1 Product details :
| AUO LCD SCREEN B156XTN03.1 | |
| Panel Brand | AUO |
| Panel Model | B156XTN03.1 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232 × 193.536 mm (H×V) |
| Outline Size | 359.3 × 223.8 × 3.2mm (H×V×D) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal Interface | 30 pins eDP (1 Lane) , eDP1.2 , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156XTN03.1 1366*768 100PPI | |
B156XTN03.1 NOTE:
Before you ordered , in case of any mistake & trouble in our business , please mail us as below information for double confirming to win this deal together.
•1-->LCD model name in your hand now ,such as : LP140WH1-TLA1
•2-->Your laptop name ,such as : DV3000 ……
•3-->Send above information to our mail and we will response you within 24 hours for quick and right deal ,thanks !
B156XTN03.1 Our advantages:
1. The LCD screens you purchase are 100% original.
2. Our goods are in stock and shipped within 24 hours.
3. The customer installs independently and provides the installation tutorial instructions.
4. Our packaging is professionally customized and very safe! Each package will have a fragile label.
5. Product grades are available A+ (perfect) and A- (defective/imperfect) to meet various customer needs.
6. We provide professional after-sales service, 24 hours a day for customer service, and provide a 90-day warranty (calculated from the time the goods arrive at the destination).
B156XTN03.1 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
B156XTN03.1 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility
B156XTN03.1 Pay:
1: We accept Alipay, PayPal,
2: All major credit cards are accepted through secure payment processes-sor ESCROW
3: Make sure you read the entire description and agree to the Transaction before buying.
B156XTN03.1 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
3: If you do not receive the goods within 45 days, please contact us. And give us 3 business days to check the packages that are not delivered and the reasons. If this is our problem, we will refund your money.
B156XTN03.1 FAQ:
Q: What happen if the lcd panel B156XTN03.1 I received can't work ?
A: our lcd panel B156XTN03.1 was tested ok before shipping .
Q: How to order lcd panel B156XTN03.1 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: Can you declared low value for my order lcd screen B156XTN03.1 when shipping?
A: Yes, We can do it for you if you need.
Q: How long is the warranty of 15.6 inch B156XTN03.1 ?
A: 90 days .
