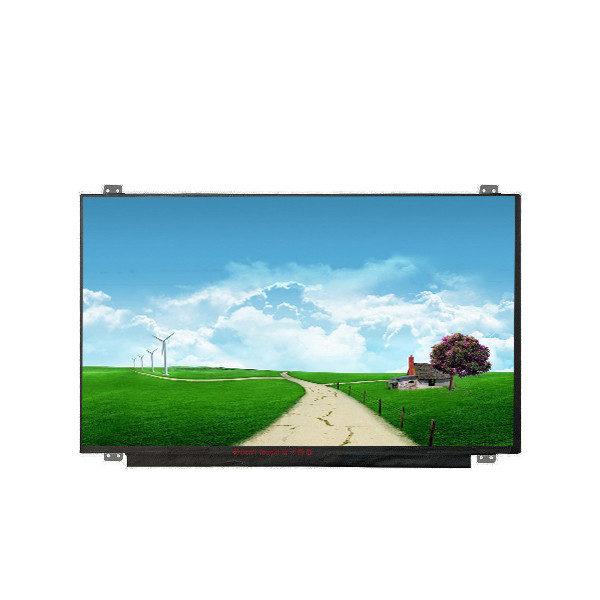

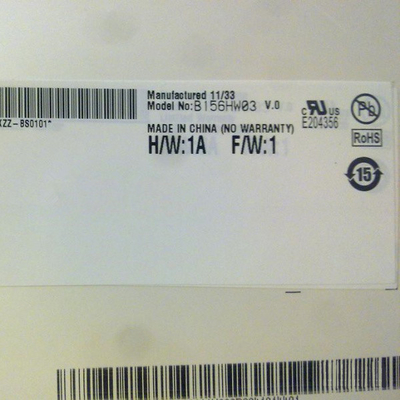

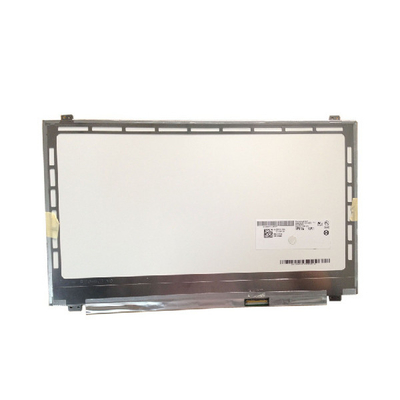

AUO B156HW03 V0 15.6 Inch Laptop LCD Panel 1920*1080 141PPI 40 Pins Connector
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HW03 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156HW03 V0 | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Display Area: | 344.16 × 193.59 Mm (H×V) |
| Surface: | Glare (Haze 0%) | Display Brightness: | 300 Cd/m² (Typ.) |
| Viewing Angle: | 70/70/60/60 (Typ.) (CR≥10) | Application: | Laptop |
| Highlight: | 15.6 inch laptop LCD panel 141PPI,AUO 40pins 15.6 inch laptop LCD panel,B156HW03 V0 laptop LCD panel |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HW03 V0 1920*1080 141PPI
B156HW03 V0 Product details :
| AUO LCD SCREEN B156HW03 V0 | |
| Panel Brand | AUO |
| Panel Model | B156HW03 V0 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16 × 193.59 mm (H×V) |
| Bezel Opening | 346.16 × 195.59 mm (H×V) |
| Outline Size | 359.5 × 223.8 × 4.1 mm (H×V×D |
| Surface | Glare (Haze 0%) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td); ms |
| Display Colors | 262K , 60% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Application | Laptop |
| Signal Interface | LVDS (2 ch, 6-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HW03 V0 1920*1080 141PPI | |
B156HW03 V0 Buyer Notice:
1. We are not responsible for any customs or import duties.
2.We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model
B156HW03 V0 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
B156HW03 V0 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
B156HW03 V0 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility
B156HW03 V0 Pay:
1: We accept Alipay, PayPal,
2: All major credit cards are accepted through secure payment processes-sor ESCROW
3: Make sure you read the entire description and agree to the Transaction before buying.
B156HW03 V0 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
3: If you do not receive the goods within 45 days, please contact us. And give us 3 business days to check the packages that are not delivered and the reasons. If this is our problem, we will refund your money.
B156HW03 V0 FAQ:
Q: What happen if the lcd screen B156HW03 V0 I received can't work ?
A: Our M170EG01 VG was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to order AUO B156HW03 V0 ?
A: We accept the T/T , Western union , paypal .
Q: what's the warranty of TFT-LCD B156HW03 V0 ?
A: 90days.
Q: Can you declared low price of my 15.6 inch lcd panel B156HW03 V0 when shipping?
A: Yes , please inform us the value you want .
