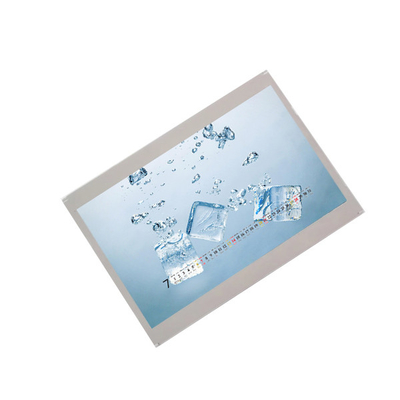

original 6.5 inch tft touch screen AA065VE11-CA-01 LCD Display for Industrial
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Mitsubishi |
| Model Number: | AA065VE11-CA-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AA065VE11-CA-01 | Screen Size: | 6.5 Inch |
|---|---|---|---|
| Pixel Number: | 640(RGB)×480 (VGA) 122PPI | Active Area(mm): | 132.48 × 99.36 (H×V) |
| Outline(mm): | 170.2 × 132.6 × 14.7 (H×V×D) | Bezel Area(mm): | 133.8 × 100.7 (H×V) |
| Mass: | TBD | Used For: | Industrial / Outdoor High Brightness |
| Backlight: | 2 Strings WLED , 100K Hours , No Driver | Touchscreen: | PCAP, Optical Bonding |
Product Description
original 6.5 inch tft touch screen AA065VE11-CA-01 LCD Display for Industrial
AA065VE11-CA-01 Product details :
| Mitsubishi LCD SCREEN AA065VE11-CA-01 | |
| manufacturer | Mitsubishi |
| Model Name | AA065VE11-CA-01 |
| screen size | 6.5 inch |
| Screen type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA, 122PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area(mm) | 132.48 × 99.36 (H×V) |
| Bezel Opening | 133.8(W)×100.7(H) mm |
| Outline Size | 170.2(W)×132.6(H) ×14.7(D) mm |
| Surface | Antireflection |
| Brightness | 1100 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Response Time | 6/19 (Typ.)(Tr/Td) |
| Frequency | 60Hz |
| Touch Screen | PCAP, Optical Bonding |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| original 6.5 inch tft touch screen AA065VE11-CA-01 LCD Display for Industrial | |
AA065VE11-CA-01 Terms of Service:
Thank you for reviewing the important information, I will tell you the important steps.
The screen of the machine is inside the device, you need to disassemble the machine, and then send me the screen picture (this is very important, please pay attention),And tell me the length, width, and thickness of the screen.
Could you please tell me if the display screen is not good, or the touch handwriting is not good, I will confirm the screen information.
AA065VE11-CA-01 Payment:
1)All major credit cards are acceptable through secure payment processor ESCROW.
2) If you can't immediately checkout after auction close, please wait for a few minutes and retry.
3) If you have any problem on payment, please contact us.
AA065VE11-CA-01 Shipping and Package :
AA065VE11-CA-01 Shipment:
1) Worldwide shipping. If your country is not listed, please contact us.
2) Item will be shipped within 1-3 days after confirmed payment. Please inform us the price you want to mark on the invoice.
3) Please make sure your address is correct and deliverable by the Express you choose. Your full name is recommended, especial Russian buyers.
4) We are not responsible for any addtional taxes or customs duty. We sincerely hope buyers will not raise and refunds or leave neutral and negative feedback based on this reason.
5) delivery time is approx:
--Via DHL,Fedex,UPS: 3-7 working days--Via EMS: 7-15 working days
-- Air Mail or Parcel:10-30 working days
If you urgently need the item,. please choose DHL. Also, the delivery time should not be considered as s reason when you leave a neutral or negative feedback, particularly Air Mail which sometimes may take a longer time to reach than expected.
AA065VE11-CA-01 Contact Us:
1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (Not include public holiday)
2. Working Hours: Monday to Saturday
3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.
4. Bulk order is acceptable, lower prices will be offered to you for bulk order.
AA065VE11-CA-01 FAQ:
Q: How to order AUO lcd panel AA065VE11-CA-01 ?
A: We accept T/T , Paypal , western union .
Q: Can you tested the AA065VE11-CA-01 before shipping ?
A: Of course , 6.5 inch lcd screen AA065VE11-CA-01 was Strictly tested before shipping.
Q: What happen if the AA065VE11-CA-01 I received can't work ?
A: AA065VE11-CA-01 lcd panel was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: How long the warranty of the AA065VE11-CA-01 ?
A: 90 days .
