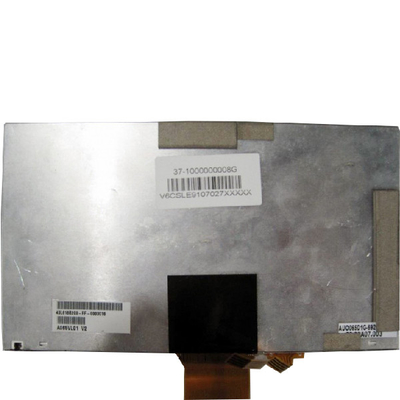

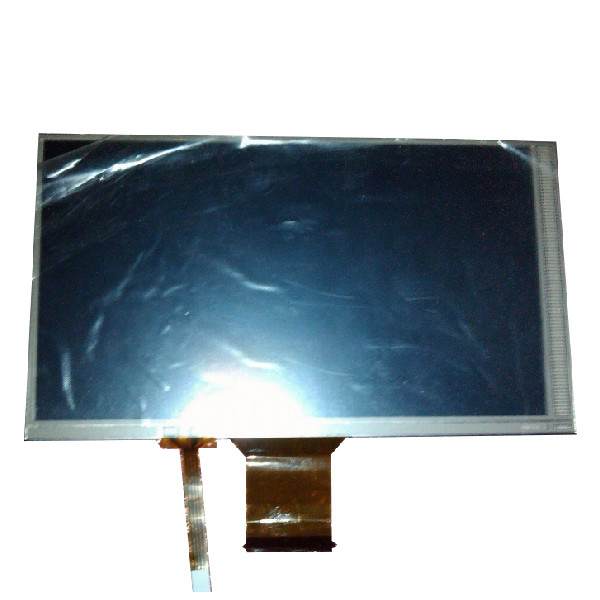

original 6.5 inch tft touch screen A065VL01 V2 LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | A065VL01 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A065VL01 V2 | Screen Size: | 6.5 Inch |
|---|---|---|---|
| Pixel Number: | 800(RGB)×480 (WVGA) 144PPI | Active Area(mm): | 143.4 × 79.2 (H×V) |
| Outline(mm): | 157.2 × 89.2 (H×V×D) | Bezel Area(mm): | 145.5 × 81.3 (H×V) |
| Mass: | 145±7.3g | Used For: | MP3 PMP |
| Backlight: | 4S1P WLED , 10K Hours , No Driver | Touchscreen: | 4-wire Resistive Touch |
Product Description
original 6.5 inch tft touch screen A065VL01 V2 LCD Display
A065VL01 V2 Product details :
| AUO LCD SCREEN A065VL01 V2 | |
| Panel Brand | AUO |
| Panel Model | A065VL01 V2 |
| Panel Size | 6.5" |
| Panel Type | LCM, LTPS TFT-LCD |
| Resolution | 800(RGB)×480 [WVGA] 144PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 143.4 × 79.2 mm (H×V) |
| Bezel Opening | 145.5 × 81.3 mm (H×V) |
| Outline Size | 157.2 × 89.2 mm (H×V×D) |
| Surface | Haze (Haze 8%) |
| Brightness | 250 (Typ.) |
| Contrast Ratio | 250 : 1 (Typ.) [Transmission] |
| Viewing Angle | 55/55/45/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 12/18 (Typ.)(Tr/Td) ms |
| Display Colors | 262K |
| Lamp Type | 4S1P WLED , 10K hours, no drive |
| Frequency | 60Hz |
| Panel Weight | 145±7.3g |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , FPC , 80 pins |
| Input Voltage | 3.3/10.5/13.5/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Storage temperature: -25 ~ 80 °C Operating temperature: 0 ~ 60 °C |
| original 6.5 inch tft touch screen A065VL01 V2 LCD Display | |
A065VL01 V2 Note:
The display is just same as the photos. The warranty is 6 months.
Working hours: 9:00a.m.~18:30p.m., Monday to Saturday (China Time), except official holidays.
If you need more than 10 pcs, please contact us for a good discount.
1. Each lcd will be strictly tested with professional testing board to make sure it will work for your device.
2. If the item is defective, pls notify us within 3 days after receiving. We promise to offer you with the most satisfiying after-sale service.
A065VL01 V2 Shipping and Package :
A065VL01 V2 Payment & Shipping:
1. Payment is safe and easy, you can pay me online use credit card (VISA or Mastercard) ...
2. We can ship items to all over the world.and we had been shipped to many countries eg: Japan, Thailand, Russia, Ukraine, the United Kingdom, Brazil.
3. Freight fee is cheap, we can ship to you by DHL, UPS, TNT, EMS, China Post Air Mail.
A065VL01 V2 Tariffs and fees:
We do not charge a fee for all customer orders, or even a part of.
When the parts arrive your local customs, if part tariffs, we will not be responsible for any customs duties or import taxes
Standard shipping items using international aviation, ship from Hong Kong needs 7-14 Working days (2-3 weeks) received most of the region.
If you do not have the date of receipt of the items from the 30 working days (5 weeks) survey, please contact us. (Russia United Kingdom. 5 to 9 weeks)
Our Working Time: Monday-Friday, Except legal holidays.
A065VL01 V2 Guarantee And Return:
1. We offer guarantee for all our products.
2. Buyers will bear the shipping cost of returning defective or non-defective items.
3. Returned items must be in good condition like the one we send, not damaged.
4. Returned items are subject to approval by us, must be in the original box as shipped.
5. Damaged items received must be reported within 2 days.
6. All non-seller error returns,shipping and handling charges are non-refundable.
A065VL01 V2 FAQ:
Q: If I place order now,when will you ship the goods of A065VL01 V2 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of A065VL01 V2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods A065VL01 V2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of A065VL01 V2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
