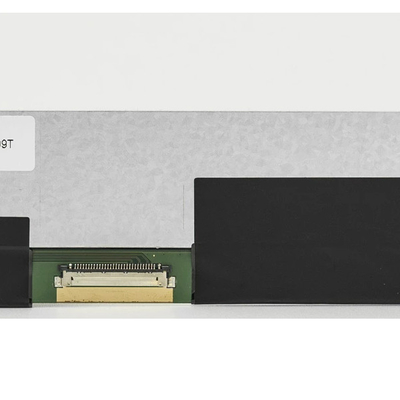

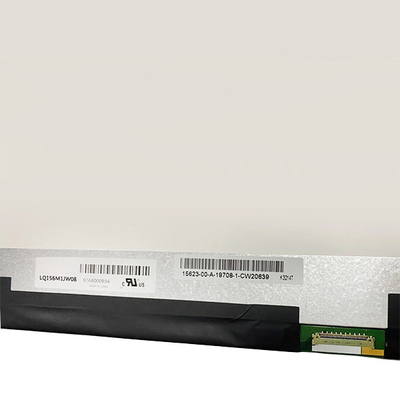

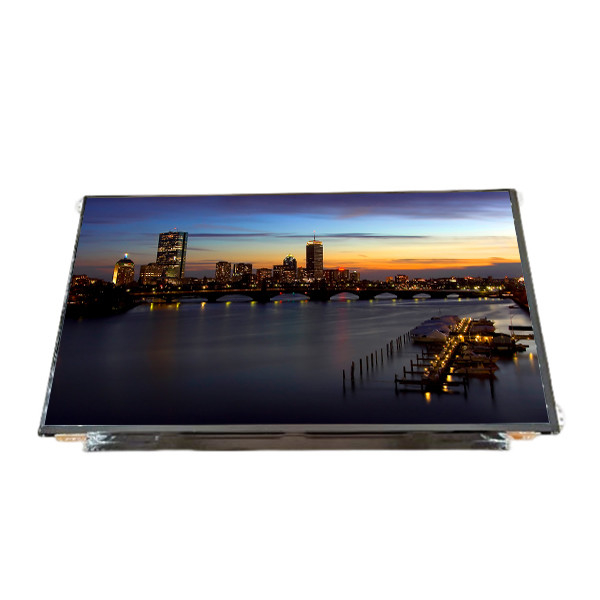

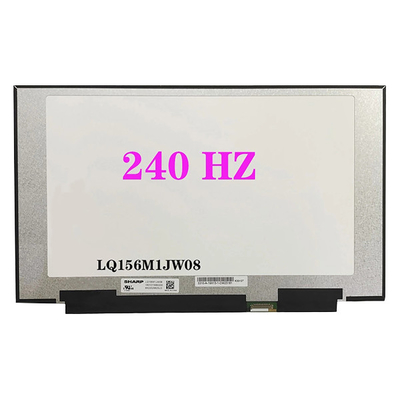

Sharp LQ156M1JW08 15.6 Inch LCD Panel 1920*1080 141 PPI Symmetry
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Sharp |
| Model Number: | LQ156M1JW08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LQ156M1JW08 | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Display Area: | 344.16 X 193.59(mm) |
| Outline Dim.: | 350.66(W)×215.54(H)×2.6(D) Mm | 8 (Typ.)(Tr+Td) Ms: | 8 (Typ.)(Tr+Td) Ms |
| Viewing Angle: | 89/89/89/89 (Typ.) (CR≥10) | Application: | Laptop / Gaming |
| High Light: | Sharp 15.6 inch LCD panel,Symmetry 15.6 inch LCD panel,LQ156M1JW08 LCD Laptop Screen |
||
Product Description
Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156M1JW08 1920*1080 141 PPI
LQ156M1JW08 Product details :
| Sharp LCD Screen LQ156M1JW08 | |
| Panel Brand | Sharp |
| Panel Model | LQ156M1JW08 |
| Screen size | 15.6 inch |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 344.16(W)×193.59(H) mm |
| Outline(mm) | 350.66(W)×215.54(H)×2.6(D) mm |
| surface | Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Reaction time | 8 (Typ.)(Tr+Td) ms |
| Best View on | Symmetry |
| Optical mode | New Mode2, Normally Black, Transmissive |
| Number of colors | 16.7M |
| Backlight type | WLED , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop Gaming |
| refresh rate | 240Hz |
| Touch Screen | Without |
| Appearance style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop / Gaming |
| Signal | eDP (4 Lanes) , 40 pins Connector |
| drive voltage | 3.3V (Typ.) |
| working | Operating: 0 ~ 50 °C ; Storage: -25 ~ 60 °C |
| Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156M1JW08 1920*1080 141 PPI | |
LQ156M1JW08 NOTE:
Before you ordered , in case of any mistake & trouble in our business , please mail us as below information for double confirming to win this deal together.
•1-->LCD model name in your hand now ,such as : B156HAN08.3
•2-->Your laptop name ,such as : DV3000 ……
•3-->Send above information to our mail and we will response you within 24 hours for quick and right deal ,thanks !
LQ156M1JW08 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
LQ156M1JW08 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
LQ156M1JW08 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
LQ156M1JW08 Pay:
1: We accept Alipay, PayPal,
2: All major credit cards are accepted through secure payment processes-sor ESCROW
3: Make sure you read the entire description and agree to the Transaction before buying.
LQ156M1JW08 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
LQ156M1JW08 FAQ:
Q: Do you accept sample orders of LQ156M1JW08 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of LQ156M1JW08 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods LQ156M1JW08 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of LQ156M1JW08 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
LQ156M1JW08 Shipping and Package :
