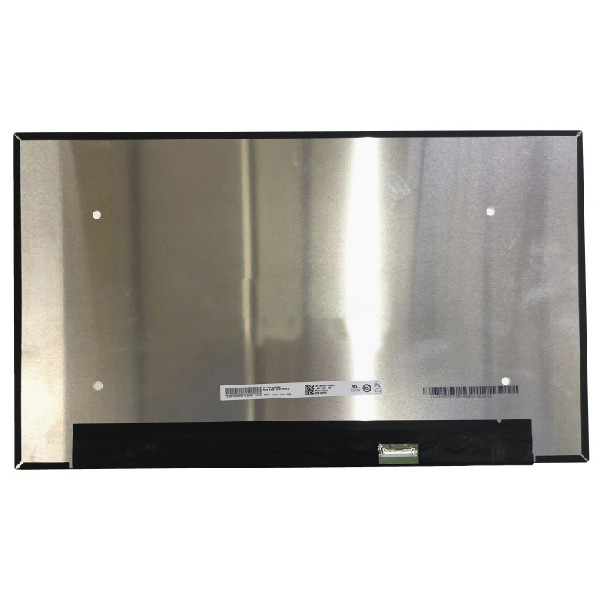

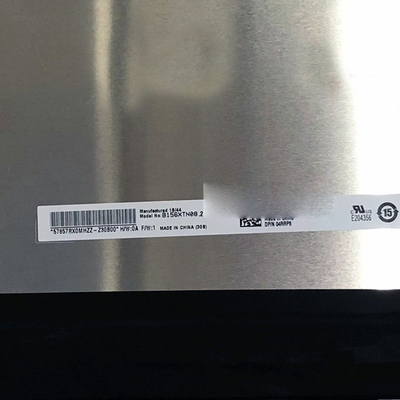

AUO B156XTN08.2 15.6 Inch LCD Panel 1366*760 100PPI EDP EDP1.2 30 Pins Connector
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156XTN08.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156XTN08.2 | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 [WXGA] 100PPI | Display Area: | 344.16 X 193.59(mm) |
| Number Of Colors: | 262K 45% NTSC | Display Brightness: | 220 Cd/m² (Typ.) |
| Viewing Angle: | 45/45/15/35 (Min.)(CR≥10 | Application: | Laptop |
| High Light: | EDP1.2 15.6 inch LCD panel,30 Pins Connector 15.6 inch LCD panel,B156XTN08.2 LCD Laptop Screen |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156XTN08.2 1366*760 100PPI
B156XTN08.2 Product details :
| AUO LCD Screen B156XTN08.2 | |
| Panel Brand | AUO |
| Panel Model | B156XTN08.2 |
| screen size | 15.6 inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 1366(RGB)×768 [WXGA] 100PPI |
| Pixel configuration | RGB vertical bars |
| Display size | 344.16 X 193.59(mm) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| View Direction | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Operating Mode | TN, Normally White, Transmissive |
| Number of colors | 262K 45% NTSC |
| Backlight type | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Bent, T≤3.0mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Interface Type | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| maximum rating | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156XTN08.2 1366*760 100PPI | |
B156XTN08.2 NOTE:
Before you ordered , in case of any mistake & trouble in our business , please mail us as below information for double confirming to win this deal together.
•1-->LCD model name in your hand now ,such as : B156HAN08.3
•2-->Your laptop name ,such as : DV3000 ……
•3-->Send above information to our mail and we will response you within 24 hours for quick and right deal ,thanks !
B156XTN08.2 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
B156XTN08.2 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
B156XTN08.2 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility
B156XTN08.2 Pay:
1: We accept Alipay, PayPal,
2: All major credit cards are accepted through secure payment processes-sor ESCROW
3: Make sure you read the entire description and agree to the Transaction before buying.
B156XTN08.2 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
3: If you do not receive the goods within 45 days, please contact us. And give us 3 business days to check the packages that are not delivered and the reasons. If this is our problem, we will refund your money.
B156XTN08.2 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of B156XTN08.2 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of B156XTN08.2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods B156XTN08.2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
