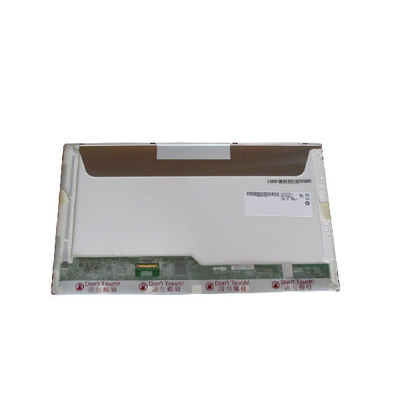

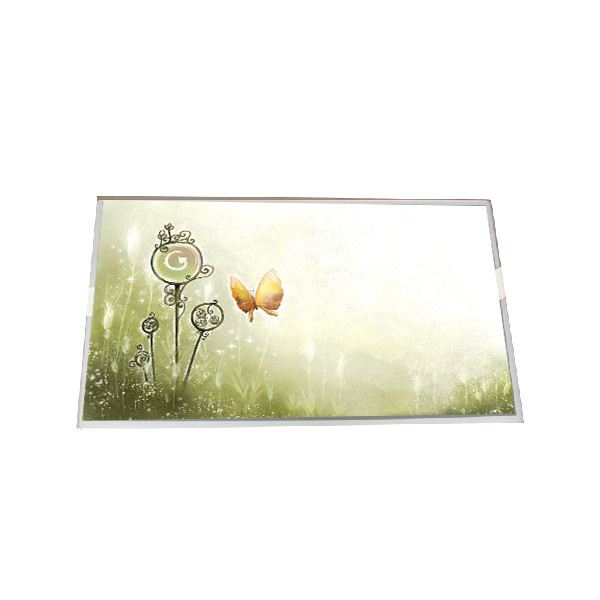

AUO Vertical Stripe 15.6 Inch LCD Pane B156HW01 V1 40PINS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HW01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156HW01 V1 | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Display Area: | 344.16(W)×193.59(H) Mm |
| Outline Size: | 359.3(W)×209.5(H)×5.7(D) Mm | Display Brightness: | 400 Cd/m² (Typ.) |
| Viewing Angle: | 70/70/60/60 (Typ.) (CR≥10) | Application: | Laptop |
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HW01 V1 40PINS
B156HW01 V1 Product details :
| AUO LCD SCREEN B156HW01 V1 | |
| Panel Brand | AUO |
| Panel Model | B156HW01 V1 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB vertical bars |
| Display Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | 347.16(W)×196.59(H) mm |
| Outline Size | 359.3(W)×209.5(H)×5.7(D) mm |
| Surface | Antiglare |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 2/6 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 60% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Frequency | 60Hz |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Touch Screen | Without |
| Signal Interface | LVDS (2 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HW01 V1 40PINS | |
B156HW01 V1 Buyer Notice:
1. We are not responsible for any customs or import duties.
2.We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model
B156HW01 V1 Shipment:
Usually we will prepare and ship your goods within 5 business days.
The shipping charge doesn't include the import tax,buyer is responsible for custom duties.
Pls check if your item is in good condition upon receipt of it.
B156HW01 V1 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
B156HW01 V1 Pay:
1: We accept Alipay, PayPal,
2: All major credit cards are accepted through secure payment processes-sor ESCROW
3: Make sure you read the entire description and agree to the Transaction before buying.
B156HW01 V1 Our advantages:
1. The LCD screens you purchase are 100% original.
2. Our goods are in stock and shipped within 24 hours.
3. Our packaging is professionally customized and very safe! Each package will have a fragile label.
4. Product grades are available A+ (perfect) and A- (defective/imperfect) to meet various customer needs.
5. We provide professional after-sales service, 24 hours a day for customer service, and provide a 90-day warranty (calculated from the time the goods arrive at the destination).
B156HW01 V1 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of B156HW01 V1?
A: Of course!sample order is welcome !
Q: How to make payment of B156HW01 V1 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of B156HW01 V1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
B156HW01 V1 Shipping and Package :
