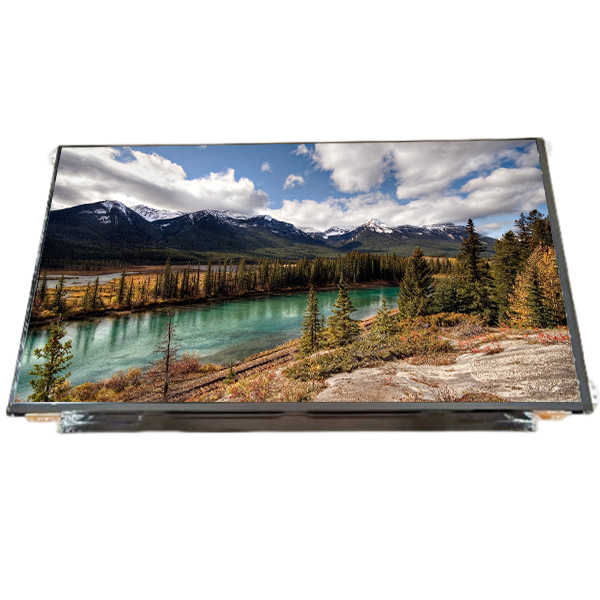

Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156D1JW42 3840*2160 LCD Display Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Sharp |
| Model Number: | LQ156D1JW42 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LQ156D1JW42 | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160(UHD) 282PPI | Display Area: | 345.6(W)×194.4(H) Mm |
| Outline Size: | 350.66(W)×216.3(H)×2.75(D) Mm | Display Brightness: | 400 Cd/m² (Typ.) |
| Viewing Angle: | 89/89/89/89 (Typ.) (CR≥10) | Application: | Laptop |
Product Description
Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156D1JW42 3840*2160 LCD Display Screen
LQ156D1JW42 Product details :
| Sharp LCD Screen LQ156D1JW42 (SHP14A1) | |
| Panel Brand | Sharp |
| Panel Model | LQ156D1JW42 (SHP14A1) |
| Screen size | 15.6 inches |
| Panel Type | LCM, Oxide TFT-LCD |
| Resolution | 3840(RGB)×2160(UHD) 282PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 345.6(W)×194.4(H) mm |
| Outline Dim. | 350.66(W)×216.3(H)×2.75(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Display brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| View Direction | Symmetry |
| Reaction time | 33 (Typ.)(Tr+Td) |
| Optical mode | IPS, Normally Black, Transmissive |
| Number of colors | 16.7M , 100% Adobe RGB |
| Backlight type | WLED , 15K hours, with LED driver |
| Refresh rate | 60Hz |
| Touch Panel | Without |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Signal | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins , terminal |
| Drive voltage | 3.3V (Typ.) |
| Working | Operating: 0 ~ 50 °C ; Storage: -20 ~ 60 °C |
| Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156D1JW42 3840*2160 LCD Display Screen | |
