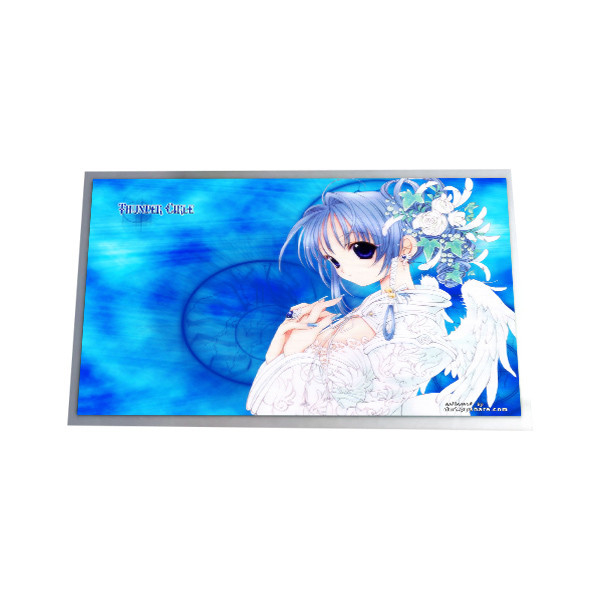

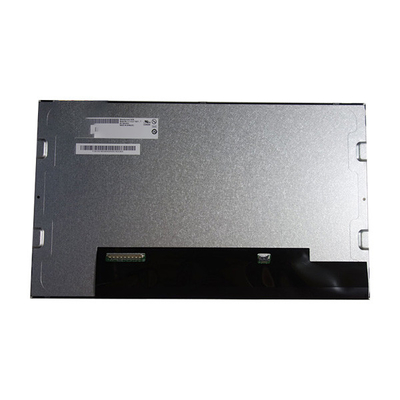

15.6in industrial lcd panel display G156XTN01.2 LVDS lcd screen Monitors
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G156XTN01.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G156XTN01.2 | Panel Size: | 15.6" |
|---|---|---|---|
| Pixel Format: | RGB Vertical Stripe | Display Area: | 344.232(W)×193.536(H) Mm |
| Bezel Opening: | 347.06(W)×196.49(H) Mm | Outline Size: | 363.8(W)×215.9(H)×9.57(D) Mm |
| Weight: | 860g (Typ.) | Application: | Industrial |
Product Description
15.6in industrial lcd panel display G156XTN01.2 LVDS lcd screen Monitors
G156XTN01.2 Product details :
| AUO LCD SCREEN G156XTN01.2 | |
| Panel Brand | AUO |
| Panel Model | G156XTN01.2 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA, 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | 347.06(W)×196.49(H) mm |
| Outline Size | 363.8(W)×215.9(H) ×9.57(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/70/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 10 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 62% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 860g (Typ.) |
| Signal Interface | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| 15.6in industrial lcd panel display G156XTN01.2 LVDS lcd screen Monitors | |
G156XTN01.2 Hello, before placing orders:
To avoid the wrong order or buy wrong product, please double check your model and screen size and part number. If you are not sure the purpose compatibility, please send your original specific models (screen) model on the back of the screen and photos sent to us; Usually we will send the LED panel is compatible model, it may be related to your original screen model is not completely the same. But we can make sure it is suitable for the model Note: product prototype number of links and compatible model random delivery. If you have any special requirements you need to specify the type, please inform us before order. Thank you very much.
G156XTN01.2 Shipping and Package :
G156XTN01.2 About Package:
We have a professional team to pack it very well to avoid damage,so pls don't worry about the package!
G156XTN01.2 About shipping time:
1.China post :It usual takes 15-40 workdays,Brazil will maybe take more days to get the parcel.
2.epacket:It usual takes 10-20 workdays to get the parcel.
3.EMS:It usual takes 7-15 workdays to get the parcels.
4.DHL /Fedex /UPS/TNT:It usual takes 5-7 workdays to get the parcel.
G156XTN01.2 Return:
· Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period
· Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
G156XTN01.2 FAQ:
Q: If I place order now,when will you ship the goods of G156XTN01.2?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of G156XTN01.2 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of G156XTN01.2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of G156XTN01.2 ?
A: Of course!If you make a large order, we will give you a discount.
