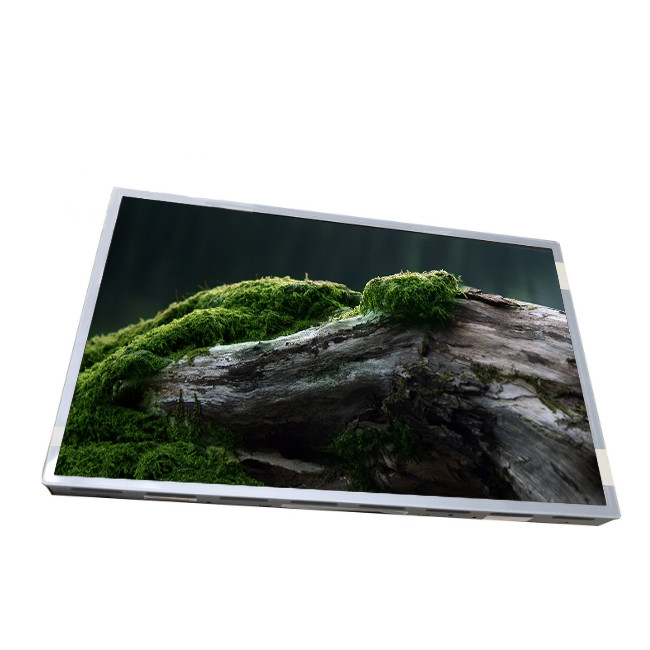

15.6in industrial lcd panel display G156XTT01.1 1366*768 touch screen monitor LVDS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G156XTT01.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G156XTT01.1 | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA, 100PPI | Display Area: | 344.232(W)×193.536(H) Mm |
| Outline Size: | 363.8(W)×215.9(H)×12.5(D) Mm | Response Time: | 6/2 (Typ.)(Tr/Td); 8 (Typ.)(G To G) |
| Weight: | 1.35/1.49Kgs (Typ./Max.) | Application: | Industrial |
Product Description
15.6in industrial lcd panel display G156XTT01.1 1366*768 touch screen monitor LVDS
G156XTT01.1 Product details :
| AUO LCD SCREEN G156XTT01.1 | |
| Panel Brand | AUO |
| Panel Model | G156XTT01.1 |
| Panel Size | 15.6 inches |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232 × 193.536 mm (H×V) |
| Outline Size | 363.8 × 215.9 × 12.5 mm (H×V×D) |
| Surface | Hard coating (7H) |
| Brightness | 350 (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) [Transmission |
| Viewing Angle | 85/85/80/80 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 6/2 (Typ.)(Tr/Td); 8 (Typ.)(G to G) ms |
| Display Colors | 16.2M , 62% NTSC |
| Lamp Type | WLED , 50K hours, with LED driver |
| Frequency | 60Hz |
| Panel Weight | 1.35/1.49Kgs (Typ./Max.) |
| Signal Interface | LVDS (1 ch, 8-bit) , terminal, 30 pins |
| Input Voltage | 5.0V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 60 °C |
| 15.6in industrial lcd panel display G156XTT01.1 1366*768 touch screen monitor LVDS | |
G156XTT01.1 Advantages about us:
1. The LCD screens you buy are all 100% original authentic.
2. Our goods inventory is very sufficient and shipped within 24 hours.
3. Purchase on the same day, there will be a small gift!
4. The customer installs independently and provides installation instructions.
5. Our packaging is professionally customized and very safe! Each package will have a fragile label
6. Product grade provides A grade (perfect) and B grade (defective, imperfect) Meet various customer needs
7. We provide professional after-sales service, serve customers 24 hours a day, and provide a 90-day warranty (calculated from the time the goods arrive at the destination)
G156XTT01.1 Shipping and Package :
G156XTT01.1 Shipping:
· Please note: business/working days(NOT including the weekend or the holidays.)
1.We will ship the item as soon as possible after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
· For faster delivery,please contact us for express details.
2.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.
G156XTT01.1 About the goods:
Receive delivery company products, please check whether the parcel in good face to face. If damaged packaging or product damage, please refuse and ask the photos to prove it. Photos are divided into two parts, divided into two parts. A customer himself as evidence, the other a Courier company as a third party. Then when we received the Courier company send us the pictures of damaged products, we will find out is responsible for the damage to the product of the case. No third party evidence we can't pay for
G156XTT01.1 Other policies:
If you need a lot of quantity, please contact us, will give you a favorable price. We are not responsible for all taxes and import duties Due to the time difference, all emails will be reply within 24 hours. Thank you for your understanding!
G156XTT01.1 FAQ:
Q: How to order lcd panel G156XTT01.1 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: When will my order 15.6 inch lcd panel G156XTT01.1 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test 15.6 inch lcd panel G156XTT01.1 before shipping?
A: Don't Worry , Our AUO G156XTT01.1 was tested ok before shipping
Q: What happen if AUO G156XTT01.1 I received can't work ?
A: Our AUO lcd G156XTT01.1 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
