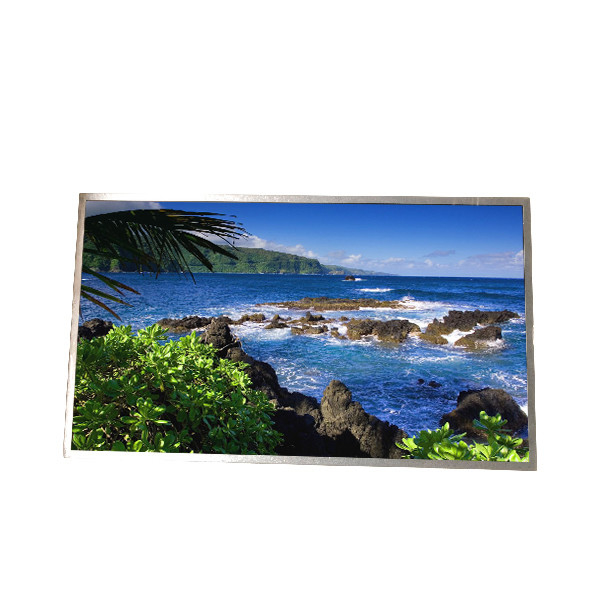

AUO Vertical Stripe 15.6 Inch LCD Pane B156HW02 V1 1920*1080 141 PPI
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HW02 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156HW02 V1 | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Display Area: | 344.16(W)×193.59(H) Mm |
| Bezel Opening: | 347.16(W)×196.59(H) Mm | Outline Size: | 359.3(W)×209.5(H)×5.7(D) Mm |
| Viewing Angle: | 70/70/60/60 (Typ.) (CR≥10) | Application: | Laptop |
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HW02 V1 1920*1080 141 PPI
B156HW02 V1 Product details :
| AUO LCD SCREEN B156HW02 V1 | |
| Panel Brand | AUO |
| Panel Model | B156HW02 V1 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB vertical bars |
| Display Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | 347.16(W)×196.59(H) mm |
| Outline Size | 359.3(W)×209.5(H)×5.7(D) mm |
| Surface | Antiglare |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td) |
| Display Colors | 262K , 60% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Frequency | 60Hz |
| Touch Screen | Without |
| Designed For | Laptop |
| Signal Interface | LVDS (2 ch, 6-bit) 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HW02 V1 1920*1080 141 PPI | |
B156HW02 V1 Berfore you order :
Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model number and photos of your original screen;
Usually the led panel we send will be a compatible model number, it might not exactly the same as model of your original screen .But we can make sure it will fit for the model 100%. All the item will be tested before shipment,
B156HW02 V1 Shipment:
Usually we will prepare and ship your goods within 5 business days.
The shipping charge doesn't include the import tax,buyer is responsible for custom duties.
Pls check if your item is in good condition upon receipt of it.
B156HW02 V1 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
B156HW02 V1 Pay:
1: We accept Alipay, PayPal,
2: All major credit cards are accepted through secure payment processes-sor ESCROW
3: Make sure you read the entire description and agree to the Transaction before buying.
B156HW02 V1 Garrantee:
We rigorously test and check our items to meet the toughest standards prior to shipping, if you encounter any problems please contact us via messenger, We will do everything we can to make sure your happy with your order.
We offer 90 days warranty.
B156HW02 V1 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to order lcd panel B156HW02 V1 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: Can you test lcd panel B156HW02 V1 before shipping?
A: Of course , Our B156HW02 V1 was tested before shipping ,So Don't Worry the item quailty .
