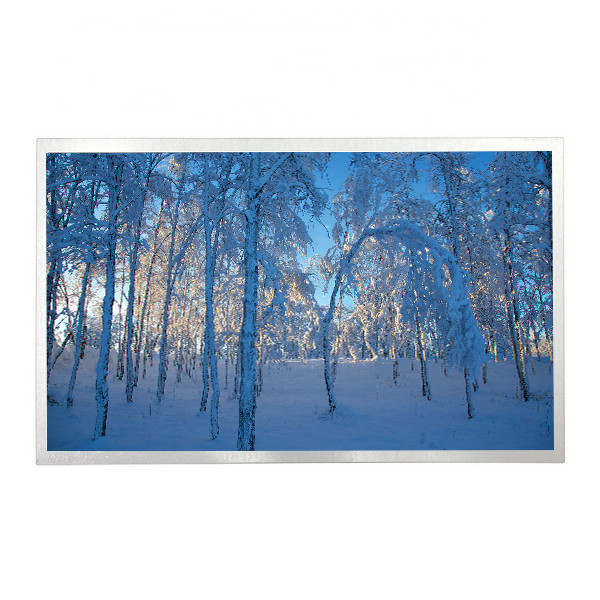

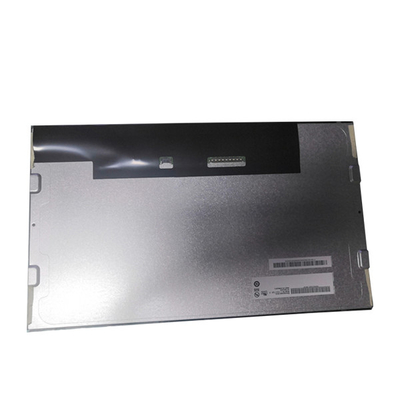

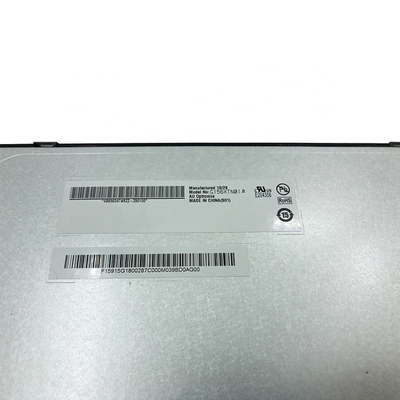

15.6in industrial lcd panel display G156XTN01.0 LCD Monitors Touch Screen Display Replacement
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G156XTN01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G156XTN01.0 | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA, 100PPI | Display Area: | 344.232(W)×193.536(H) Mm |
| Bezel Opening: | 350.4(W)×196.94(H) Mm | Outline Size: | 363.8(W)×215.9(H)×9.6(D) Mm |
| Panel Weight: | 860g (Typ.) | Application: | Industrial |
Product Description
15.6in industrial lcd panel display G156XTN01.0 LCD Monitors Touch Screen Display Replacement
G156XTN01.0 Product details :
| AUO LCD SCREENG G156XTN01.0 | |
| Panel Brand | AUO |
| Panel Model | G156XTN01.0 |
| Panel Size | 15.6" |
| Panel Type | LCM , a-Si TFT-LCD |
| Resolution | 1366(RGB)×768, WXGA, 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232(W)×193.536(H) mm |
| Bezel Opening | 350.4(W)×196.94(H) mm |
| Outline Size | 363.8(W)×215.9(H) ×9.6(D) mm |
| Surface | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/50/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 10 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 62% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 860g (Typ.) |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| 15.6in industrial lcd panel display G156XTN01.0 LCD Monitors Touch Screen Display Replacement | |
G156XTN01.0 Berfore you order :
Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model number and photos of your original screen;
Usually the led panel we send will be a compatible model number, it might not exactly the same as model of your original screen .But we can make sure it will fit for the model 100%. All the item will be tested before shipment,
G156XTN01.0 Buyer notice:
There are two LCD screen attributes
1. Grade B: flaws, defects, white corners around.
2. Grade A: perfect, no defects
G156XTN01.0 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
G156XTN01.0 Pay:
1: We accept Alipay, PayPal,
2: All major credit cards are accepted through secure payment processes-sor ESCROW
3: Make sure you read the entire description and agree to the Transaction before buying.
G156XTN01.0 Shipping and Package :
G156XTN01.0 Garrantee:
We rigorously test and check our items to meet the toughest standards prior to shipping, if you encounter any problems please contact us via messenger, We will do everything we can to make sure your happy with your order.
We offer 90 days warranty.
G156XTN01.0 FAQ:
Q: Can you give me a discount if I need a large quantity of G156XTN01.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods G156XTN01.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of G156XTN01.0 ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of G156XTN01.0 ?
A: The order will be shipped within 2-3 working days after received your payment.
