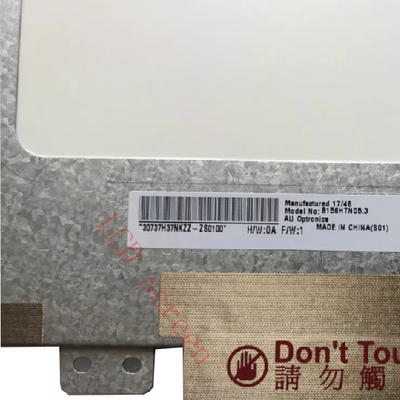

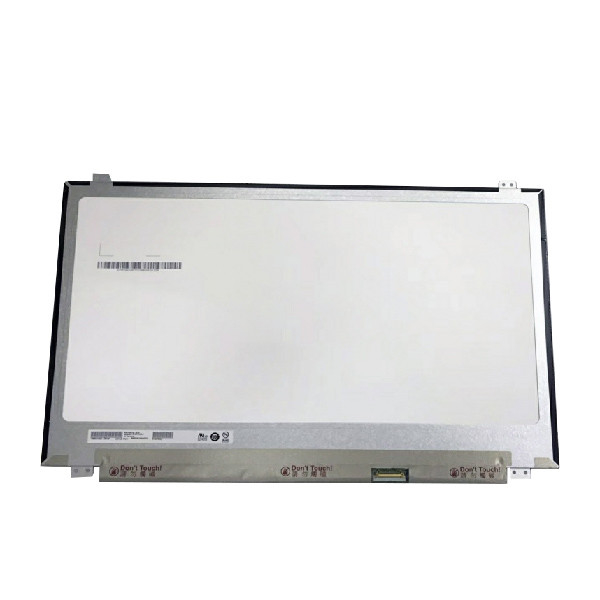

AUO Vertical Stripe 15.6 Inch LCD Pane B156HTN05.3 1920*1080 141PPI
Product Details:
| Place of Origin: | Sharp |
| Brand Name: | AUO |
| Model Number: | B156HTN05.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | B156HTN05.3 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080, FHD, 141PPI | Active Area: | 344.16(W)×193.59(H) Mm |
| Outline Dim.: | 359.5(W)×223.8(H)×3.2(D) Mm | Display Brightness: | 400 Cd/m² (Typ.) |
| Viewing Angle: | 70/70/60/60 (Typ.) (CR≥10) | Designed For: | Laptop |
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HTN05.3 1920*1080 141PPI
B156HTN05.3 Product details :
| AUO LCD SCREEN B156HTN05.3 | |
| Panel Brand | AUO |
| Panel Model | B156HTN05.3 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Outline Size | 359.5(W)×223.8(H)×3.2(D) mm |
| Surface | Antiglare |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 5 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 72% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Frequency | 120Hz |
| Touch Screen | Without |
| Application | Laptop |
| Signal Interface | 30 pins eDP (2 Lanes) , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating: 0 ~ 50 °C ; Storage: -25 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HTN05.3 1920*1080 141PPI | |
B156HTN05.3 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
