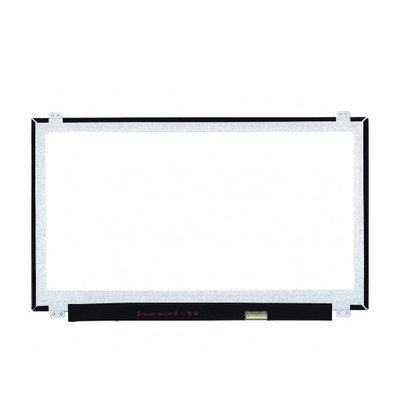

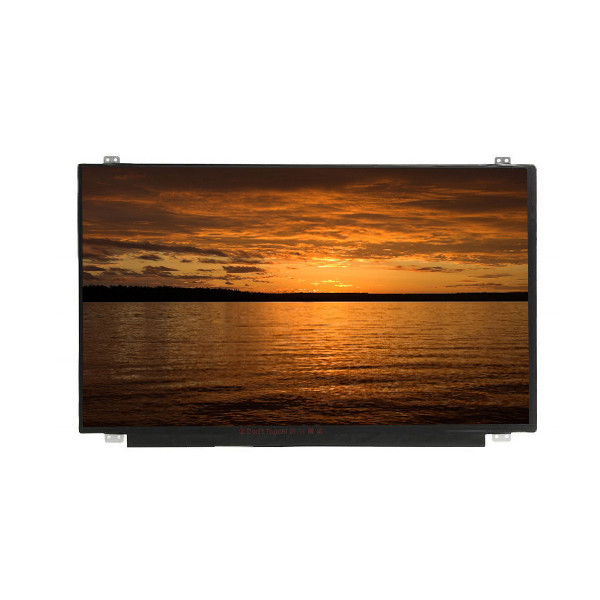

AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN06.2 HWNA 30pins Laptop Screen
Product Details:
| Place of Origin: | Sharp |
| Brand Name: | AUO |
| Model Number: | B156HAN06.2 HWNA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | B156HAN06.2 HWNA | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080, FHD, 141PPI | Active Area: | 344.16(W)×193.59(H) Mm |
| Outline Dim.: | AUO | Display Brightness: | 220 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Designed For: | Laptop |
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN06.2 HWNA 30pins Laptop Screen
B156HAN06.2 HWNA Product details :
| AUO LCD SCREEN B156HAN06.2 HWNA | |
| Panel Brand | AUO |
| Model Name | B156HAN06.2 HWNA |
| Diagonal size | 15.6 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1920(RGB)×1080 FHD 141PPI |
| Pixel arrangement | RGB vertical bar |
| Display size | 344.16(H)×193.59(V) mm |
| Outline Size | 359.5(W)×223.8(H) ×3.2(D) mm |
| Surface treatment | Glare (Haze 0%) |
| Display brightness | 220 cd/m² (Typ.) |
| Contrast | 700:1 (Typ.) (transmission) |
| Optical mode | AHVA, normally black display, transmissive |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response Time | 25 (Typ.)(Tr+Tf) ms |
| Best View on | Symmetry |
| Number of pixels | 262K , 45% NTSC |
| Backlight type | WLED, 15K hours, with LED driver |
| Refresh rate | 60Hz |
| Touch function | Without |
| Application | Laptop |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Interface Type | 30 pins eDP (2 Lanes), connector |
| Supply voltage | 3.3V (Typ.) |
| Application Environment | Working: 0 ~ 50 °C; Storage: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN06.2 HWNA 30pins Laptop Screen | |
B156HAN06.2 HWNA Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
B156HAN06.2 HWNA Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
B156HAN06.2 HWNA About transportation
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
B156HAN06.2 HWNA SHIPPING:
Usually the delivery time is 5-16 business days (USA. AU. CA ).8-20 business days( European, not UK).To other places worldwide maybe cost more than 20 business days. (Except the Standard Int'l Shipping)
Since the delivery time can vary from country to country, if you would like an update on the shipping status of your item(s), please email us before ordering and we will reply you within 24 hours.
we Shipping your parcel worldwide as gift, the shipping address as according to your paypal address, Make sure your shipping address is right ,We don't accept the worry shipping address for our item is free ship.
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. These charges are normally collected by the delivering freight (shipping) company or when you pick the item up-do not confuse them with additional shipping charges
The packages are safe with signature-required. if None sign for the package, it will be return ,please pick it up in your local post office. .
B156HAN06.2 HWNA FAQ:
Q: If I order B156HAN06.2 HWNA now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for B156HAN06.2 HWNA ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of B156HAN06.2 HWNA ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty of B156HAN06.2 HWNA ?
A: 90 days warranty .
B156HAN06.2 HWNA Shipping and Package :
