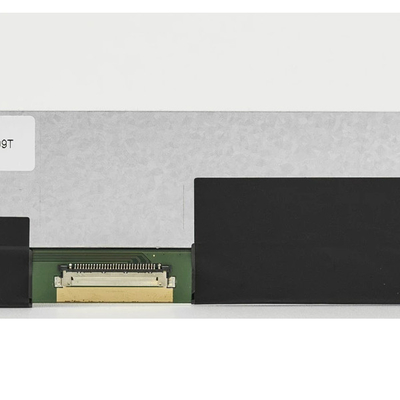

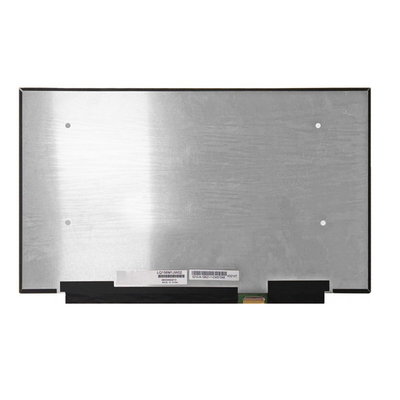

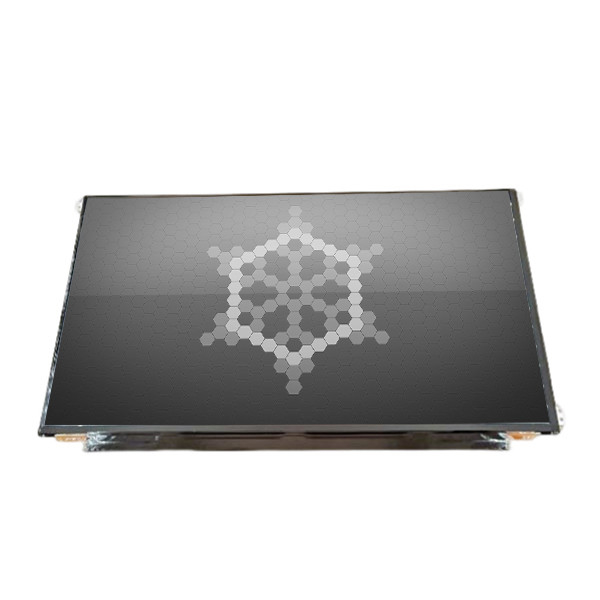

Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156M1JW02 1920*1080 Laptop Screen
Product Details:
| Place of Origin: | Sharp |
| Brand Name: | Sharp |
| Model Number: | LQ156M1JW02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LQ156M1JW02 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080, FHD, 141PPI | Active Area: | 344.16(W)×193.59(H) Mm |
| Outline Dim.: | 350.66(W)×215.54(H)×2.6(D) Mm | Display Brightness: | 470 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Designed For: | Laptop |
Product Description
Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156M1JW02 1920*1080 Laptop Screen
LQ156M1JW02 Product details :
| Sharp LCD Screen LQ156M1JW02 | |
| Panel Brand | Sharp |
| Panel Model | LQ156M1JW02 |
| Screen Size | 15.6inches |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 344.16(W)×193.59(H) mm |
| Outline(mm) | 350.66(W)×215.54(H)×2.6(D) mm |
| surface | Antiglare |
| Display brightness | 470 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) [Transmission] |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Reaction time | 30 (Typ.)(Tr+Td) ms |
| Optical mode | New Mode2, Normally Black, Transmissive |
| Number of colors | 16.7M , 100% sRGB |
| Backlight type | WLED , with LED driver |
| Refresh Rate | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal Type | eDP (2 Lanes) , eDP1.2 , 2.16G/lane , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage temperature: -25 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156M1JW02 1920*1080 Laptop Screen | |
LQ156M1JW02 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
LQ156M1JW02 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
LQ156M1JW02 About transportation
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
LQ156M1JW02 About guarantee:
1: The product is damaged during the warranty period, we can replace it for free or get a full refund. For some high-value products, the buyer needs to return the package to us.
2: Please do not raise disputes at will and give us negative feedback. Otherwise, you will lose the warranty. If the product has any problems, we will try our best to solve the problem and provide good after-sales service. Please keep in touch with us.
LQ156M1JW02 FAQ:
Q: If I order LQ156M1JW02 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of LQ156M1JW02 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: Do you accept sample orders for LQ156M1JW02 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of LQ156M1JW02 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
LQ156M1JW02 Shipping and Package :
