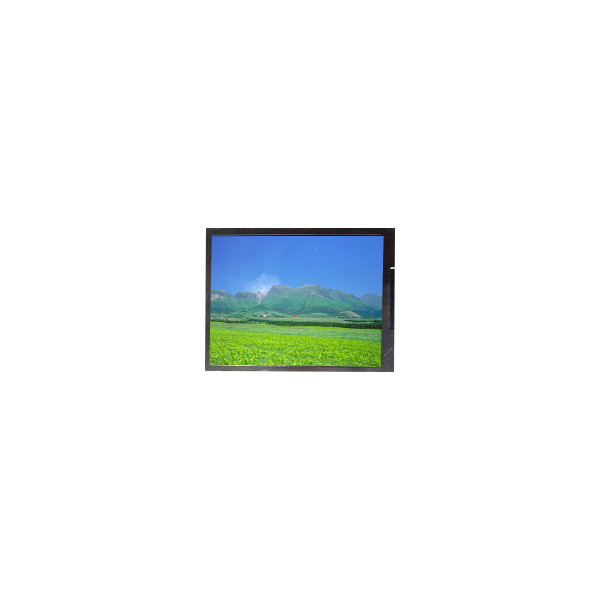

5.0 inch lcd panel ED050NA-01C 800*480 LCD Screen Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Innolux |
| Model Number: | ED050NA-01C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ED050NA-01C | Screen Size: | 5.0" |
|---|---|---|---|
| Pixel Number: | 800(RGB)×480, WVGA 188PPI | Active Area(mm): | 108(W)×64.8(H) Mm |
| Outline(mm): | 120.7(W)×76.3(H)×4.6(D) Mm | Treatment: | Antiglare, Hard Coating (3H) |
| Response Time: | 10/15 (Typ.)(Tr/Td) | Used For: | Portable Navigation、MP3 PMP |
| Touch Panel: | 4-wire Resistive Touch | Frame Rate: | 60Hz |
Product Description
5.0 inch lcd panel ED050NA-01C 800*480 LCD Screen Display
ED050NA-01C Product details :
| Brand | Innolux |
| Model P/N | ED050NA-01C |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 108(W)×64.8(H) mm |
| Bezel Opening | - |
| Outline Dim. | 120.7(W)×76.3(H)×4.6(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 50%NTSC |
| Light Source | WLED [7S2P], 2K hours, W/O Driver |
| Weight | 80.0g (Typ.) |
| Designed For | Portable Navigation,MP3 PMP |
| Frame Rate | 60Hz |
| Touch Panel | 4-wire Resistive Touch |
| Interface Type | Parallel RGB (1 ch, 6-bit), 67 pinsFPC |
| Power Supply | 3.3/10.4/16/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 85 °C |
ED050NA-01C Note:
Please confirm that the specific parts of your machine are faulty before purchasing the corresponding parts. If you cannot confirm the specific parts failure, please do not purchase it.thank you very much!
Some of the internal parts are detached from the machine, it is not full new, but has been tested and 100% working perfect. Please use it with confidence. If you do not agree please do not buy!thank you!
ED050NA-01C Kindly Reminder:
If you want to buy more quantiy,please contact us by e-mail or online contact.You can choose the shipping method you prefer.If you buy items,we will give you shipping discount!
ED050NA-01C Payment:
T/T (Wire Transfer)/Western Union/Paypal ,Escrow, ALI Trade Assurance .
ED050NA-01C Shipping and Package :
ED050NA-01C About Shipping:
Orders will be shipped in 3 business days. Free shipping items, we will shipping by Epacket, SF eParcel or China Post Registered Air Mail.if you need other shipping way, please contact me.
ED050NA-01C Reminder:
Russian Friend Pay Attention Please !!!
Please fill in receiver's full name in the order due to new policy of Russian customs,otherwise you probably won't receive package finally .
We are not responsible for nondelivery caused by that client don't provide enough information when making order.
ED050NA-01C Dear customers,
Welcome to our YONGS Official Store .It's our honor to have this opportunity for providing services for you.
All of our products are in original high quality,they are new .
Please feel free to contact us no matter what product you want to buy.
If there is anything we can help you when you shopping in our store,
please contact us.
We will offer you the best service and happy shopping experience.
Hope we can have a good start cooperation.Thank you!
Best wishes
Yours
All members of YONGS Official Store
ED050NA-01C FAQ:
Q: Do you accept sample orders of ED050NA-01C ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of ED050NA-01C vai credit card ?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of ED050NA-01C ?
A: The order will be shipped within 2-3 working days after received your payment.
