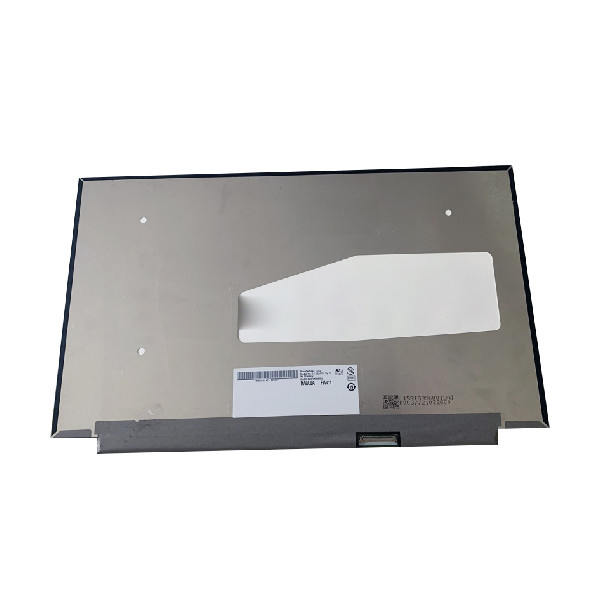

AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN10.0 1920*1080 40 pins
Product Details:
| Place of Origin: | Sharp |
| Brand Name: | AUO |
| Model Number: | B156HAN10.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | B156HAN10.0 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080, FHD, 141PPI | Active Area: | 344.16(W)×193.59(H) Mm |
| Outline Dim.: | 350.66(W)×216.15(H)×3(D) Mm | Display Brightness: | 500 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Designed For: | Laptop Gaming |
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN02.2 HWAA 40 pins LCD SCREEN
B156HAN10.0 Product details :
| AUO LCD SCREEN B156HAN10.0 | |
| Panel Brand | AUO |
| Panel Model | B156HAN10.0 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Outline Size | 350.66(W)×216.15(H)×3(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (Transmission) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 9 (Typ.)(Tr+Td); 3 (Typ.)(G to G)(OD) ms |
| Lamp Type | WLED , 15K hours, with LED driver |
| Display Colors | 1.07B 100% sRGB |
| Frequency | 144Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop Gaming |
| Signal Interface | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating: 0 ~ 50 °C ; Storage: -25 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN10.0 1920*1080 40 pins | |
B156HAN10.0 Note:
1: This product is a display screen, which needs to be installed by professionals. Please purchase with caution, thank you!
2: Purchasing this product, according to the buyer's choice of logistics, we will send it out within 48 hours, if there is a delay, please wait for the tracking information to prevail!
3: After receiving the product, if there is a problem, please contact customer service to solve it!
4: Our company is located in Shenzhen, China, and has the most advantageous resources. Wholesale more models display screen, If you have other needs, please contact customer service to obtain information and quotations!
B156HAN10.0 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
B156HAN10.0 About transportation
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
B156HAN10.0 About guarantee:
1: The product is damaged during the warranty period, we can replace it for free or get a full refund. For some high-value products, the buyer needs to return the package to us.
2: Please do not raise disputes at will and give us negative feedback. Otherwise, you will lose the warranty. If the product has any problems, we will try our best to solve the problem and provide good after-sales service. Please keep in touch with us.
B156HAN10.0 FAQ:
Q: If I order B156HAN10.0 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of B156HAN10.0 at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of B156HAN10.0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of B156HAN10.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
B156HAN10.0 Shipping and Package :
