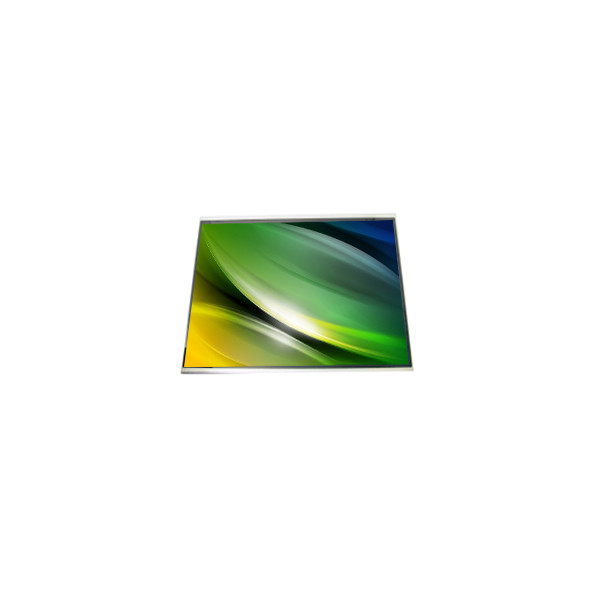

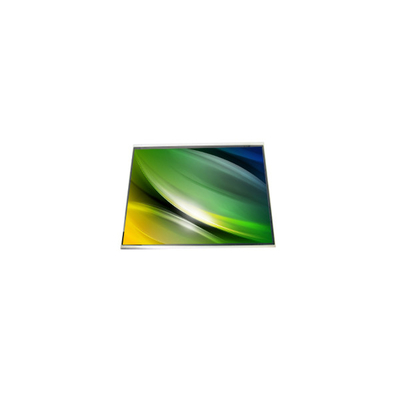

5.3 inch lcd panel HSD053B8W1-C10 480*854 LCD Screen Display module
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HannStar |
| Model Number: | HSD053B8W1-C10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | HSD053B8W1-C10 | Diagonal Size: | 5.3" |
|---|---|---|---|
| Pixel Format: | 480(RGB)×854, FWVGA 186PPI | Active Area: | 65.52(W)×116.571(H) Mm |
| Outline Dim.: | 68.61(W)×124.68(H)×0.5(D) Mm | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) |
| Best View On: | 6 O'clock | Designed For: | Mobile Phone |
| Glass Depth: | 0.25+0.25 Mm | Transmissivity: | 4.74% (Typ.)(with Polarizer) |
Product Description
5.3 inch lcd panel HSD053B8W1-C10 480*854 LCD Screen Display module
HSD053B8W1-C10 Product details :
| Brand | HannStar |
| Model P/N | HSD053B8W1-C10 |
| Diagonal Size | 5.3" |
| Panel Type | a-Si TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 480(RGB)×854, FWVGA 186PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 65.52(W)×116.571(H) mm |
| Bezel Opening | - |
| Outline Size | 68.61(W)×124.68(H)×0.5(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Glass Depth | 0.25+0.25 mm |
| Transmissivity | 4.74% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 60%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COG Suggest HX8379-A, NT35510, NT35510S, NT35512, OTM8009A, OTM8018B, RM68171, RM68180 |
| Panel Weight | - |
| Application | Mobile Phone |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
HSD053B8W1-C10 TIPS:
1. It's necessary and important to shoot a video when you unpack the package, and it will be a valid evidence when you receive damaged lcds.
2.Please test it before your installation. (Remember!!!)
3.If you are not good at replacing the LCD, please do it by a professional person or repair shop.
4.LCD is Fragile and easily broken or work unproperly by installation mistakes.
5.We test 3 times before shippment,If you can't provide the video,we couldn't believe it is.We are not responsible for any installation mistakes.
6.If item is defective after geting porducts, you can still send it back to us. We will send you a new one after receiving the defective item.
But you have to make sure the screen on good condition of sure face.
HSD053B8W1-C10 Shipping and Package :
HSD053B8W1-C10 Shipping:
1.All items are in stock and are dispatched to you within 3 days after your payment.
2.Please note that items purchased on holiday are dispatched the next working day.
3.If you have not receive the goods within 30 working days after payment for China post or other, please contact us.We will track the parcel from our agent and reply you ASAP.
4.You can choose China post, ePack,EMS,DHL,UPS etc base on your needs.
5.Any other questions or problems please feel free to contact me.
HSD053B8W1-C10 Warranty:
1.6 months. Buy with confidence!
2.If item is defective in 3 months, we will send you a replacement without extra charger, or offer refund after we receive the defective item.
3.If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee.
HSD053B8W1-C10 FAQ:
Q: How long will I receive my goods HSD053B8W1-C10 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q:If I place order now,when will you ship the goods of HSD053B8W1-C10 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q:Do you accept sample orders of HSD053B8W1-C10 ?
A:Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
