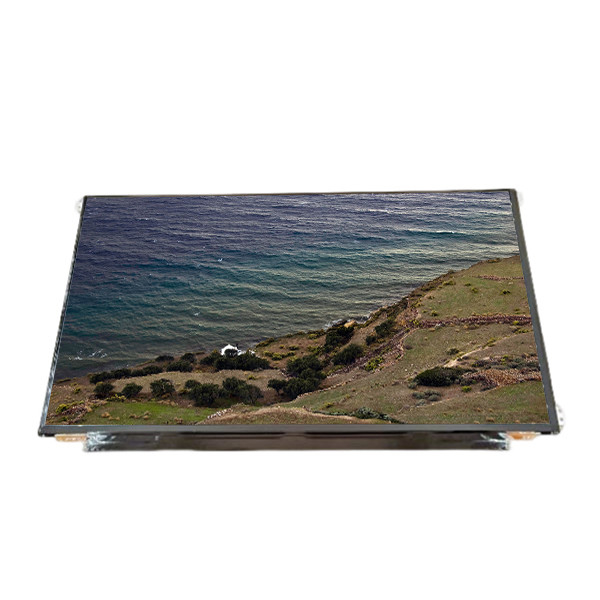

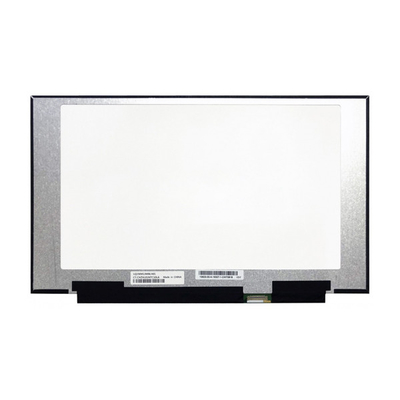

Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156M1JW06 1920*1080 141PPI
Product Details:
| Place of Origin: | Sharp |
| Brand Name: | Sharp |
| Model Number: | LQ156M1JW06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LQ156M1JW06 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080, FHD, 141PPI | Active Area: | 344.16(W)×193.59(H) Mm |
| Outline Dim.: | 350.66(W)×215.54(H)×2.6(D) Mm | Reaction Time: | 8 (Typ.)(Tr+Td) Ms |
| Viewing Angle: | 89/89/89/89 (Typ.) (CR≥10) | Designed For: | Laptop / Gaming |
Product Description
Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156D1JX41 3840*2160 400 cd/m lcd screen
LQ156M1JW06 Product details :
| Sharp LCD Screen LQ156M1JW06 | |
| Panel Brand | Sharp |
| Panel Model | LQ156M1JW06 |
| screen size | 15.6 inches |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 344.16(W)×193.59(H) mm |
| Outline Size | 350.66(W)×215.54(H)×2.6(D) mm |
| Surface | Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| View Direction | Symmetry |
| Reaction time | 8 (Typ.)(Tr+Td) ms |
| Optical mode | New Mode2, Normally Black, Transmissive |
| Number of colors | 16.7M |
| Backlight type | WLED , with LED driver |
| Frequency | 240Hz |
| Touch Panel | Without |
| Light Source | WLED , With LED Driver |
| Appearance style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop / Gaming |

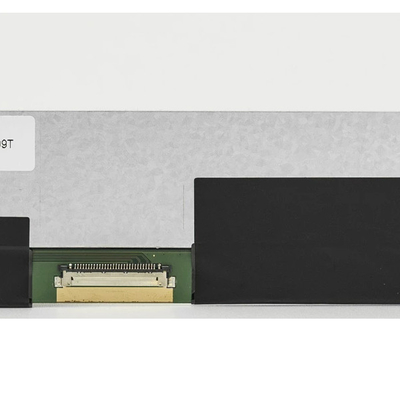

| Signal | eDP (4 Lanes) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating: 0 ~ 50 °C ; Storage: -25 ~ 60 °C |
| Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156M1JW06 1920*1080 141PPI | |
LQ156M1JW06 Note:
1: This product is a display screen, which needs to be installed by professionals. Please purchase with caution, thank you!
2: Purchasing this product, according to the buyer's choice of logistics, we will send it out within 48 hours, if there is a delay, please wait for the tracking information to prevail!
3: After receiving the product, if there is a problem, please contact customer service to solve it!
4: Our company is located in Shenzhen, China, and has the most advantageous resources. Wholesale more models display screen, If you have other needs, please contact customer service to obtain information and quotations!
LQ156M1JW06 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
LQ156M1JW06 Shipment:
1.- We can ship the products all the world.
2.- DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.- The item will be sent out with 3days after receiving the payment.
4.- Please make sure your delivery address and contact telephone number are correct when you bid the item.
5.- You can track the situation of your product on website after they are shipped out
LQ156M1JW06 Warranty:
1.- 90days' warranty..
2.-If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition)
3.-We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost( from us to your location); After 1 month of purchase, the buyer need to pay two ways of shipping cost.
4.- One we get the returned items, we will send the replaced ones back as soon as possible.
5.-Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or
improper installation on the parts
LQ156M1JW06 FAQ:
Q: Can I pay my goods LQ156M1JW06 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods LQ156M1JW06 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Can you give me a discount if I need a large quantity of LQ156M1JW06 ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
LQ156M1JW06 Shipping and Package :
