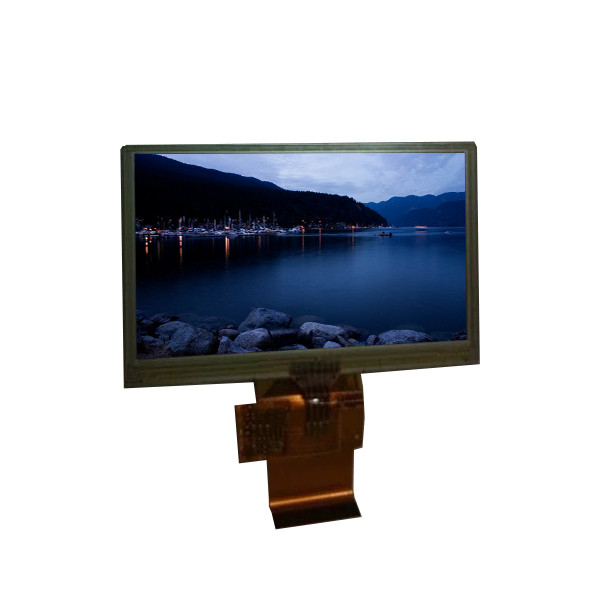

4.3 inch auo lcd panel A043FL02 V1
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | A043FL02 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | A043FL02 V1 | Panel Size: | 4.3" |
|---|---|---|---|
| Resolution: | 480(RGB)×272, WQVGA, 128PPI | Display Area: | 95.04(W)×53.856(H) Mm |
| Outline Size: | 104.8(W)×66.5(H)mm | Touch Screen: | On-Cell Touch |
| Panel Weight: | TBD | Application: | Portable Navigation / MP3 PMP |
Product Description
4.3 inch auo lcd panel A043FL02 V1
A043FL02 V1 Product details :
| AUO LCD SCREEN A043FL02 V1 | |
| Panel Brand | Innolux |
| Panel Model | A043FL02 V1 |
| Panel Size | 4.3" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 480(RGB)×272 [WQVGA] 128PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 95.04 × 53.856 mm (H×V) |
| Outline Size | 104.8(W)×66.5(H) mm |
| Surface | Matte (Haze 25%), Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) [Transmission] |
| Viewing Angle | 60/60/40/55 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 15/20 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M |
| Lamp Type | 7S1P WLED , 10K hours, no driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 56.0g |
| Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI , FPC , 50 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: -20 ~ 70 °C ; Storage temperature: -30 ~ 80 °C |
| 4.3 inch auo lcd panel A043FL02 V1 | |
