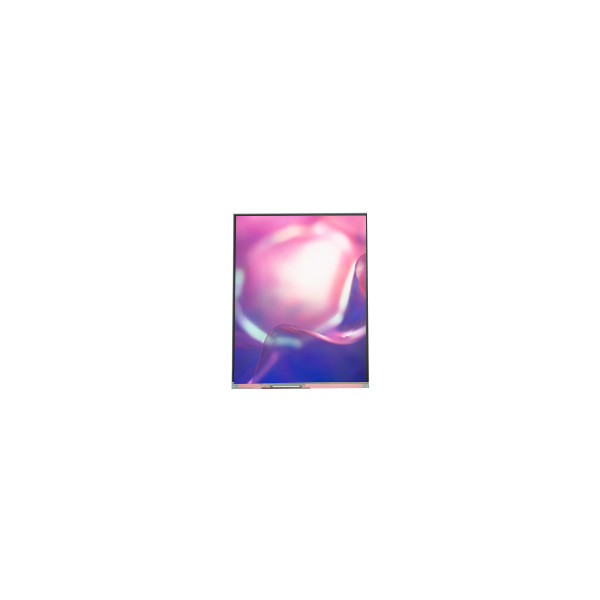

6.4 inch 1080*1920 lcd panel LS064T3SX02 LCD Displays Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Sharp |
| Model Number: | LS064T3SX02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LS064T3SX02 | Diagonal Size: | 6.4" |
|---|---|---|---|
| Pixel Format: | 1080(RGB)×1920, FHD 342PPI | Active Area: | 80.19(W)×142.56(H) Mm |
| Outline Dim.: | 82.99×150.36 (H×V×D) | Luminance: | 420 Cd/m² (Typ.) |
| Viewing Angle: | 80/80/80/80 (Min.)(CR≥10) | Designed For: | Mobile Phone |
| Color Depth: | 16.7M 79%NTSC | Refresh Rate: | 60Hz |
Product Description
6.4 inch 1080*1920 lcd panel LS064T3SX02 LCD Displays Screen
LS064T3SX02 Product details :
| Brand | Sharp |
| Model P/N | LS064T3SX02 |
| Diagonal Size | 6.4" |
| Panel Type | CG-Silicon, LCM |
| Resolution | 1080(RGB)×1920, FHD 342PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 80.19(W)×142.56(H) mm |
| Bezel Opening | - |
| Outline (mm) | 82.99×150.36 (H×V×D) |
| Treatment | - |
| Luminance | 420 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Response | 12 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | Normally Black, Transmissive |
| Color Depth | 16.7M 79%NTSC |
| Backlight | 8S2PWLED, No Driver |
| Mass | 28.0g (Typ.) |
| Used for | Mobile Phone |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | MIPI (2 ch, 4 data lanes), Connector30 pins |
| Voltage Supply | 1.8/5.6/-5.6V (Typ.)(VDDIO/VSP/VSN) |
| Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C |
| Low Price LS064T3SX02 6.4 inch LCD Display Screen for Phone | |
LS064T3SX02 About testing:
We will test all LCD screens before sending them out,so don't worry! We will ask the warehouse to test carefully so that you can shop at ease
LS064T3SX02 Important:
Specific LCD Screen models can come in many sizes and resolutions. LCD Screen resolution should not beupgraded or downgraded. You must confirm that this screen matches your machine in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
LS064T3SX02 Shipping and Package :
LS064T3SX02 Payment & Shipping:
1.We accept Credit card,PayPal payment and bank transfer.Items are only shipped after payments received.
2.We can ship your orders only to your confirmed address.Your address and full name must match your shipping address.
3.The buyer is responsible for any applicable import duties and local taxes.Please verify your customs duties before purchase.
4.If you don't receive your item on time ,please contact us immediaately for further assistance.
5.Items shipped from our Shenzhen factory warehouse.It usually takes approximately 7-15 days to receive order, not include weekend and holiday. Delivery time depends on postal process and other factors, it may takes up to 22 business days. Please check the details on the table below.
LS064T3SX02 Return Policy:
We provide a free 30 DAY WARRANTY for this item.
The buyer must contact us within 3 days of delivery if they wish to exchange defective or incorrectly shipped items.
Please Note: We do not cover any items for damage after use or as the result of water damage.
Should returns be required:
Step 1 Contact us via message center
Step 2 Provide as much detail as possible about the problem you are having
Step 3 Authorization to return the item will be issued
Step 4 Return the item for the agreed exchange or refund
*All return shipping costs are the responsibility of the buyer.
LS064T3SX02 Import Taxes or Duties:
1.-Import duties, taxes and other charges happened in your side are not included in the price of the item. These fees are afforded by buyer.
2.- Please check with you country's Customs office to determine what these additional costs will be before purchase.
3.-Please confirmed detailed information about delivery invoice. For example, how much price we should write on the waybill invoice, or how to describe the item, etc..
LS064T3SX02 FAQ:
Q: Can I pay my goods LS064T3SX02 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods LS064T3SX02 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Can you give me a discount if I need a large quantity of LS064T3SX02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
Q: How long will I receive my goods of LS064T3SX02 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
