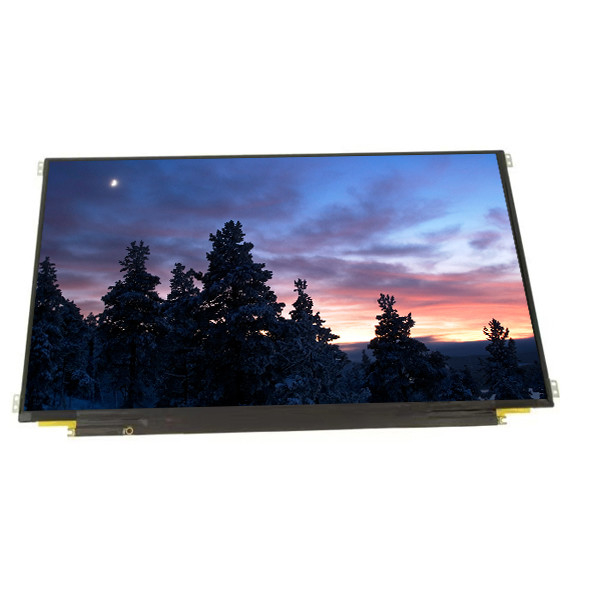

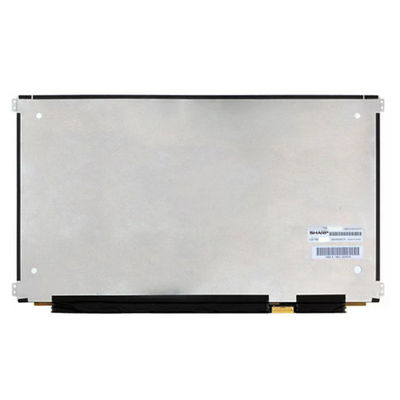

Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156Z1JW03B 3200*1800 LCD screen
Product Details:
| Place of Origin: | Sharp |
| Brand Name: | Sharp |
| Model Number: | LQ156Z1JW03B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LQ156Z1JW03B | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 3200(RGB)×1800 [Quad-HD+] 235PPI | Active Area: | 345.6(W)×194.4(H) Mm |
| Outline Dim.: | 367.98(H)×218.21(V) ×2.85(D) Mm | Luminance: | 300 Cd/m² (Typ.) |
| Viewing Angle: | 80/80/80/80 (Typ.) (CR≥10) | Designed For: | Laptop |
Product Description
Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156Z1JW03B 3200*1800 LCD screen
LQ156Z1JW03B Product details :
| Sharp LCD Screen LQ156Z1JW03B (SHP141C) | |
| Panel Brand | Sharp |
| Panel Model | LQ156Z1JW03B (SHP141C) |
| screen size | 15.6 inches |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 3200(RGB)×1800 [Quad-HD+] 235PPI |
| Pixel configuration | RGB vertical bars |
| Display size | 345.6(W)×194.4(H) mm |
| Outline Dim. | 367.98(H)×218.21(V) ×2.85(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) [Transmission] |
| Viewing Angle | 80/80/80/80 (Typ.) (CR≥10) |
| View Direction | Symmetry |
| Reaction time | 25 (Typ.)(Tr+Td) ms |
| Optical mode | New Mode, Normally Black, Transmissive |
| Number of colors | 16.7M , 100% sRGB |
| Backlight type | WLED , with LED driver |
| Touch Panel | Without |
| Frame Rate | 60Hz |
| Appearance style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |

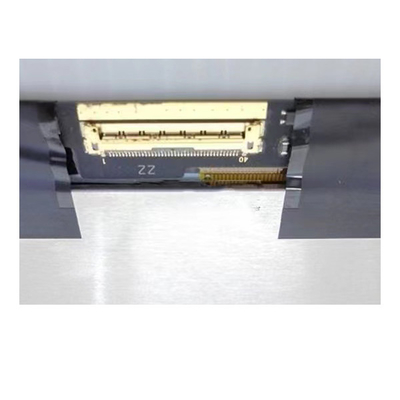

| Signal | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating: 0 ~ 50 °C Storage: -20 ~ 60 °C |
| Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156Z1JW03B 3200*1800 LCD screen | |
LQ156Z1JW03B Buyer Notice:
1. We are not responsible for any customs or import duties.
2.We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model
3.For all the problems, please do not leave negative feedback or open dispute before contacting us, Please send us message via AliExpress and we will solve the problem for you immediatel
4. Product grades are available A+ (perfect) and A- (defective/imperfect) to meet various customer needs.
5. Provide a 90-day warranty time, man-made damage and natural disasters are not covered by the warranty! (calculated from the time the goods arrive at the destination).
LQ156Z1JW03B Shipment:
1.- We can ship the products all the world.
2.- DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.- The item will be sent out with 3days after receiving the payment.
4.- Please make sure your delivery address and contact telephone number are correct when you bid the item.
5.- You can track the situation of your product on website after they are shipped out
LQ156Z1JW03B Warranty:
1.- 90days' warranty..
2.-If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition)
3.-We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost( from us to your location); After 1 month of purchase, the buyer need to pay two ways of shipping cost.
4.- One we get the returned items, we will send the replaced ones back as soon as possible.
5.-Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or
improper installation on the parts
LQ156Z1JW03B FAQ:
Q:If I place order now,when will you ship the goods of LQ156Z1JW03B ?
A: The order will be shipped within 2-3 working days after received your payment.
Q:Can you give me a discount if I need a large quantity of LQ156Z1JW03B ?
A:Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods LQ156Z1JW03B ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q:How to make payment of LQ156Z1JW03B ?
A:We accept T/T , Paypal , western union .
LQ156Z1JW03B Shipping and Package :
