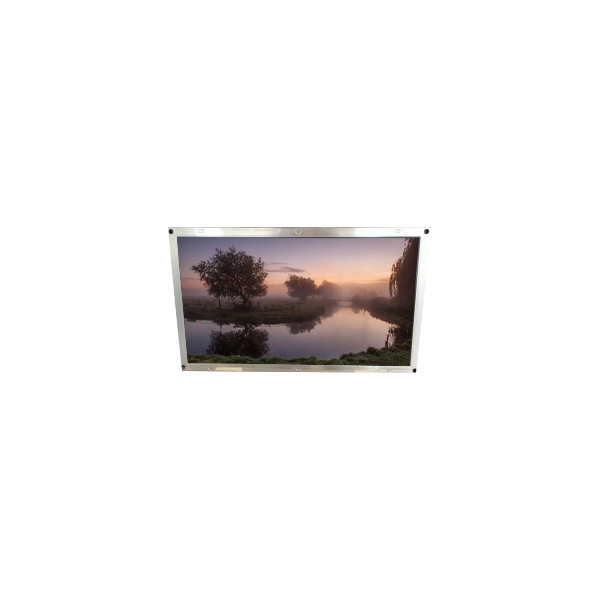

23.0 inch 1080p lcd panel LTM230HL06-V01 75Hz LCD Module
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Samsung |
| Model Number: | LTM230HL06-V01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LTM230HL06-V01 | Panel Size: | 23.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 95PPI | Display Area: | 509.184(W)×286.416(H) Mm |
| Bezel Opening: | 513.8(W)×291.0(H) Mm | Outline Size: | 534(W)×311.7(H) ×11(D) Mm |
| View Direction: | Symmetry | Application: | Desktop Monitor |
| Power Supply: | 5.0V (Typ.) | Environment: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Product Description
23.0 inch 1080p lcd panel LTM230HL06-V01 75Hz LCD Module
LTM230HL06-V01 Product details :
| Brand | Samsung |
| Model P/N | LTM230HL06-V01 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | 513.8(W)×291.0(H) mm |
| Outline Dim. | 534(W)×311.7(H) ×11(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 12 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | SVA, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | 11S3P WLED , 40K hours , Without Driver |
| Weight | 2.30Kgs (Max.) |
| Designed For | Desktop Monitor |
| Frame Rate | 75Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
LTM230HL06-V01 Payment:
1.- Please make sure your payment account is available before you bid the item.
2.-All payments should be cleared within 7days after you receive the item.
If you really have difficulty in paying the item, please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
LTM230HL06-V01 Shipping and Package :
LTM230HL06-V01 Shipping Method delivery time Postage:
Standard Normal
airmail
7-22 days
to USA Australia New Zealand Canada
10-28 days
to UK South Africa European South American
Speed post 3-7 bussiness days Please confirm fee with me before buying
LTM230HL06-V01 Returns & Warranty:
1.All of our brand new items come with a 30-Days money-back guarantee.
2.We will replace the defective items,provided that they are in stock within the warranty period posted with the listing and the buyer return the original item and pay for the S&H cost for the replacement.
3.We will refund the purchase price if the replacement is not available or buyer prefers a refund and send the original item back at his/her own cost.
4.Shipping & handling cost are not refundable.
5.Man-made damage by abuse or wrong operation is not covered by this warranty.
6.No product liability insurance is assumed.
LTM230HL06-V01 FAQ:
Q: Do you accept sample orders of LTM230HL06-V01 ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of LTM230HL06-V01 vai credit card ?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of LTM230HL06-V01 ?
A: The order will be shipped within 2-3 working days after received your payment.
