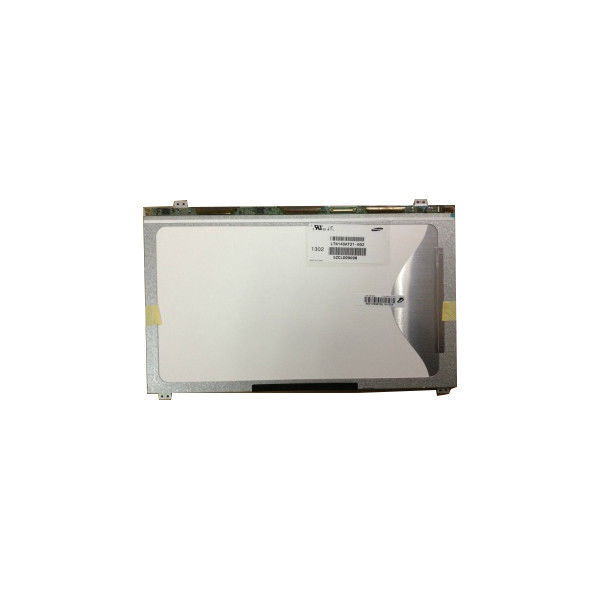

14.0 inch lcd panel LTN140AT21-002 1366*768 Laptop LCD Module
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Samsung |
| Model Number: | LTN140AT21-002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LTN140AT21-002 | Panel Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 112PPI | Active Area: | 309.399(W)×173.952(H) Mm |
| Brightness: | 220 Cd/m² (Typ.) | Frame Rate: | 60Hz |
| Lamp Type: | WLED [8S4P], 10K Hours, With LED Driver | Application: | Laptop |
| Interface Type: | LVDS (1 Ch, 6-bit), 40 PinsConnector | Environment: | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
Product Description
14.0 inch lcd panel LTN140AT21-002 1366*768 Laptop LCD Module
LTN140AT21-002 Product details :
| Brand | Samsung |
| Model P/N | LTN140AT21-002 |
| Diagonal Size | 14.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1366(RGB)×768, WXGA 112PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 309.399(W)×173.952(H) mm |
| Bezel Opening | - |
| Outline Dim. | 323.5(H)×191.9(V)×4(D) mm |
| Treatment | - |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Min.) (TM) |
| View Direction | - |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 40/40/15/30 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45%NTSC |
| Light Source | WLED [8S4P], 10K hours, With LED Driver |
| Form Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit), 40 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C |
LTN140AT21-002 Kindly Reminder:
If you want to buy more quantiy,please contact us by e-mail or online contact.You can choose the shipping method you prefer.
LTN140AT21-002 Payment:
1.Generally, we accept the following payment methods: credit card;webmoney;T/T;western union and other methods as below.
2.Our protection only gives the payment ways acceped by PayPal platform.
LTN140AT21-002 Shipping and Package :
LTN140AT21-002 Shipment:
1.Please confirm your address and full name with your phone number carefully once you make the order.
2.We will sent the items within 2-5 days (working days,Not holiday seasons) after the payment being confirmed by the platform.
3.The shipment by China Post Registered Air Mail for less than 2kg goods in 15-40 working days (except holiday). If you need the item urgently, please contact us for express shipping. We will calculate the express shipping cost for you.
4. When you receive the items you ordered in 24 hours, please check it carefully.Please contact us directly if you have any problems.
5. If you have not got it within the shipping time,please contact us without hesitation. We will check it for you with the post office and customs.
LTN140AT21-002 Return Policy:
1.Please contact us within 7 days if you have any question after you receiving the items.
2.The returned items has to be in its original condition and you must provide us with the shipping tracking number,specific reason for the return,We will issue a return or replacement for your oder after we received the returns.
LTN140AT21-002 FAQ:
Q: Do you accept sample orders of LTN140AT21-002 ?
A: Of course! Sample order is welcome.
Q: Can I pay my order of LTN140AT21-002 vai credit card?
A: Yes! You can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90 days warranty.
Q: If I place order now, when will you ship the goods of LTN140AT21-002 ?
A: The order will be shipped within 2-3 working days after received your payment.
