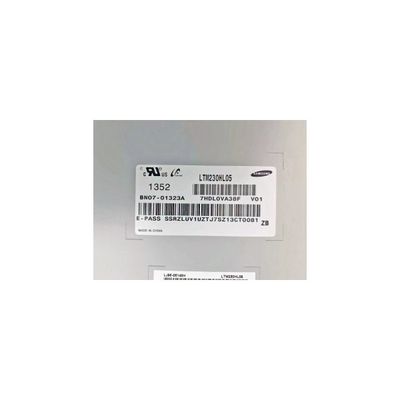

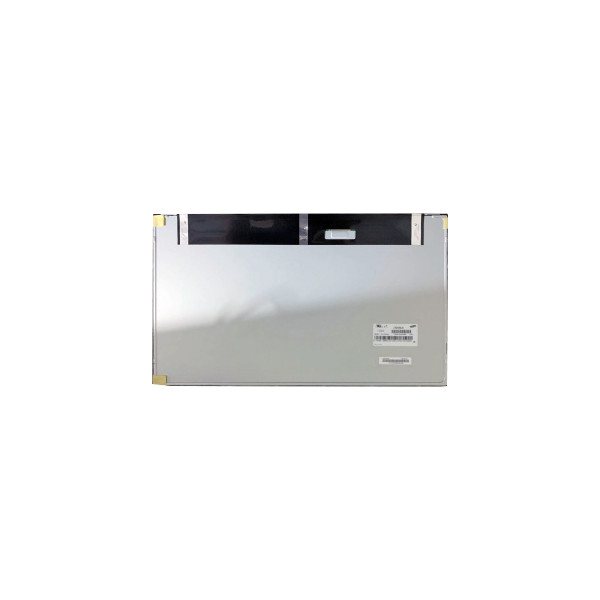

LTM230HL05-V01 23.0 inch LCD module Suitable for Desktop Monitor
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Samsung |
| Model Number: | LTM230HL05-V01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LTM230HL05-V01 | Diagonal Size: | 23.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 95PPI | Active Area: | 509.184(W)×286.416(H) Mm |
| Luminance: | 250 Cd/m² (Typ.) | Response Time: | 12 (Typ.)(G To G) Ms |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Designed For: | Desktop Monitor |
| Refresh Rate: | 60Hz | Signal Type: | LVDS (2 Ch, 8-bit), 30 Pins Connector |
Product Description
LTM230HL05-V01 23.0 inch LCD module Suitable for Desktop Monitor
LTM230HL05-V01 Product details :
| Brand | Samsung |
| Model P/N | LTM230HL05-V01 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | 513.8(W)×291.0(H) mm |
| Outline(mm) | 534 × 311.7× 11 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 12 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | SVA, Normally Black, Transmissive |
| Color Depth | 16.7M 72%NTSC |
| Backlight | 12S3PWLED, 40K hours, No Driver |
| Mass | 2.30Kgs (Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
LTM230HL05-V01 Important:
Specific LCD models can come in many sizes and resolutions. LCD Screen resolution should not beupgraded or downgraded. You must confirm that this screen matches your LCD Screen in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
LTM230HL05-V01 Our advantages:
1. The LCD screens you purchase are 100% original.
2. Our goods are in stock and shipped within 24 hours.
3. The customer installs independently and provides the installation tutorial instructions.
4. Our packaging is professionally customized and very safe! Each package will have a fragile label.
5. Product grades are available A+ (perfect) and A- (defective/imperfect) to meet various customer needs.
6. We provide professional after-sales service, 24 hours a day for customer service, and provide a 90-day warranty (calculated from the time the goods arrive at the destination).
LTM230HL05-V01 NOTE:
Before you ordered , in case of any mistake & trouble in our business , please mail us as below information for double confirming to win this deal together.We will sendthe compatible oneinstead ifthe original oneout of stock . If you can't accept it , please don't make the order . Thanks for your understanding .
LTM230HL05-V01 Shipping and Package :
LTM230HL05-V01 Shipping:
1.Terms of Shipment:
Before ordering please contact us to confirm your preferred shipment method. Items are only shipped after payment is confirmed by Escrow.
2.Shipping Companies:
We support shipment by "EMS" "DHL" "China Post Air Mail ",If you need help selecting a fast and reliable shipping company, please contact us direct and we will do our best to help.
LTM230HL05-V01 FAQ:
Q: Can you give me a discount if I need a large quantity of LTM230HL05-V01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LTM230HL05-V01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of LTM230HL05-V01 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90 days warranty .
