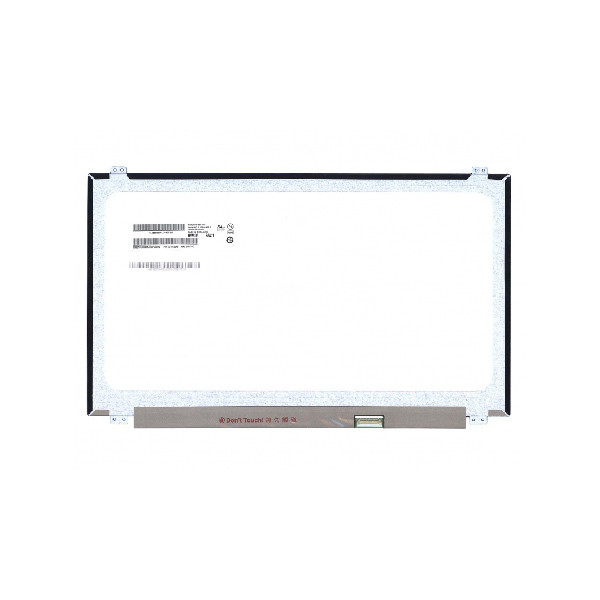

AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN06.1 HW0A 1920*1080 141PPI
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HAN06.1 HW0A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B156HAN06.1 HW0A | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080, FHD, 141PPI | Active Area(mm): | 344.16(W)×193.59(H) Mm |
| Outline(mm): | 350.66 × 206.84 × 5.4 (H×V×D) Mm | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Number Of Colors: | 262K | Used For: | Laptop |
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN06.1 HW0A 1920*1080 141PPI
B156HAN06.1 Product details :
| AUO LCD Screen B156HAN06.1 HW0A | |
| Panel Brand | AUO |
| Panel Model | B156HAN06.1 HW0A |
| screen size | 15.6 inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel configuration | RGB vertical bars |
| Display size | 344.16 × 193.59 (H×V) mm |
| physical dimension | 350.66 × 206.84 × 5.4 (H×V×D) mm |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response Time | 25(Typ.)(Tr+Td) ms |
| display mode | AHVA, Normally Black, Transmissive |
| Number of colors | 262K |
| Backlight type | WLED , 15K hours, with LED driver |
| refresh rate | 60Hz |
| Designed For | Laptop |

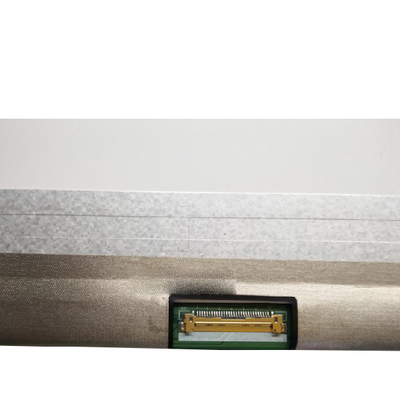

| signal system | (2 Lanes) , 30 pins , terminal |
| Supply voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN06.1 HW0A 1920*1080 141PPI | |
B156HAN06.1 Attention:
We will send compatible model based on inventory.If you don't accept it ,please do not order it.Thanks
B156HAN06.1 NOTE:
Before you ordered , in case of any mistake & trouble in our business , please mail us as below information for double confirming to win this deal together.
•1-->LCD model name in your hand now ,such as : LP140WH1-TLA1
•2-->Your laptop name ,such as : DV3000 ......
•3-->Send above information to our mail and we will response you within 24 hours for quick and right deal ,thanks !
B156HAN06.1 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
B156HAN06.1 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility
B156HAN06.1 Information:
We accept Escrow service, T/T(Telegraphic Transfer), Western Union, Paypal, MoneyGram, China Bank Transfer.
B156HAN06.1 Shipping:
1.We support shipment by AliExpress Premium Shipping ,ePacket, Russia Express-SPSR, Singapore Post, EMS, Fedex IE etc. If dear friend want to select a fast and reliable shipping company, please feel free to contast us directly after paying. We will do our utmost to serve you.
2.Time of delivery depends on the destination country and location.
3.Your parcel will be shipped out within 1-2 workdays after after receiving cleared payment , if the order is made on Chinese holiday, it will be shipped out on next working day. Once we ship the items we will provide you with tracking number
4.General shipping time
1)Expited Shipping:
DHL,UPS,TNT,Fedex,to worldwide 3-7 Days.
2)Standard Shipping Method:
European Countres : Russia,Spain,UK,France,Netherlands etc 10-20 days
North Ameriacan Countries: USA,Canada, etc 7-20 days.
Asia Countries:Singapore,Malaysia,Japan,India,etc 13-20 days
Other Remote Countries: 25-45 days
B156HAN06.1 Return:
- Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
- Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
B156HAN06.1 Feedback:
- To appreciate your business, any paying customer will receive a positive feedback.
- We fail when you consider to leave any feedback other than positive one. In this case, we would like you to kindly let us know how we could improve our service to better serve you. Thank you in advance.
B156HAN06.1 FAQ:
Q: How to order AUO B156HAN06.1 HW0A ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: When will ship my order of B156HAN06.1 HW0A ?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you test 15.6 inch lcd panel B156HAN06.1 HW0A before shipping ?
A: Don't Worry , Our AUO lcd B156HAN06.1 HW0A was tested ok before shipping
Q: Can you declared low value for my order lcd panel B156HAN06.1 HW0A ?
A: Yes we can , but you need to leave message to us before shipping .
B156HAN06.1 Shipping and Package :
