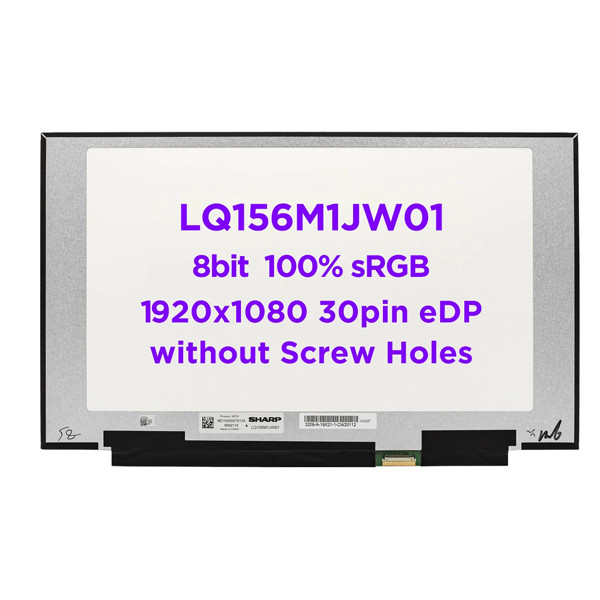

Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156M1JW01 Notebook screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Sharp |
| Model Number: | LQ156M1JW01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ156M1JW01 | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080, FHD, 141PPI | Active Area(mm): | 344.16(W)×193.59(H) Mm |
| Outline(mm): | 350.66(W)×215.54(H)×2.6(D) Mm | Viewing Angle: | 89/89/89/89 (Typ.) (CR≥10) |
| Number Of Colors: | 16.7M , 100% SRGB | Used For: | Laptop |
Product Description
Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156M1JW01 Notebook screen
LQ156M1JW01 Product details :
| Sharp LCD Screen LQ156M1JW01 (SHP14C3) | |
| Panel Brand | Sharp |
| Panel Model | LQ156M1JW01 (SHP14C3) |
| Panel Size | 15.6inches |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel configuration | RGB vertical bars |
| Display size | 344.16(W)×193.59(H) mm |
| Outline Size | 350.66(W)×215.54(H)×2.6(D) mm |
| Surface | Antiglare, Hard coating (2H) |
| Display brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) [Transmission] |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Reaction time | 30 (Typ.)(Tr+Td) ms |
| Optical mode | New Mode2, Normally Black, Transmissive |
| Number of colors | 16.7M , 100% sRGB |
| Backlight type | WLED , 15K hours, with LED driver |
| Frequency | 60Hz |
| Touch Panel | Without |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |

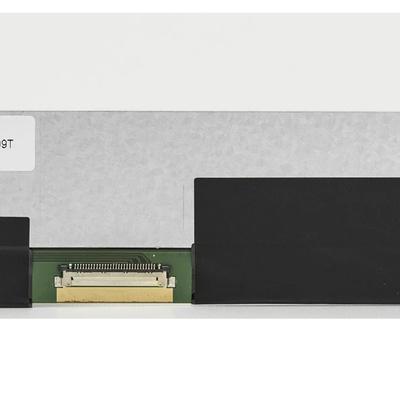

| Signal Interface | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| working | Operating: 0 ~ 50 °C ; Storage: -25 ~ 60 °C |
| Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156M1JW01 Notebook screen | |
LQ156M1JW01 Attention:
We will send compatible model based on inventory.If you don't accept it ,please do not order it.Thanks
LQ156M1JW01 NOTE:
Before you ordered , in case of any mistake & trouble in our business , please mail us as below information for double confirming to win this deal together.
•1-->LCD model name in your hand now ,such as : LP140WH1-TLA1
•2-->Your laptop name ,such as : DV3000 ......
•3-->Send above information to our mail and we will response you within 24 hours for quick and right deal ,thanks !
LQ156M1JW01 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
LQ156M1JW01 Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility
LQ156M1JW01 Information:
We accept Escrow service, T/T(Telegraphic Transfer), Western Union, Paypal, MoneyGram, China Bank Transfer.
LQ156M1JW01 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
LQ156M1JW01 Return:
- Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
- Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
LQ156M1JW01 Feedback:
- To appreciate your business, any paying customer will receive a positive feedback.
- We fail when you consider to leave any feedback other than positive one. In this case, we would like you to kindly let us know how we could improve our service to better serve you. Thank you in advance.
LQ156M1JW01 FAQ:
Q: Can I pay my order of LQ156M1JW01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of LQ156M1JW01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of LQ156M1JW01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods LQ156M1JW01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
LQ156M1JW01 Shipping and Package :
