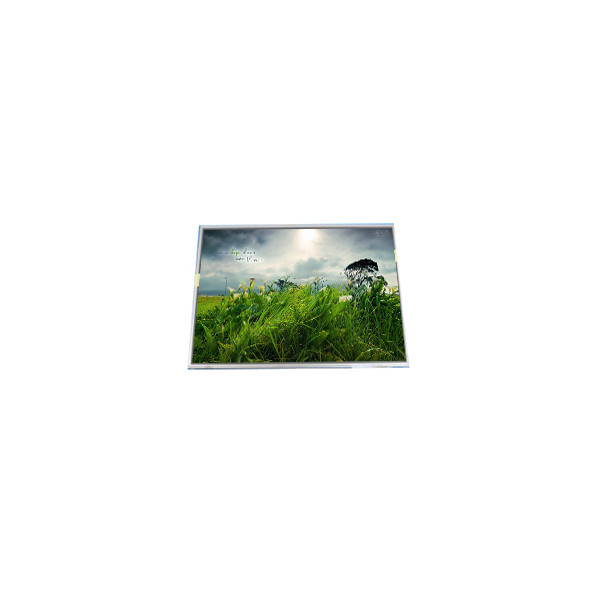

5.0 inch lcd panel GP050GAILS0020V01 720*1280 LCD module
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JDI |
| Model Number: | GP050GAILS0020V01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | GP050GAILS0020V01 | Panel Size: | 5.0" |
|---|---|---|---|
| Resolution: | 720(RGB)×1280, WXGA 294PPI | Active Area: | 62.1(W)×110.4(H) Mm |
| Outline Size: | 64.5(W)×117.59(H)×0.4(D) Mm | Display Colors: | 71%NTSC |
| Surface: | Without Polarizer | Application: | Mobile Phone |
| Transmissivity: | 4.1% (Typ.)(with Polarizer) | Environment: | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
Product Description
5.0 inch lcd panel GP050GAILS0020V01 720*1280 LCD module
GP050GAILS0020V01 Product details :
| Brand | JDI |
| Model P/N | GP050GAILS0020V01 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, CELL, COG |
| Resolution | 720(RGB)×1280, WXGA 294PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 62.1(W)×110.4(H) mm |
| Bezel Opening | - |
| Outline Size | 64.5(W)×117.59(H)×0.4(D) mm |
| Brightness | 0 cd/m² |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Best View on | Symmetry |
| Glass Depth | 0.20+0.20 mm |
| Display Colors | 71%NTSC |
| Frequency | - |
| Weight | 7.40g |
| Surface | Without Polarizer |
| Contrast Ratio | 900:1 (Typ.) (TM) |
| Display Mode | Vistarich, Normally Black, Transmissive |
| Response Time | 37 (Typ.)(Tr+Td) |
| Transmissivity | 4.1% (Typ.)(with Polarizer) |
| Lamp Type | No B/L |
| Touch Screen | Without |
| Application | Mobile Phone |
| Driver IC | COGBuilt-in NT35520 |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
GP050GAILS0020V01 Delivery Tips:
1.When you place an order, please choose a shipping method and pay for the order including the shipping fee (freight does not include any customs duties and other customs charges).
2.Please fill out the complete consignee name, address, telephone number, zip code,tax number.
3.When the goods import into your country, at the time of delivery may produce some import tariffs and other customs fees because of the different national regulations, So the buyer will be responsible for tariffs and other customs fees. However, in our experience, this cost are rarely occur in small batch orders like us
GP050GAILS0020V01 Shipping and Package :
GP050GAILS0020V01 Packaging and Shipping:
1.Product will be shipped within 1-2 business day after full payment is received and verified.
2. The LCD Screen is packaged with high-quality hard paper, which has very high protection.
3. The transportation time is uncontrollable. Please wait patiently and continue to pay attention to the package dynamics. If you have any questions, please contact me immediately.
GP050GAILS0020V01 Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
GP050GAILS0020V01 Reminder :
Our price is not including any customs tax / fee in the destination . You need to pay some tax / fee or not , when the goods get Clearance Customs in the destination Customs , It depends the laws in the destination country .
There are many other high quality products in our store, we sincerely invite you add our store to your store list.
If you have any needs, pls don't hesitate to contact us, we will try our best to help you, hope you can have a happy shopping with us. Best regards!
GP050GAILS0020V01 FAQ:
Q: Can You declare my order of GP050GAILS0020V01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of GP050GAILS0020V01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of GP050GAILS0020V01 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of GP050GAILS0020V01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
