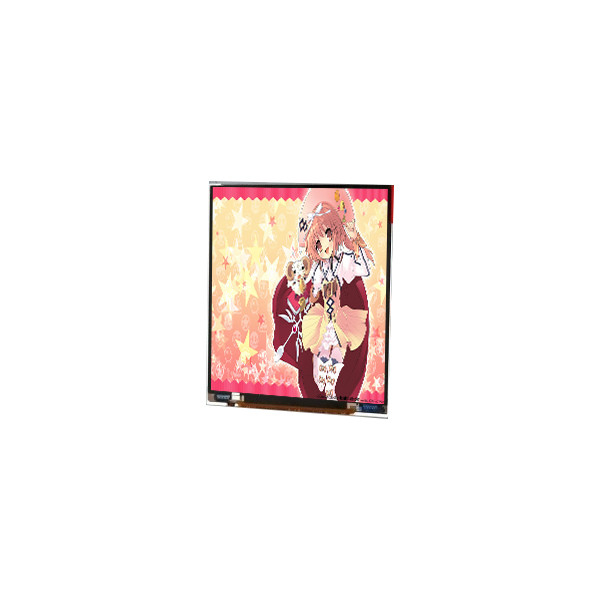

6.3 inch lcd panel LPM063Y425A 720*1280 LCD display module
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JDI |
| Model Number: | LPM063Y425A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Brand: | JDI | Model: | LPM063Y425A |
|---|---|---|---|
| Diagonal Size: | 6.3" | Type: | LTPS TFT-LCD, LCM |
| Pixel Format: | 720(RGB)×1280, WXGA 233PPI | Configuration: | RGB Vertical Stripe |
| Active Area: | 78.3(W)×139.2(H) Mm | Designed For: | Mobile Phone |
| Touch Screen: | PCAP, I²C | Signal Interface: | MIPI (4 Data Lanes), 40 PinsConnector |
Product Description
6.3 inch lcd panel LPM063Y425A 720*1280 LCD display module
LPM063Y425A Product details :
| Brand | JDI |
| Model P/N | LPM063Y425A |
| Diagonal Size | 6.3" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 720(RGB)×1280, WXGA 233PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 78.3(W)×139.2(H) mm |
| Bezel Opening | - |
| Outline Size | 81.7(W)×146.95(H) mm |
| Brightness | 450 cd/m² (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 71%NTSC |
| Frequency | 60Hz |
| Weight | 42.8g (Typ.) |
| Surface | Glare (Haze 0%), Hard coating (2H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 10/10 (Typ.)(Tr/Td) |
| Lamp Type | 7S2P WLED, Without Driver |
| Touch Screen | PCAP, I²C |
| Application | Mobile Phone |
| Signal Interface | MIPI (4 data lanes), 40 pinsConnector |
| Input Voltage | 1.8/5.0/-5.0V (Typ.)(IOVDD/AVDD/AVDD-) |
| Environment | Operating Temp.: -20 ~ 65 °C ;Storage Temp.: -30 ~ 80 °C |
