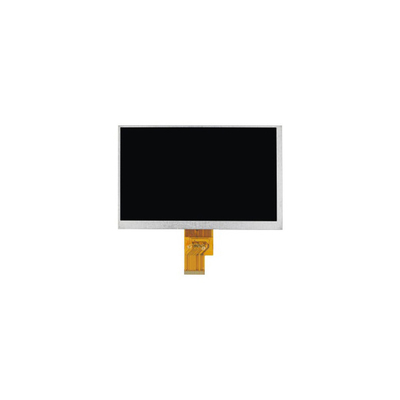

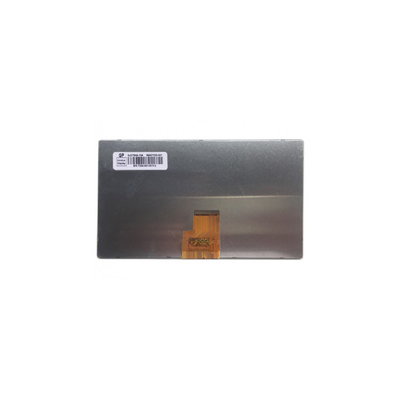

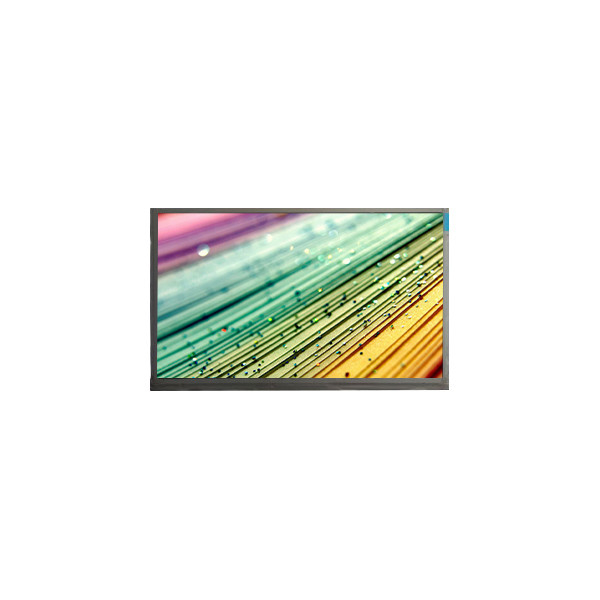

7.0 inch lcd panel HJ070NA-13A lcd screen 1024*600 lcd panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Innolux |
| Model Number: | HJ070NA-13A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | HJ070NA-13A | Panel Size: | 7.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 169PPI | Active Area: | 153.6(W)×90(H) Mm |
| Bezel Opening: | 156.4(W)×92.8(H) Mm | Outline Size: | 165.75(H)×105.39(V)×2.65(D) Mm |
| Light Source: | WLED, 15K Hours, W/O Driver | Application: | Pad & Tablet、Portable Navigation、Digital Photo Frame、Portable DVD Player、MID UMPC |
| Interface Type: | LVDS (1 Ch, 6/8-bit), 40 PinsFPC | Power Supply: | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
Product Description
7.0 inch lcd panel HJ070NA-13A lcd screen 1024*600 lcd panel
HJ070NA-13A Product details :
| Brand | Innolux |
| Model P/N | HJ070NA-13A |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×90(H) mm |
| Bezel Opening | 156.4(W)×92.8(H) mm |
| Outline Dim. | 165.75(H)×105.39(V)×2.65(D) mm |
| Treatment | Clear |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/75/75/75 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.7M 70%NTSC |
| Light Source | WLED, 15K hours, W/O Driver |
| Weight | 92.8g (Typ.) |
| Designed For | Pad & Tablet,Portable Navigation,Digital Photo Frame,Portable DVD Player,MID UMPC |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit), 40 pinsFPC |
| Power Supply | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -10 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
