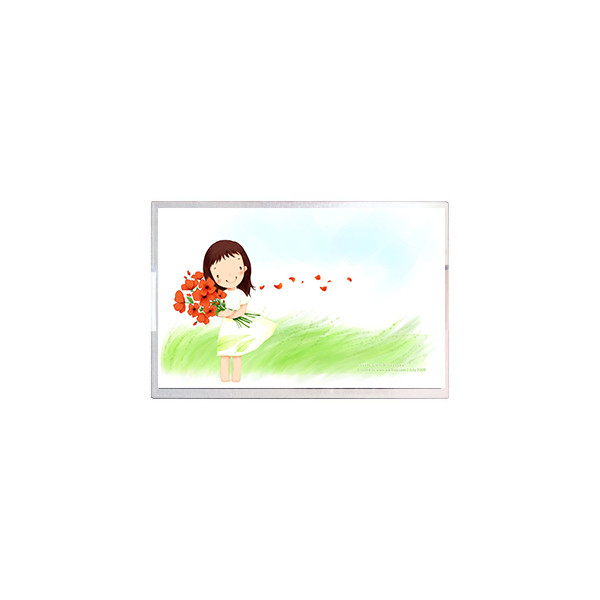

5.5 inch lcd panel TL055VYXP14 1080*1920 lcd display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TIANMA |
| Model Number: | TL055VYXP14 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TL055VYXP14 | Screen Size: | 5.5" |
|---|---|---|---|
| Pixel Number: | 1080(RGB)×1920, FHD 403PPI | Active Area(mm): | 68.04(W)×120.96(H) Mm |
| Outline(mm): | 70.04(W)×127.31(H)×0.5(D) Mm | Surface: | Without Polarizer |
| Best View On: | Symmetry | Used For: | Mobile Phone |
| Display Mode: | SFT, Normally Black, Transmissive | Contrast Ratio: | 1000:1 (Typ.) (TM) |
Product Description
5.5 inch lcd panel TL055VYXP14 1080*1920 lcd display
TL055VYXP14 Product details :
| Brand | TIANMA |
| Model P/N | TL055VYXP14 |
| Diagonal Size | 5.5" |
| Panel Type | LTPS TFT-LCD, CELL, Full Cell |
| Resolution | 1080(RGB)×1920, FHD 403PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×120.96(H) mm |
| Bezel Opening | - |
| Outline Size | 70.04(W)×127.31(H)×0.5(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | SFT, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Glass Depth | 0.25+0.25 mm |
| Transmissivity | - |
| Display Colors | 16.7M 70%NTSC |
| Lamp Type | No B/L |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COG Suggest R63315, NT35596, R63421, NT35595, HX8399A, OTM1902A |
| Panel Weight | TBD |
| Application | Mobile Phone |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
TL055VYXP14 Contact Us:
1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (Not include public holiday)
2. Working Hours: Monday to Saturday
3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.
4. Bulk order is acceptable, lower prices will be offered to you for bulk order.
TL055VYXP14 Shipping and Package :
TL055VYXP14 Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
TL055VYXP14 Shipping :
1, Shipping via China Post Registered Air Mail or ePacket.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 27 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
TL055VYXP14 Warranty :
1, We take 12 months warranty fromthe shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
TL055VYXP14 FAQ:
Q: Can you tested the TL055VYXP14 before shipping ?
A: Of course , our lcd panel TL055VYXP14 was Strictly tested before shipping.
Q: How to order TL055VYXP14 ?
A: We accept T/T , Paypal , western union .
Q: How long the warranty of the lcd TL055VYXP14 ?
A: 90 days .
Q: What happen if the lcd panel TL055VYXP14 I received can't work ?
A: TL055VYXP14 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
