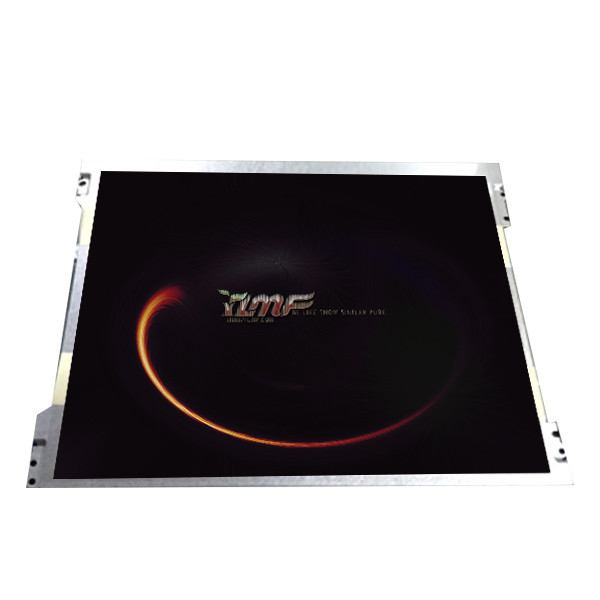

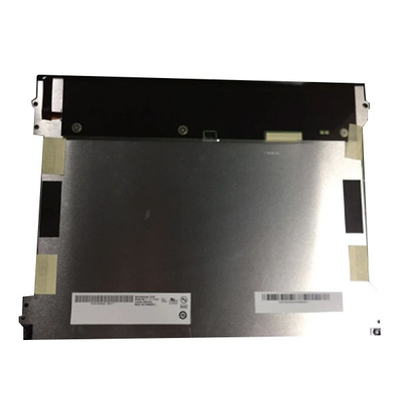

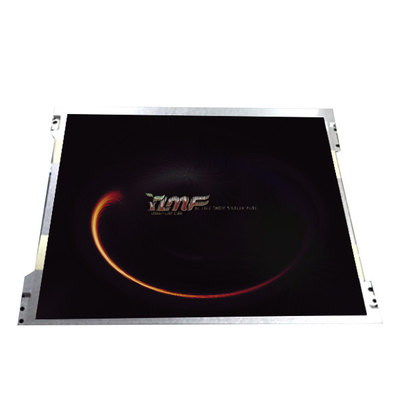

12.1 inch industrial lcd panel 105ppi LCD Display screen G121XN01 V1 new tested A+ grade
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | G121XN01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | G121XN01 V1 | Panel Size: | 12.1" |
|---|---|---|---|
| Resolution: | 1024(2)×768(2), XGA, 105PPI | Display Area: | 245.76(W)×184.32(H) Mm |
| Brightness: | 500 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
| Signal Interface: | EDP | Application: | Industrial |
Product Description
12.1 inch industrial lcd panel 105ppi LCD Display screen G121XN01 V1 new tested A+ grade
G121XN01 V1 Product details :
| AUO LCD SCREEN G121XN01 V1 | |
| Panel Brand | AUO |
| Panel Model | G121XN01 V1 |
| Panel Size | 12.1" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(2)×768(2), XGA, 105PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 245.76(W)×184.32(H) mm |
| Surface | Antiglare, |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 25/10 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | WLED , 50K hours |
| Frequency | 60Hz |
| Touch Screen | Without |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| 12.1 inch industrial lcd panel 105ppi LCD Display screen G121XN01 V1 new tested A+ grade | |
G121XN01 V1 Tips:
1. Lcd screen is fragile and high value, it's necessary and important to make a video when you unpack the package, and it will be a valid evidence when you receive damaged lcd screens or shortages.
2. Please test it before your installation. (Remember!!!)
3. If you are not good at replacing the LCD, please do it by a professional person or repair shop.
4. We test it 3 times before shipping out, if you can't provide video, we will not believe it. We are not responsible for any installation mistakes.
G121XN01 V1 Payment:
1.- Please make sure your payment account is available before you bid the item.
2.-All payments should be cleared within 7days after you receive the item.
If you really have difficulty in paying the item, please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
G121XN01 V1 Shipping and Package :
G121XN01 V1 Shipment:
Usually we will prepare and ship your goods within 5 business days.
The shipping charge doesn't include the import tax,buyer is responsible for custom duties.
Pls check if your item is in good condition upon receipt of it.
G121XN01 V1 Warranty:
1.- 90days' warranty.
2.-If the item is defective upon receipt, it should be within 7days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition)
3.-We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost( from us to your location); After 1 month of purchase, the buyer need to pay two ways of shipping cost.
4.- One we get the returned items, we will send the replaced ones back as soon as possible.
5.-Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation on the parts
G121XN01 V1 FAQ:
Q: How can I trace my order of G121XN01 V1 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long will I receive my goods G121XN01 V1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of G121XN01 V1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of G121XN01 V1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
