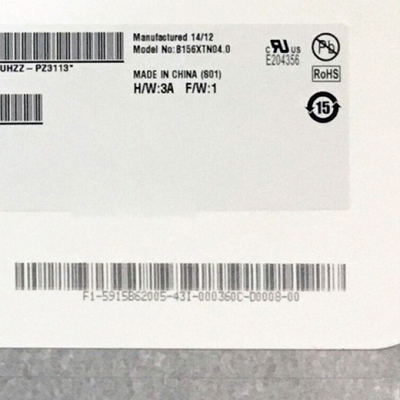

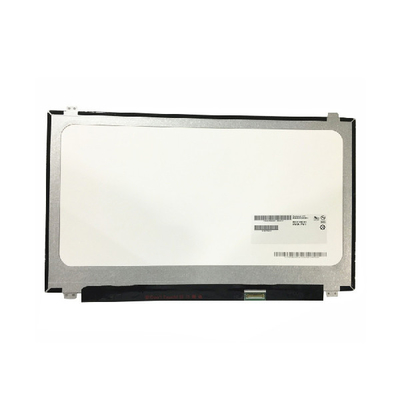

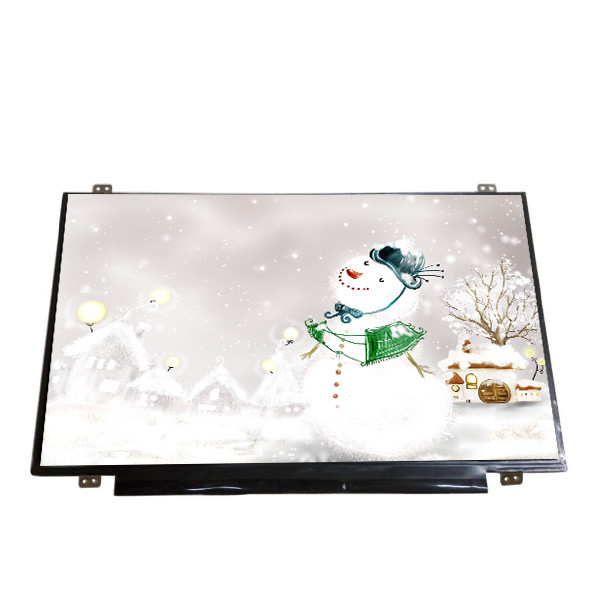

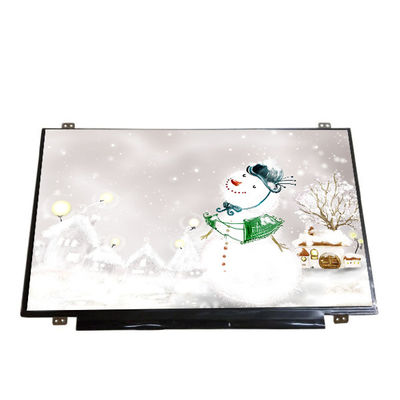

AUO Vertical Stripe 15.6 Inch LCD Pane B156XTN04.0 30PINS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156XTN04.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | B156XTN04.0 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768 WXGA 100PPI | Active Area: | 344.232 × 193.536 Mm (H×V) |
| Outline Dim.: | 359.3 × 223.8 × 3.8mm (H×V×D) | Viewing Angle: | Slim (PCBA Flat, T≤3.2mm) |
| Number Of Colors: | 262K , 45% NTSC | Designed For: | Laptop |
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156XTN04.0 30PINS
B156XTN04.0 Product details :
| AUO LCD SCREEN B156XTN04.0 | |
| Panel Brand | AUO |
| Panel Model | B156XTN04.0 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 WXGA 100PPI |
| Pixel Format | RGB vertical bars |
| Display Area | 344.232 × 193.536 mm (H×V) |
| Bezel Opening | 346.2 × 195.5 mm (H×V) |
| Outline Size | 359.3 × 223.8 × 3.8mm (H×V×D) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td) |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Frequency | 60Hz |
| Application | Laptop |
| Touch Screen | Without |
| Signal Interface | 30 pins eDP (1 Lane) , eDP1.2 , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156XTN04.0 30PINS | |
B156XTN04.0 NOTE:
1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
•3-->The LCD model name in your hand, such as: LM140LF1L02
•4-->Your notebook computer name, such as: brand,specific model
•5-->Send the above information to us, we will reply you with fast and correct transaction within 24 hours, thank you!
B156XTN04.0 Note:
1: This product is a display screen, which needs to be installed by professionals. Please purchase with caution, thank you!
2: Purchasing this product, according to the buyer's choice of logistics, we will send it out within 48 hours, if there is a delay, please wait for the tracking information to prevail!
3: After receiving the product, if there is a problem, please contact customer service to solve it!
B156XTN04.0 Packing:
The screen will be wrapped with Cardboard, and put in a super hard Box to make sure it is 100% safe. And we will put a protected film onto the screen to protect it from Scratches.
B156XTN04.0 Shipping details:
1. We support shipment by AliExpress Standard Shipping ,ePacket, Singapore Post, e-EMS, DHL etc. If you want to select a fast and reliable shipping company, please feel free to contact us directly after paying.
2. Shipping time: We will ship your goods in 1-2 days after confirming the screen is suitable for your laptop. So please tell us the model of your laptop or screen quickly so that we can ship your goods as soon as possible.
3. General arrived time:
1)Expited Shipping:
DHL,UPS,TNT,Fedex,to worldwide 3-7 Days.
2)Standard Shipping Method:
European Countres : Russia,Spain,UK,France,Netherlands etc 10-20 days
North Ameriacan Countries: USA,Canada, etc 7-20 days.
Asia Countries:Singapore,Malaysia,Japan,India,etc 13-20 days
Other Remote Countries: 25-35 days
B156XTN04.0 After-Sale:
If you have any problem after receiving your goods, don't give bad feedback first, please provide us with the proof of video or photo about the problems of your goods, we will offer replacement immediately or refund after confirming the problem.
If you have any questions in the process of purchase, please feel free to contact us. We will reply immediately.
B156XTN04.0 Return:
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
B156XTN04.0 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Do you accept the B156XTN04.0 sample order?
A: Yes , sample order is welcome.
Q: Can you test the lcd panel B156XTN04.0 before shipping ?
A: Of Course . You can take a rest that our lcd panel will be tested ok before shipping.
Q: How long is the warranty of AUO LCD B156XTN04.0 ?
A: 90DAYS.
Q: How long will I receive my goods of lcd B156XTN04.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
