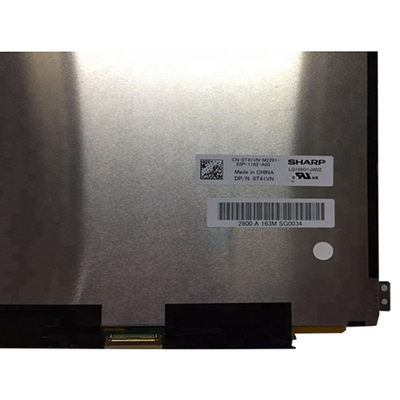

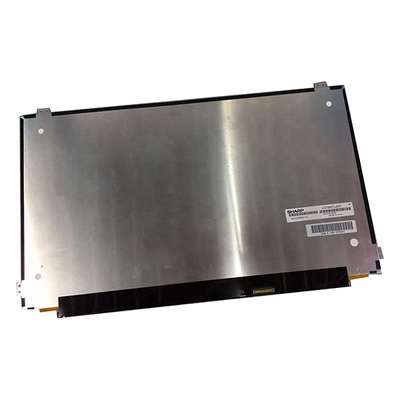

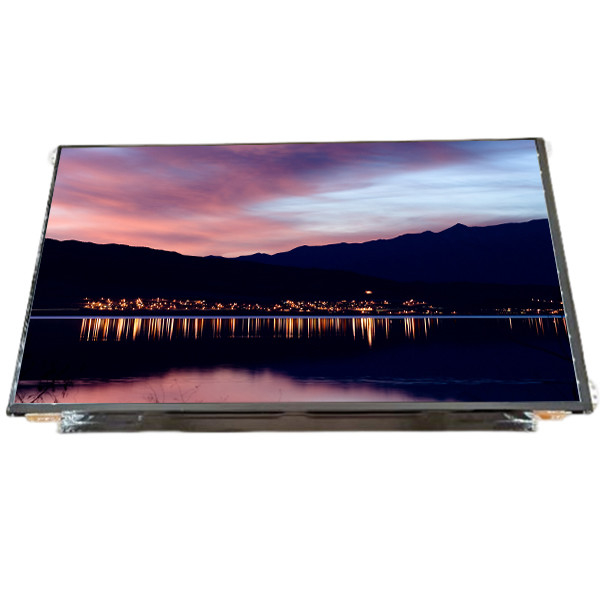

Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156D1JX05 LCD Display Laptop Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Sharp |
| Model Number: | LQ156D1JX05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LQ156D1JX05 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 3840(RGB)×2160(UHD) 282PPI | Active Area: | 345.6 × 194.4 Mm (H×V) |
| Outline Dim.: | 354.78 × 204.96 × 0.824 Mm (H×V×D) | Viewing Angle: | 88/88/88/88 (Typ.) (CR≥10) |
| Number Of Colors: | 16.7M , 72% NTSC | Designed For: | Laptop |
Product Description
Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156D1JX05 LCD Display Laptop Screen
LQ156D1JX05 Product details :
| Sharp LCD Screen LQ156D1JX05 (SHP145F) | |
| Panel Brand | Sharp |
| Panel Model | LQ156D1JX05 (SHP145F) |
| screen size | 15.6 inches |
| Panel Type | CELL , Oxide TFT-LCD |
| Resolution | 3840(RGB)×2160 (UHD) 282PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 345.6 × 194.4 mm (H×V) |
| Outline Size | 354.78 × 204.96 × 0.824 mm (H×V×D) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Display brightness | 0 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (Transmission) |
| Viewing Angle | 88/88/88/88 (Typ.) (CR≥10) |
| Good View at | Symmetry |
| Reaction time | 25 (Typ.)(Tr+Td) ms |
| Optical mode | IPS, Normally Black, Transmissive |
| Glass Thickness | 0.30+0.30 mm |
| Transmissivity | 3% (Typ.)(with Polarizer) |
| Number of colors | 16.7M , 72% NTSC |
| Backlight type | no backlight |
| Frequency | 60Hz |
| Touchscreen | Without |
| Used for | Laptop |
| Signal | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156D1JX05 LCD Display Laptop Screen | |
LQ156D1JX36 Attention before buying:
To avoid mistakes, please send us your screen backside photo or laptop model label photo after placing an order. We will ship your goods as soon as possible after confirming the screen is suitable for your laptop
LQ156D1JX05 Product Description:
1: To Repair for Faulty Screen, Dead Pixels , Touch is not sensitive, Cracked Broken Touch Screen Problems.
2: Full Tested 100% Working By Real equipment before Shipping
3: Not supply the disassembly installation instructions and Tools
4: Please match your original screen with the image & description we have provided in this listing. If not sure. Contact with us to Confirm
5: We reserve the right to ship COMPATIBLE screens (part # or manufacturers may not be the same but 100% compatibility is guaranteed)
LQ156D1JX05 Packing:
The screen will be wrapped with Cardboard, and put in a super hard Box to make sure it is 100% safe. And we will put a protected film onto the screen to protect it from Scratches.
LQ156D1JX05 Shipping details:
1. We support shipment by AliExpress Standard Shipping ,ePacket, Singapore Post, e-EMS, DHL etc. If you want to select a fast and reliable shipping company, please feel free to contact us directly after paying.
2. Shipping time: We will ship your goods in 1-2 days after confirming the screen is suitable for your laptop. So please tell us the model of your laptop or screen quickly so that we can ship your goods as soon as possible.
3. General arrived time:
1)Expited Shipping:
DHL,UPS,TNT,Fedex,to worldwide 3-7 Days.
2)Standard Shipping Method:
European Countres : Russia,Spain,UK,France,Netherlands etc 10-20 days
North Ameriacan Countries: USA,Canada, etc 7-20 days.
Asia Countries:Singapore,Malaysia,Japan,India,etc 13-20 days
Other Remote Countries: 25-35 days
LQ156D1JX05 After-Sale:
If you have any problem after receiving your goods, don't give bad feedback first, please provide us with the proof of video or photo about the problems of your goods, we will offer replacement immediately or refund after confirming the problem.
If you have any questions in the process of purchase, please feel free to contact us. We will reply immediately.
LQ156D1JX05 Return:
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
LQ156D1JX05 FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: How to order Sharp LCD LQ156D1JX05 ?
A: We accept T/T , Paypal , western union .
Q: Can you tested the LQ156D1JX05 before shipping ?
A: Of course , our lcd panel LQ156D1JX05 was Strictly tested before shipping.
Q: What happen if the lcd panel LQ156D1JX05 received can't work ?
A: Sharp LQ156D1JX05 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
LQ156D1JX05 Shipping and Package :
