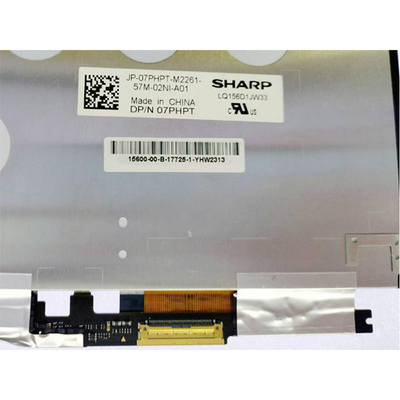

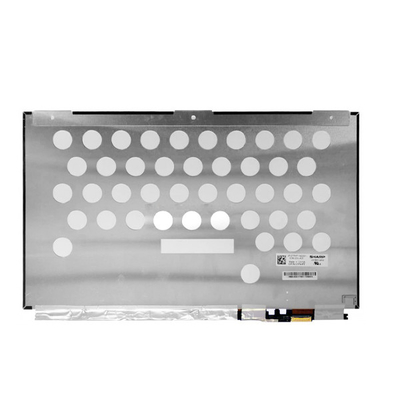

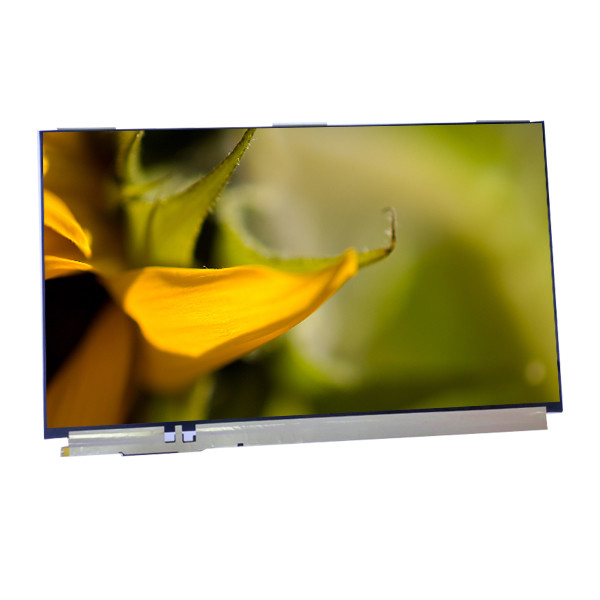

Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156D1JW33 3840*2160 40pin laptop
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Sharp |
| Model Number: | LQ156D1JW33 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LQ156D1JW33 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 3840(RGB)×2160(UHD) 282PPI | Active Area: | 345.6 × 194.4 Mm (H×V) |
| Outline Dim.: | 351.9 × 220.2 × 2.8 Mm (H×V×D) | Viewing Angle: | 89/89/89/89 (Typ.) (CR≥10) |
| Number Of Colors: | 16.7M , 100% SRGB | Designed For: | Laptop |
Product Description
Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156D1JW33 3840*2160 40pin laptop
LQ156D1JW33 Product details :
| Sharp LCD Screen LQ156D1JW33 (SHP1476) | |
| Panel Brand | Sharp |
| Panel Model | LQ156D1JW33 (SHP1476) |
| screen size | 15.6 inches |
| Panel Type | LCM, Oxide TFT-LCD |
| Resolution | 3840(RGB)×2160(UHD) 282PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 345.6 × 194.4 mm (H×V) |
| physical dimension | 351.9 × 220.2 × 2.8 mm (H×V×D) |
| surface | Matte (Haze 42%), Hard coating (3H) |
| Display brightness | 350 (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmission) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Reaction time | 30(Typ.)(Tr+Td) ms |
| Optical mode | IPS, Normally Black, Transmissive |
| Number of colors | 16.7M , 100% sRGB |
| Backlight type | WLED , 12K hours, with LED driver |
| refresh rate | 60Hz |
| Panel weight | Without |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Signal | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| drive voltage | 3.3V (Typ.) |
| working | Operating: 0 ~ 50 °C ; Storage: -20 ~ 60 °C |
| Sharp Vertical Stripe 15.6 Inch LCD Pane LQ156D1JW33 3840*2160 40pin laptop | |
LQ156D1JW33 Attention before buying:
To avoid mistakes, please send us your screen backside photo or laptop model label photo after placing an order. We will ship your goods as soon as possible after confirming the screen is suitable for your laptop
LQ156D1JW33 Product Description:
1: To Repair for Faulty Screen, Dead Pixels , Touch is not sensitive, Cracked Broken Touch Screen Problems.
2: Full Tested 100% Working By Real equipment before Shipping
3: Not supply the disassembly installation instructions and Tools
4: Please match your original screen with the image & description we have provided in this listing. If not sure. Contact with us to Confirm
5: We reserve the right to ship COMPATIBLE screens (part # or manufacturers may not be the same but 100% compatibility is guaranteed)
LQ156D1JW33 HW1A Packing:
The screen will be wrapped with Cardboard, and put in a super hard Box to make sure it is 100% safe. And we will put a protected film onto the screen to protect it from Scratches.
LQ156D1JW33 Shipping details:
1. We support shipment by AliExpress Standard Shipping ,ePacket, Singapore Post, e-EMS, DHL etc. If you want to select a fast and reliable shipping company, please feel free to contact us directly after paying.
2. Shipping time: We will ship your goods in 1-2 days after confirming the screen is suitable for your laptop. So please tell us the model of your laptop or screen quickly so that we can ship your goods as soon as possible.
3. General arrived time:
1)Expited Shipping:
DHL,UPS,TNT,Fedex,to worldwide 3-7 Days.
2)Standard Shipping Method:
European Countres : Russia,Spain,UK,France,Netherlands etc 10-20 days
North Ameriacan Countries: USA,Canada, etc 7-20 days.
Asia Countries:Singapore,Malaysia,Japan,India,etc 13-20 days
Other Remote Countries: 25-35 days
LQ156D1JW33 HW1A FAQ:
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
LQ156D1JW33 Shipping and Package :
