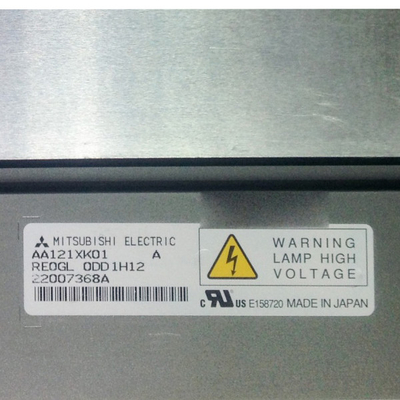

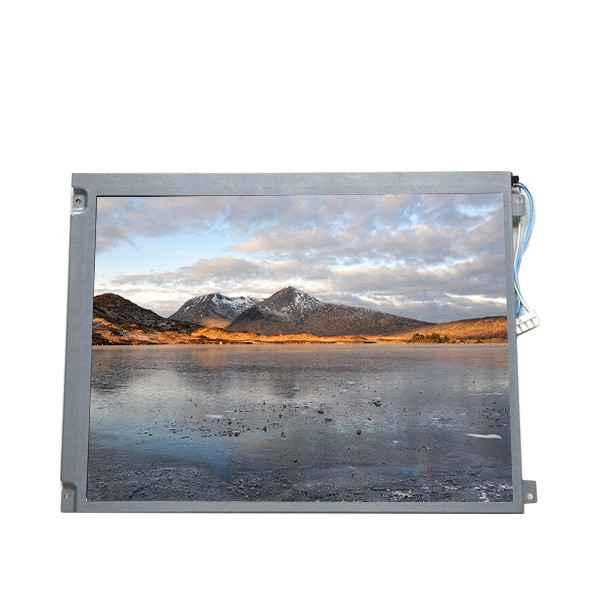

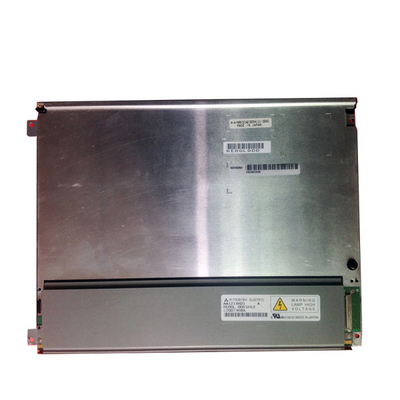

AA121XK01 Mitsubishi 12.1 inch industrial lcd panel 105ppi lcd display module
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Mitsubishi |
| Model Number: | AA121XK01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | AA121XK01 | Diagonal Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Format: | 1024(RGB)×768 [XGA] 105PPI | Active Area: | 245.76(H)×184.32(V) Mm |
| Outline Dim.: | 280(H)×210(V)×12.5(D) Mm | Bezel Area: | 249.0(H)×187.5(V) Mm |
| Weight: | 750g (Typ.) | Designed For: | Industrial |
Product Description
AA121XK01 Mitsubishi 12.1 inch industrial lcd panel 105ppi lcd display module
AA121XK01 Product details :
| Mitsubishi LCD SCREEN AA121XK01 | |
| Manufacturer | Mitsubishi |
| Model Name | AA121XK01 |
| Screen Size | 12.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×768 (XGA) 105PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 245.76 × 184.32 (H×V) |
| Outline(mm) | 280 × 210 × 12.5 (H×V×D) |
| Bezel Area(mm) | 249.0 × 187.5 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Response | 6/19 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K/16.7M 40% NTSC |
| Backlight | 2 strings WLED , 100K hours , No Driver |
| Mass | 750g (Typ.) |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| AA121XK01 Mitsubishi 12.1 inch industrial lcd panel 105ppi lcd display module | |
AA121XK01 Note:
Please note color needed before buying,If the color is not marked, we will send it at random. If you are not satisfied after receiving the goods, you can return and change the goods.But buyer have to pay for the round-trip transportation shipping fee, Please read the product description carefully,thank you!
AA121XK01 Terms of Payment:
Payment is safe and convenient. You can pay by credit card (VISA or Mastercard) or other credit card online
AA121XK01 Shipping and Package :
AA121XK01 Shipping information:
1.All items are in stock and are dispatched to you within 3 days after your payment.
2.Please note that items purchased on holiday are dispatched the next working day.
3.If you have not receive the goods within 30 working days after payment for China post or other, please contact us.We will track the parcel from our agent and reply you ASAP.
4.You can choose China post, ePack,EMS,DHL,UPS etc base on your needs.
5.Any other questions or problems please feel free to contact me.
AA121XK01 About Warranty:
1.6 months. Buy with confidence!
2.If item is defective in 3 months, we will send you a replacement without extra charger, or offer refund after we receive the defective item.
3.If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee.
AA121XK01 FAQ:
Q: If I place order now,when will you ship the goods of AA121XK01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of AA121XK01 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How to make payment of AA121XK01 ?
A: We accept T/T , Paypal , western union .
