Sharp Vertical Stripe 15.6 Inch LCD Pane 3840*2160 40 pin Laptop LQ156D1JX01B
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Sharp |
| Model Number: | LQ156D1JX01B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LQ156D1JX01B | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 FHD 141PPI | Active Area: | 344.16(H)×193.59(V) Mm |
| Outline Dim.: | 359.5(H)×223.8(V) ×3.2(D) Mm | Viewing Angle: | 88/88/88/88 (Typ.) (CR≥10) |
| Number Of Colors: | 16.7M , 100% Adobe RGB | Designed For: | Laptop |
Product Description
Sharp Vertical Stripe 15.6 Inch LCD Pane 3840*2160 40 pin Laptop LQ156D1JX01B
LQ156D1JX01B Product details :
| Sharp LCD Screen LQ156D1JX01B (SHP142A) | |
| Panel Brand | Sharp |
| Panel Model | LQ156D1JX01B (SHP142A) |
| screen size | 15.6 inches |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 3840(RGB)×2160(UHD) 282PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 345.6(H)×194.4(V) mm |
| Outline Dim. | 367.98(H)×224.56(V)×3.4(D) mm |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Display brightness | 330 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (Transmission) |
| Viewing Angle | 88/88/88/88 (Typ.) (CR≥10) |
| Best View on | Symmetry |
| Reaction time | 25 (Typ.)(Tr+Td) ms |
| Optical mode | IPS, Normally Black, Transmissive |
| Number of colors | 16.7M , 100% Adobe RGB |
| Backlight type | WLED , 10K hours, with LED driver |
| Designed For | Laptop |
| refresh rate | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal | 40 pins eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , terminal |
| drive voltage | 3.3V (Typ.) |
| working | Operating: 0 ~ 50 °C ; Storage: -20 ~ 60 °C |
| Sharp Vertical Stripe 15.6 Inch LCD Pane 3840*2160 40 pin Laptop LQ156D1JX01B | |
LQ156D1JX01B Attention before buying:

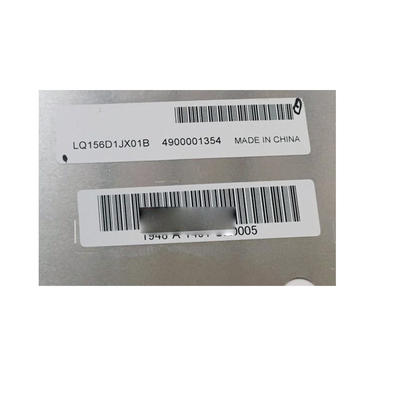

To avoid mistakes, please send us your screen backside photo or laptop model label photo after placing an order. We will ship your goods as soon as possible after confirming the screen is suitable for your laptop
LQ156D1JX01B Product Description:
1: To Repair for Faulty Screen, Dead Pixels , Touch is not sensitive, Cracked Broken Touch Screen Problems.
2: Full Tested 100% Working By Real equipment before Shipping
3: Not supply the disassembly installation instructions and Tools
4: Please match your original screen with the image & description we have provided in this listing. If not sure. Contact with us to Confirm
5: We reserve the right to ship COMPATIBLE screens (part # or manufacturers may not be the same but 100% compatibility is guaranteed)
LQ156D1JX01B Packing:
The screen will be wrapped with Cardboard, and put in a super hard Box to make sure it is 100% safe. And we will put a protected film onto the screen to protect it from Scratches.
LQ156D1JX01B About Shipping:
We will test them strictly before shipping.
we will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
LQ156D1JX01B Regarding tariffs and receipts:
*The buyer is responsible for the customs duties at the destination. If your budget does not allow tariffs, please avoid express delivery (DHL, FEDEX, EMS).
*If you do not receive the package within 30 days, please contact us. If unclaimed within 15-30 days, the package will be returned.
LQ156D1JX01B FAQ:
Q: How do you ship my goods LQ156D1JX01B ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of lcd display screen LQ156D1JX01B at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty of LQ156D1JX01B ?
A: 90 days warranty .
