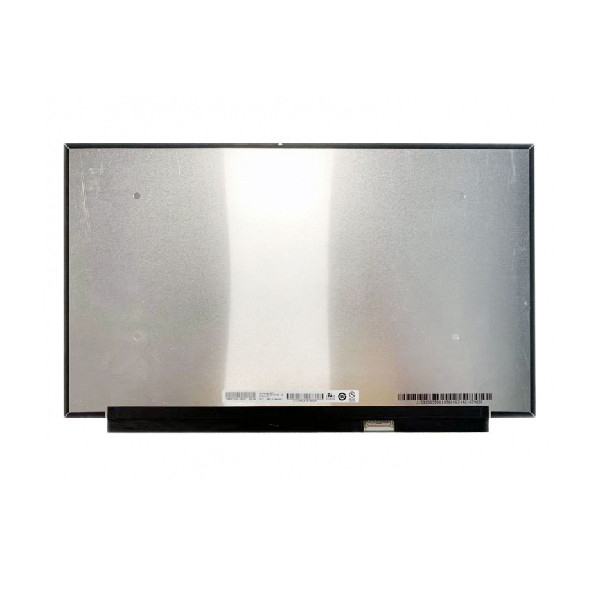

AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN09.0 1920*1080 141 PPI
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HAN09.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156HAN09.0 | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Resolution: | 1920(RGB)×1080, FHD, 141PPI |
| Display Area: | 344.16 X 193.59(mm) | Outline Size: | 349.16(W)×215.4(H)×2.6(D) Mm |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Application: | Laptop |
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN09.0 1920*1080 141 PPI
B156HAN09.0 Product details :
| AUO LCD SCREEN B156HAN09.0 | |
| Panel Brand | AUO |
| Panel Model | B156HAN09.0 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 FHD 141PPI |
| Pixel Format | RGB vertical bars |
| Display Area | 344.16(W)×193.59(H) mm |
| Outline Size | 349.16(W)×215.4(H)×2.6(D) mm |
| Treatment | Glare (Haze 0%) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 16.7M , 100% sRGB |
| Lamp Type | WLED , 15K hours, with LED driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Frequency | 60Hz |
| Used for | Laptop |
| Touch Screen | Without |
| Signal Interface | eDP (2 Lanes) , eDP1.4 , 30 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN09.0 1920*1080 141 PPI | |
B156HAN09.0 Advantages about us:
1. The LCD screens you buy are all 100% original authentic.
2. Our goods inventory is very sufficient and shipped within 24 hours.
3. Purchase on the same day, there will be a small gift!
4. The customer installs independently and provides installation instructions.
5. Our packaging is professionally customized and very safe! Each package will have a fragile label
6. Product grade provides A grade (perfect) and B grade (defective, imperfect) Meet various customer needs
7. We provide professional after-sales service, serve customers 24 hours a day, and provide a 90-day warranty (calculated from the time the goods arrive at the destination)
B156HAN09.0 Top Quality:
All screens are New&Original with original factory sealed package
Fully Testing make sure every screen you got is work perfec
B156HAN09.0 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
B156HAN09.0 About guarantee:
1: The product is damaged during the warranty period, we can replace it for free or get a full refund. For some high-value products, the buyer needs to return the package to us.
2: Please do not raise disputes at will and give us negative feedback. Otherwise, you will lose the warranty. If the product has any problems, we will try our best to solve the problem and provide good after-sales service. Please keep in touch with us.
B156HAN09.0 FAQ:
Q: Can I pay my goods B156HAN09.0 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods B156HAN09.0 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: How long will I receive my goods of B156HAN09.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of B156HAN09.0 ?
A: Of course!If you make a large order, we will give you a discount.
B156HAN09.0 Shipping and Package :
