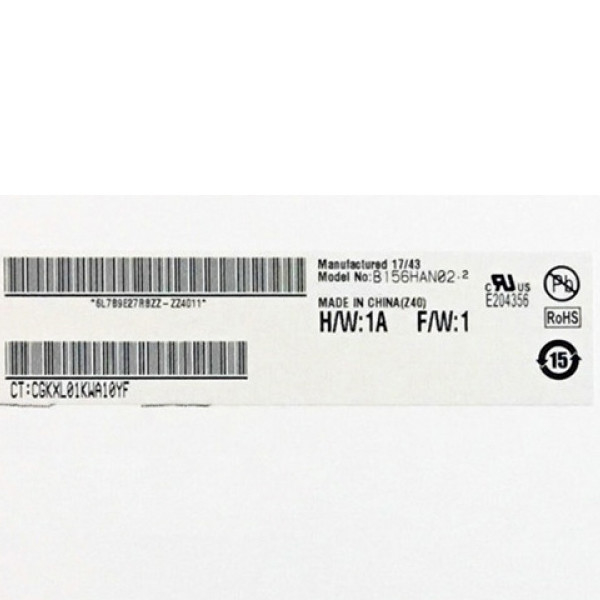

AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN02.2 HW1A 30pins Laptop LCD SCREEN
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HAN02.2 HW1A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156HAN02.2 HW1A | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Resolution: | 1920(RGB)×1080, FHD, 141PPI |
| Display Area: | 344.16 X 193.59(mm) | Outline Size: | 350.66 X 216.15 X 3.2(mm) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Application: | Laptop |
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN12.0 1920*1080 141PPI
B156HAN02.2 HW1A Product details :
| AUO LCD SCREEN B156HAN02.2 HW1A (AUO22ED) | |
| Brand | AUO |
| Model Name | B156HAN02.2 HW1A (AUO22ED) |
| Screen size | 15.6" |
| Screen type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080 [FHD] 141PPI |
| Pixel arrangement | RGB vertical bar |
| Display size | 344.16(W)×193.59(H) mm |
| Physical dimension | 350.56(W)×216.15(H) ×3.2(D) mm |
| Surface treatment | Glare (Haze 0%) |
| Display brightness | 220 cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (transmission) |
| Optical mode | AHVA, normally black display, transmissive |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Number of | 262K , 45% NTSC |
| Backlight type | WLED, 15K hours, with LED driver |
| Apply to | Laptop |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Refresh rate | 60Hz |
| Touch Screen | Without |
| Interface Type | eDP (2 Lanes), eDP1.2, 30 pins, connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN02.2 HW1A 30pins Laptop LCD SCREEN | |
